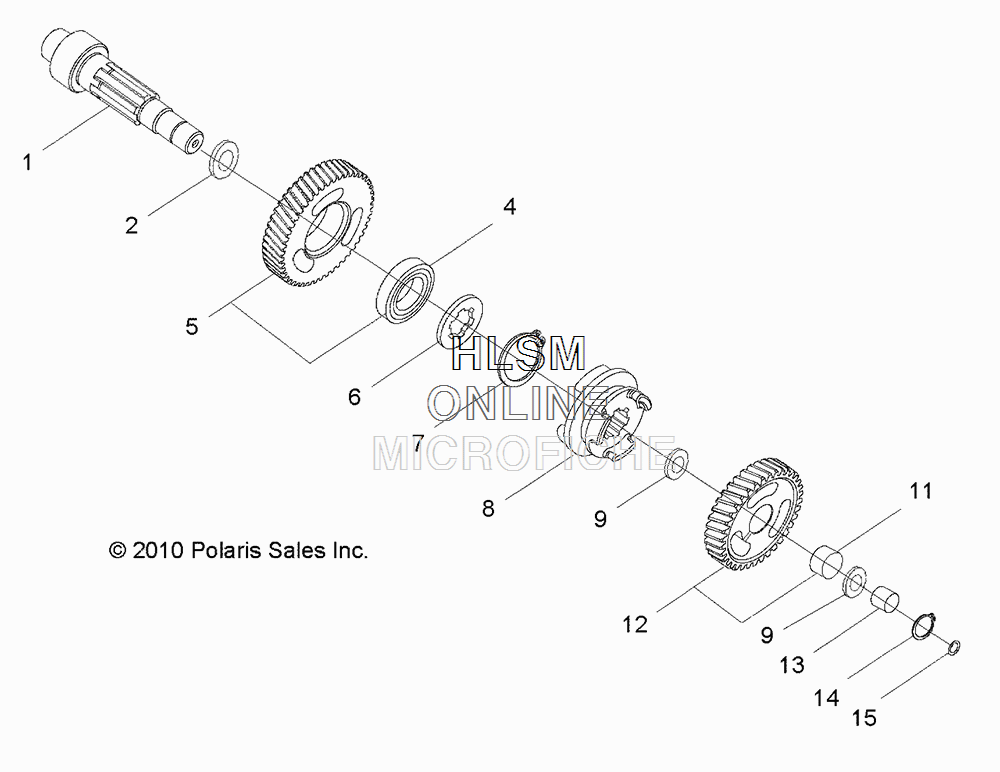

TRANSMISSION - DRIVE CHAIN для Polaris RZR 170 EFI (VOODOO BLUE) [Z17YAV17A5/N5] - 2017 года выпуска
-
№АртикулНазвание
-
10454324 SHAFT, TRANSMISSIONSHAFT, TRANSMISSION
-
20452522 WASHER, FLATWASHER, FLAT
-
40452521 BEARING, NEEDLEBEARING, NEEDLE
-
50452519 ASM., REVERSE GEAR (INCL. 4)ASM., REVERSE GEAR (INCL. 4)
-
60452518 WASHER, SPLINEWASHER, SPLINE
-
70452789 RING, RETAININGRING, RETAINING
-
80452517 RATCHET, SHIFTRATCHET, SHIFT
-
90452513 WASHER, FLATWASHER, FLAT
-
110452516 BUSHING, SPUR GEARBUSHING, SPUR GEAR
-
120454229 ASM., SPUR GEAR (INCL. 11)ASM., SPUR GEAR (INCL. 11)
-
130453120 COLLAR, SHAFTCOLLAR, SHAFT
-
140450187 CLIP, CIR, EXTERNALCLIP, CIR, EXTERNAL
-
150452524 WASHER, FLATWASHER, FLAT
