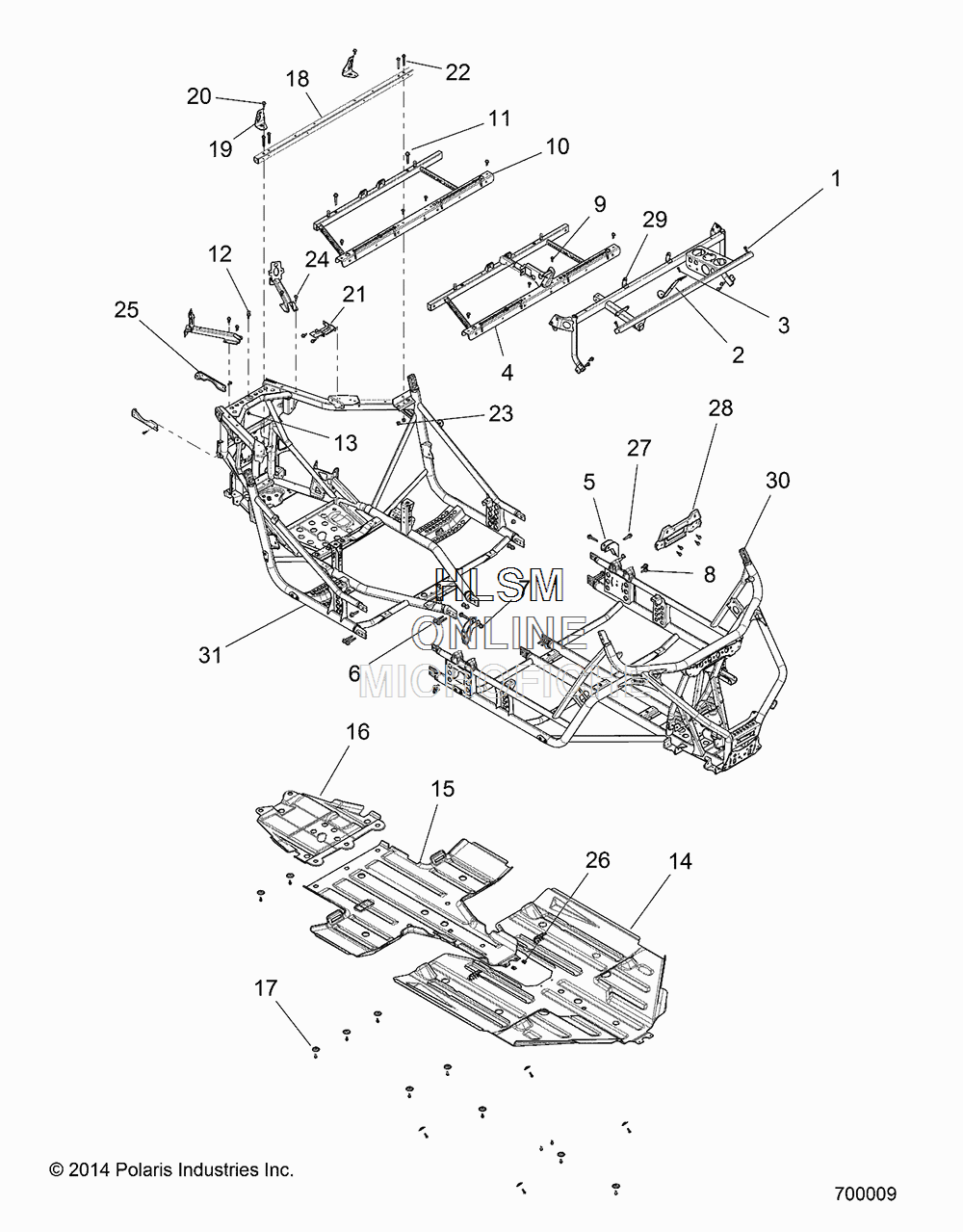

FRAME-MAIN W/ SKID PLATE для Polaris RZR 4 900 EPS (VELOCITY BLUE) [Z17VCE87AB] - 2017 года выпуска
-
№АртикулНазвание
-
17518555 BOLT-M8X1.25X20, HXFLGBOLT-M8X1.25X20, HXFLG
-
25257304-329 BRKT-DIN MNT, BLACKBRKT-DIN MNT, BLACK
-
37518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
41020572-329 WELD-SEAT BASE, MP, BLACKWELD-SEAT BASE, MP, BLACK
-
55258097-329 BRKT-SEAT SUPPORT, FRT, MP, BLACKBRKT-SEAT SUPPORT, FRT, MP, BLACK
-
67519285 SCR-HXFL-M10X1.25X55 10.9 ZODSCR-HXFL-M10X1.25X55 10.9 ZOD
-
77547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
87518934 SCR-M10X1.5X25-8.8 HFS ZODSCR-M10X1.5X25-8.8 HFS ZOD
-
97519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
101019777-329 WELD-SEAT BASE, REAR, BLACKWELD-SEAT BASE, REAR, BLACK
-
117518474 BOLT-M10X1.5X55, HX HD FLGBOLT-M10X1.5X55, HX HD FLG
-
125139009 PLUNGER-BOX LATCHPLUNGER-BOX LATCH
-
137547339 NUT-M6X1.0, FLG-NYLOC-OLIVE DNUT-M6X1.0, FLG-NYLOC-OLIVE D
-
145451895-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
155439771-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
165450706-070 PLATE-SKID, REAR, BLACKPLATE-SKID, REAR, BLACK
-
177556065 WASHER-SKID PLATEWASHER-SKID PLATE
-
181022849-329 ASM-TUBE, TOP FRAME, E-COATASM-TUBE, TOP FRAME, E-COAT
-
195259103-458 TIEDOWN, FRONT, LEFT HAND, MATTE BLACKTIEDOWN, FRONT, LEFT HAND, MATTE BLACK
-
205263590-458 TIEDOWN, FRONT, RIGHT HAND, MATTE BLACKTIEDOWN, FRONT, RIGHT HAND, MATTE BLACK
-
215259105-329 MOUNT, COIL, E-COATMOUNT, COIL, E-COAT
-
227517281 SCR-M8X1.25X55, HX/FL-YSCR-M8X1.25X55, HX/FL-Y
-
237547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
241020506-458 WELD-MOUNT, BODY, MATTE BLACKWELD-MOUNT, BODY, MATTE BLACK
-
255259106 BRKT-FACIABRKT-FACIA
-
267547674 NUT-M6-1.0, U-TYPE (2.5-3.8)NUT-M6-1.0, U-TYPE (2.5-3.8)
-
277519332 SCR-HXFL-M10X1.25X40 8.8 ZODSCR-HXFL-M10X1.25X40 8.8 ZOD
-
285259449-458 BRKT-SUSP MNT, FRT, MATTE BLACKBRKT-SUSP MNT, FRT, MATTE BLACK
-
291020984-329 WELD-DASH, E-COAT BLACKWELD-DASH, E-COAT BLACK
-
301022686-458 WELD-MAINFRAME, FRT, MP, SWY, MATTE BLACKWELD-MAINFRAME, FRT, MP, SWY, MATTE BLACK
-
311022388-458 WELD-MAINFRAME, REAR, MATTE LACKWELD-MAINFRAME, REAR, MATTE LACK
