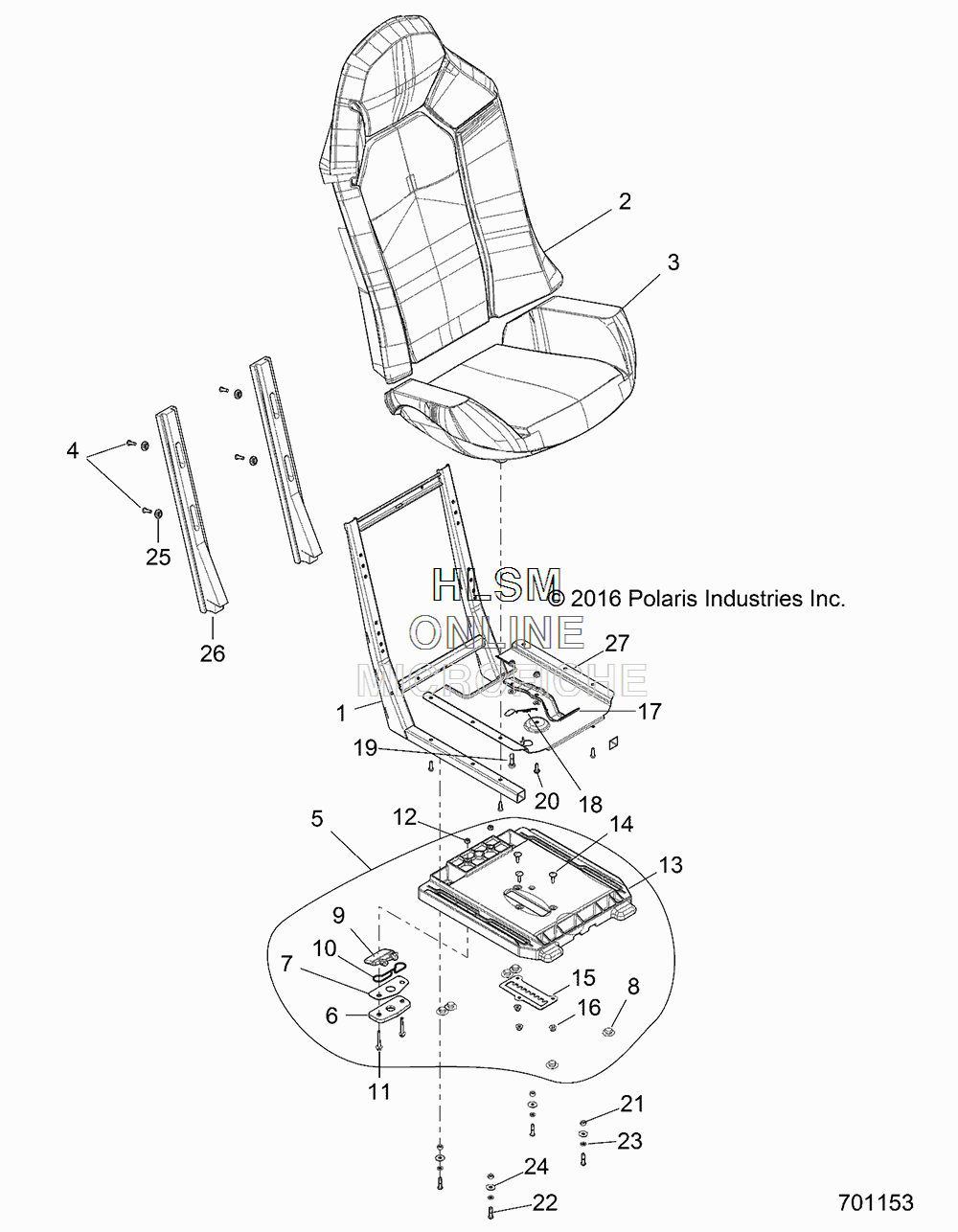

SEAT ASM. AND SLIDER для Polaris RZR 4 900 EPS (VELOCITY BLUE) [Z17VCE87AB] - 2017 года выпуска
-
№АртикулНазвание
-
11021289 FRAME, SEATFRAME, SEAT
-
22687283 ASM-SEAT BACK, BLACK/VELOCITY BLUEASM-SEAT BACK, BLACK/VELOCITY BLUE
-
32687286 ASM-SEAT BTM, BLACK/VELOCITY BLUEASM-SEAT BTM, BLACK/VELOCITY BLUE
-
47515177 SCREWSCREW
-
52634889 ASM-BASE, SEAT (INCL. 6-10, 12-16)ASM-BASE, SEAT (INCL. 6-10, 12-16)
-
52685704 ASM., BASE, SEAT SLIDER (INCL. 6-10, 12-15 QTY 6 OF 16)ASM., BASE, SEAT SLIDER (INCL. 6-10, 12-15 QTY 6 OF 16)
-
65450510-070 LATCH, COVER PLATE, BLACKLATCH, COVER PLATE, BLACK
-
75258647 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
85413441 GROMMET, SEAT BASEGROMMET, SEAT BASE
-
95437121 LEVER, LATCH, SEATLEVER, LATCH, SEAT
-
107081466 SPRING, LATCH, SEATSPRING, LATCH, SEAT
-
117517610 SCREWSCREW
-
127546703 NUT, NYLOKNUT, NYLOK
-
135450170 SEAT-BASESEAT-BASE
-
147518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
155257975 BRACKET, SEAT SLIDER ADJUSTMENT PLATEBRACKET, SEAT SLIDER ADJUSTMENT PLATE
-
167547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
175260733 BRACKET, SEAT SLIDER LEVERBRACKET, SEAT SLIDER LEVER
-
187044099 SPRINGSPRING
-
197518786 BOLT, SHOULDERBOLT, SHOULDER
-
207518897 BOLT, SHOULDERBOLT, SHOULDER
-
215337939 TUBE, SPACERTUBE, SPACER
-
227519296 SCREWSCREW
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247555859 WASHER, FLATWASHER, FLAT
-
255140211 BOLT-SHOULDER SLEEVEBOLT-SHOULDER SLEEVE
-
265415501-070 PAD-SEAT BASE, RZR, MPPAD-SEAT BASE, RZR, MP
-
275261437 BRACKET, SEAT SLIDER MOUNTING PLATEBRACKET, SEAT SLIDER MOUNTING PLATE
