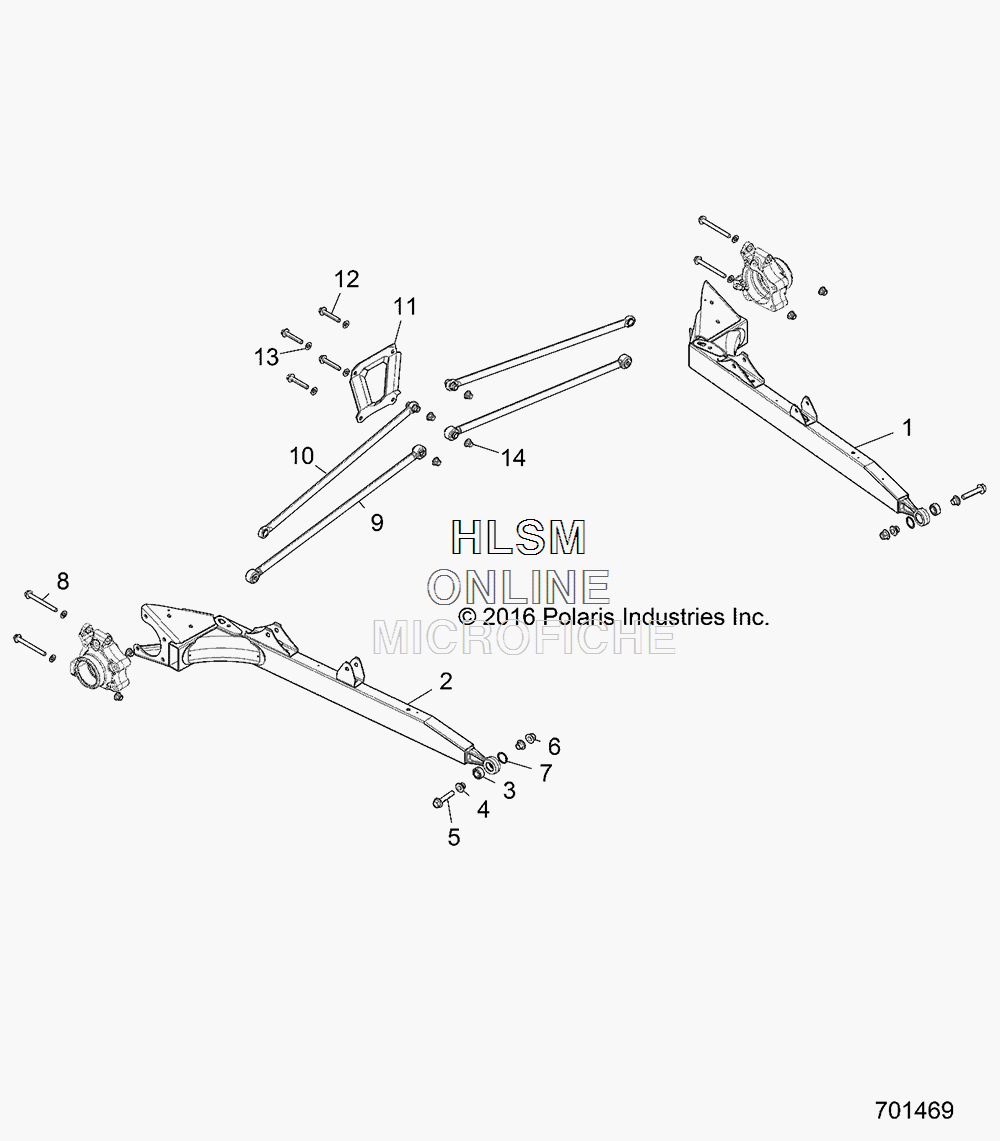

REAR CONTROL ARMS для Polaris RZR XP 1000 MD (TITANIUM METALLIC) [Z17VFE99NM] (4-DOOR) - 2017 года выпуска
-
№АртикулНазвание
-
11019356-293 WELD-TRL ARM, LEFT HAND, INDY REDWELD-TRL ARM, LEFT HAND, INDY RED
-
21019357-293 WELD-TRL ARM, RIGHT HAND, INDY REDWELD-TRL ARM, RIGHT HAND, INDY RED
-
33514689 BEARING, SPHERICALBEARING, SPHERICAL
-
45336751 BUSHING, REDUCER, 12MMBUSHING, REDUCER, 12MM
-
57519138 SCREWSCREW
-
67547334 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
77710437 RING, RETAINERRING, RETAINER
-
87519284 SCREWSCREW
-
87520479 SCR-HXFL-M12X1.5X105 10.9 ZODSCR-HXFL-M12X1.5X105 10.9 ZOD
-
91543204-293 ASM-RADIUS ROD, BTM, INDY REDASM-RADIUS ROD, BTM, INDY RED
-
101543377-293 ASM-RADIUS ROD, INDY REDASM-RADIUS ROD, INDY RED
-
115259640-458 PLATE-REAR, BOLT BRACE, BLACKPLATE-REAR, BOLT BRACE, BLACK
-
127519306 SCREWSCREW
-
137556153 WASHER-3/8 FW SAE STL THRU-HRDWASHER-3/8 FW SAE STL THRU-HRD
-
147547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
