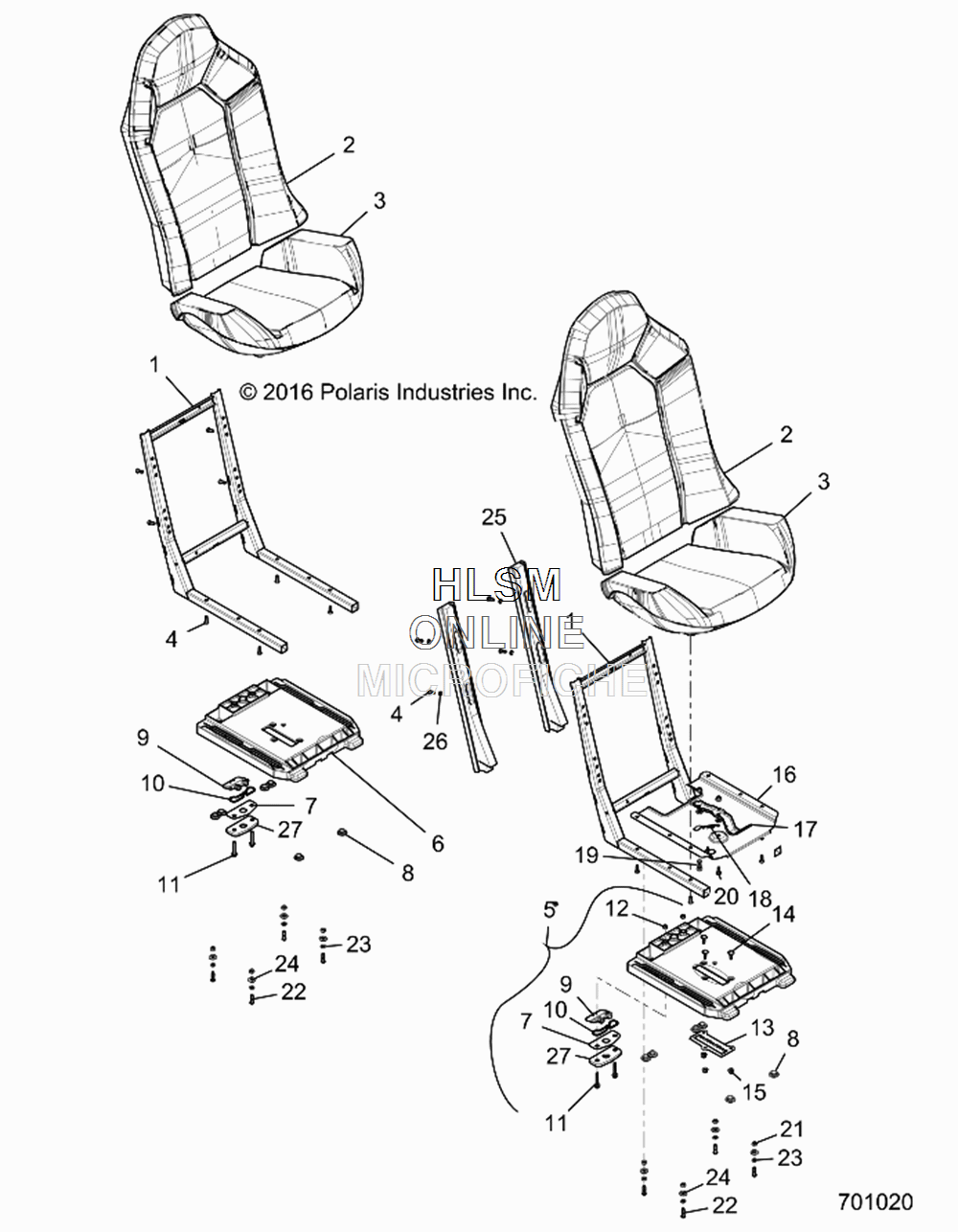

SEAT ASM. AND SLIDER для Polaris RZR XP 1000 MD (TITANIUM METALLIC) [Z17VFE99NM] (4-DOOR) - 2017 года выпуска
-
№АртикулНазвание
-
11021289 FRAME, SEATFRAME, SEAT
-
22687887 ASM-SEAT BACK, HAVASU RED/BLACK (BUILT AFTER 2/1/17)ASM-SEAT BACK, HAVASU RED/BLACK (BUILT AFTER 2/1/17)
-
22686791 ASM-SEAT BACK, HAVASU RED/BLACK (BUILT UP TO 2/1/17)ASM-SEAT BACK, HAVASU RED/BLACK (BUILT UP TO 2/1/17)
-
32687890 ASM-SEAT BTM, HAVASU RED/BLACK (BUILT AFTER 2/1/17)ASM-SEAT BTM, HAVASU RED/BLACK (BUILT AFTER 2/1/17)
-
32686794 ASM-SEAT BTM, HAVASU RED/BLACK (BUILT UP TO 2/1/17)ASM-SEAT BTM, HAVASU RED/BLACK (BUILT UP TO 2/1/17)
-
47515177 SCREWSCREW
-
52634889 ASM-BASE, SEAT (INCL. 6-12, 27)ASM-BASE, SEAT (INCL. 6-12, 27)
-
52685704 ASM., BASE, SEAT SLIDER (INCL. 6-15, 27)ASM., BASE, SEAT SLIDER (INCL. 6-15, 27)
-
65450170 SEAT-BASESEAT-BASE
-
75258647 PLATE, LATCH, SEATPLATE, LATCH, SEAT
-
85413441 GROMMET, SEAT BASEGROMMET, SEAT BASE
-
95437121 LEVER, LATCH, SEATLEVER, LATCH, SEAT
-
107081466 SPRING, LATCH, SEATSPRING, LATCH, SEAT
-
117517610 SCREWSCREW
-
127546703 NUT, NYLOKNUT, NYLOK
-
135257975 BRACKET, SEAT SLIDER ADJUSTMENT PLATEBRACKET, SEAT SLIDER ADJUSTMENT PLATE
-
147518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
157547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
165261437 BRACKET, SEAT SLIDER MOUNTING PLATEBRACKET, SEAT SLIDER MOUNTING PLATE
-
175260733 BRACKET, SEAT SLIDER LEVERBRACKET, SEAT SLIDER LEVER
-
187044099 SPRINGSPRING
-
197518786 BOLT, SHOULDERBOLT, SHOULDER
-
207518897 BOLT, SHOULDERBOLT, SHOULDER
-
215337939 TUBE, SPACERTUBE, SPACER
-
227519296 SCREWSCREW
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247555859 WASHER, FLATWASHER, FLAT
-
255415501-070 PAD, SEAT BASEPAD, SEAT BASE
-
265140211 BOLT-SHOULDER SLEEVEBOLT-SHOULDER SLEEVE
-
275450510-070 LATCH-COVER PLATE, BLACKLATCH-COVER PLATE, BLACK
