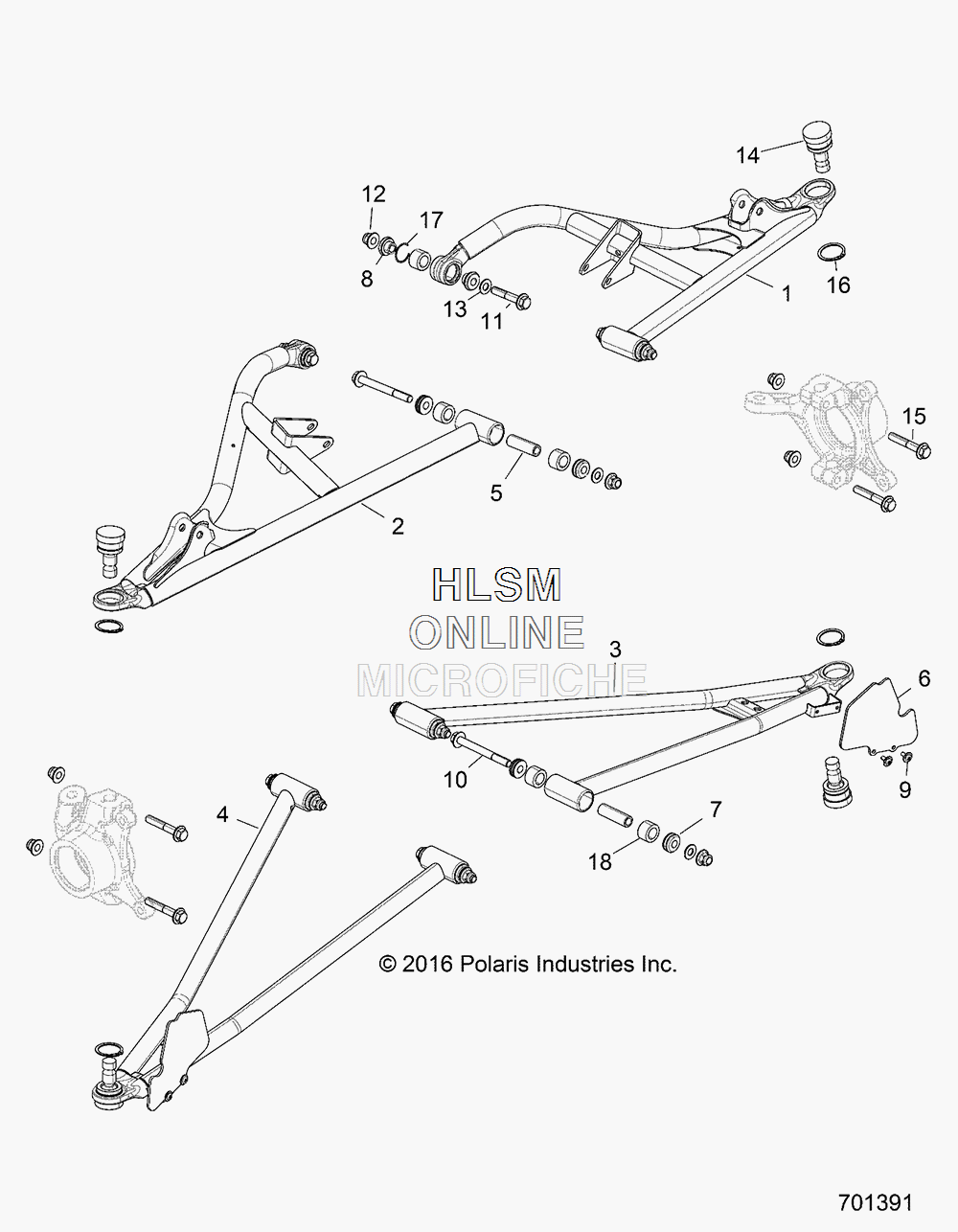

FRONT CONTROL ARMS для Polaris RZR XP 4 TURBO EPS (VELOCITY BLUE) [Z17VFE92AK] - 2017 года выпуска
-
№АртикулНазвание
-
11021478-293 WELD-CTRL ARM, UPR, FR, LEFT HAND, 64, INDY REDWELD-CTRL ARM, UPR, FR, LEFT HAND, 64, INDY RED
-
21021479-293 WELD-CTRL ARM, UPR, FR, RIGHT HAND, 64, INDY REDWELD-CTRL ARM, UPR, FR, RIGHT HAND, 64, INDY RED
-
31021480-293 WELD-CTRL ARM, LWR, FR, LEFT HAND, 64, INDY REDWELD-CTRL ARM, LWR, FR, LEFT HAND, 64, INDY RED
-
41021481-293 WELD-CTRL ARM, LWR, FR, RIGHT HAND, 64, INDY REDWELD-CTRL ARM, LWR, FR, RIGHT HAND, 64, INDY RED
-
55139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
65438641-070 SHIELD, CV, FRONT, BLACKSHIELD, CV, FRONT, BLACK
-
71543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
81543735 ASM-PIVOT CAP, SEALED, SLIM, M10ASM-PIVOT CAP, SEALED, SLIM, M10
-
97512084 SCREWSCREW
-
107519043 SCREWSCREW
-
117519285 SCREWSCREW
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137556153 WASHERWASHER
-
147081992 BALL, JOINT, HARDENEDBALL, JOINT, HARDENED
-
157519306 SCREWSCREW
-
167710716 RING, RETAININGRING, RETAINING
-
177710845 28MM SPIRAL RING, STEEL28MM SPIRAL RING, STEEL
-
185452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
