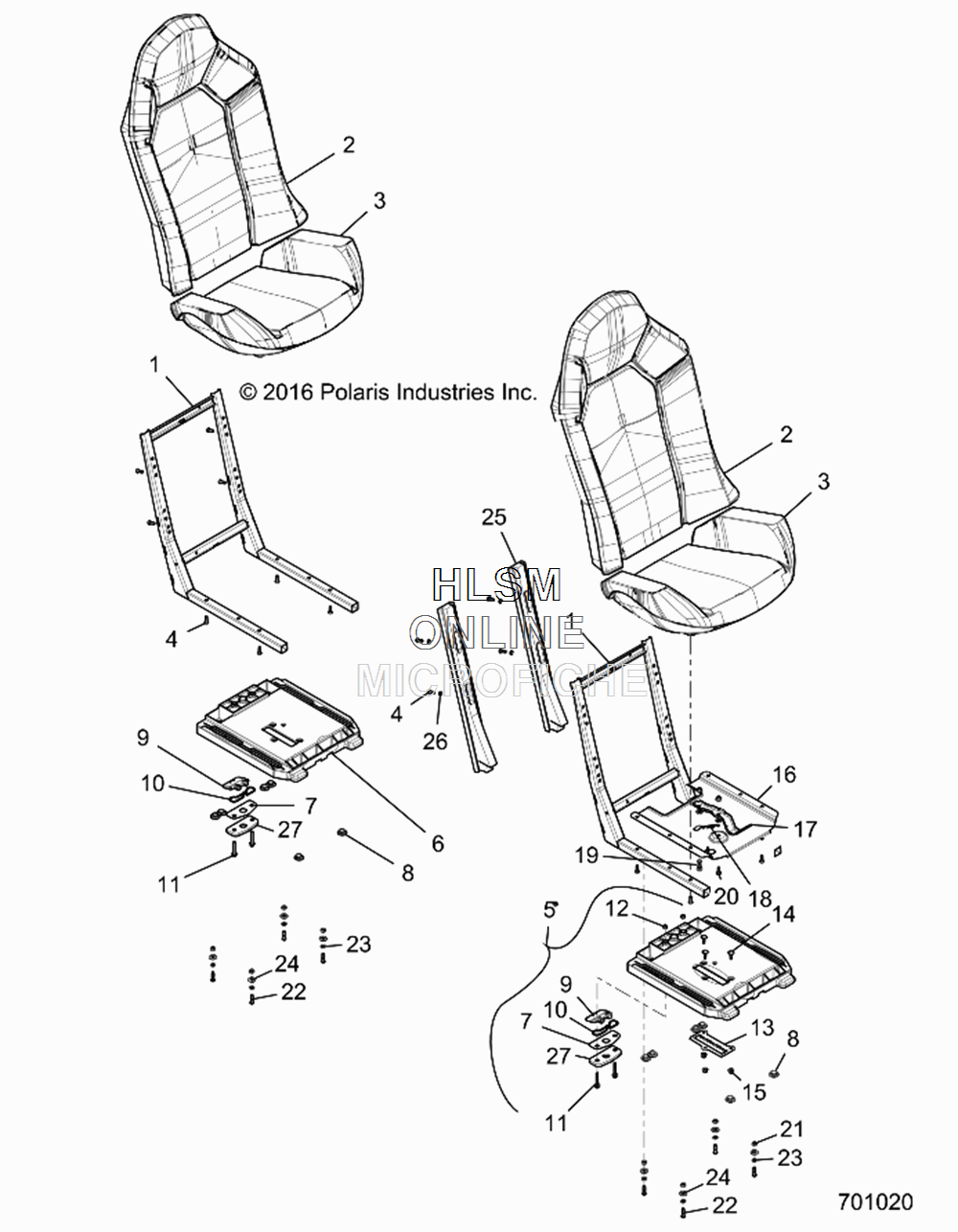

SEAT ASM. AND SLIDER для Polaris RZR XP 4 TURBO EPS (VELOCITY BLUE) [Z17VFE92AK] - 2017 года выпуска
-
№АртикулНазвание
-
11021289 FRAME, SEATFRAME, SEAT
-
22686791 ASM-SEAT BACK, HAVASU RED/BLACKASM-SEAT BACK, HAVASU RED/BLACK
-
32686794 ASM-SEAT BTM, HAVASU RED/BLACKASM-SEAT BTM, HAVASU RED/BLACK
-
47515177 SCREWSCREW
-
52685704 ASM., BASE, SEAT SLIDER (INCL. 6-14, 27 QTY 6 OF 15)ASM., BASE, SEAT SLIDER (INCL. 6-14, 27 QTY 6 OF 15)
-
65450170 SEAT-BASESEAT-BASE
-
75258647 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
85413441 GROMMET, SEAT BASEGROMMET, SEAT BASE
-
95437121 LEVER, LATCH, SEATLEVER, LATCH, SEAT
-
107081466 SPRING, LATCH, SEATSPRING, LATCH, SEAT
-
117517610 SCREWSCREW
-
127546703 NUT, NYLOKNUT, NYLOK
-
135257975 BRACKET, SEAT SLIDER ADJUSTMENT PLATEBRACKET, SEAT SLIDER ADJUSTMENT PLATE
-
147518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
157547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
165261437 BRACKET, SEAT SLIDER MOUNTING PLATEBRACKET, SEAT SLIDER MOUNTING PLATE
-
175260733 BRACKET, SEAT SLIDER LEVERBRACKET, SEAT SLIDER LEVER
-
187044099 SPRINGSPRING
-
197518786 BOLT, SHOULDERBOLT, SHOULDER
-
207518897 BOLT, SHOULDERBOLT, SHOULDER
-
215340145 TUBE, SPACERTUBE, SPACER
-
227519296 SCREWSCREW
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247555859 WASHER, FLATWASHER, FLAT
-
255140211 SLEEVE-SHLD, 15.5OD, 10 OD, 6.5IDSLEEVE-SHLD, 15.5OD, 10 OD, 6.5ID
-
265415501-070 PAD-SEAT BASE, BLACKPAD-SEAT BASE, BLACK
-
275450510-070 LATCH-COVER PLATE, BLACKLATCH-COVER PLATE, BLACK
