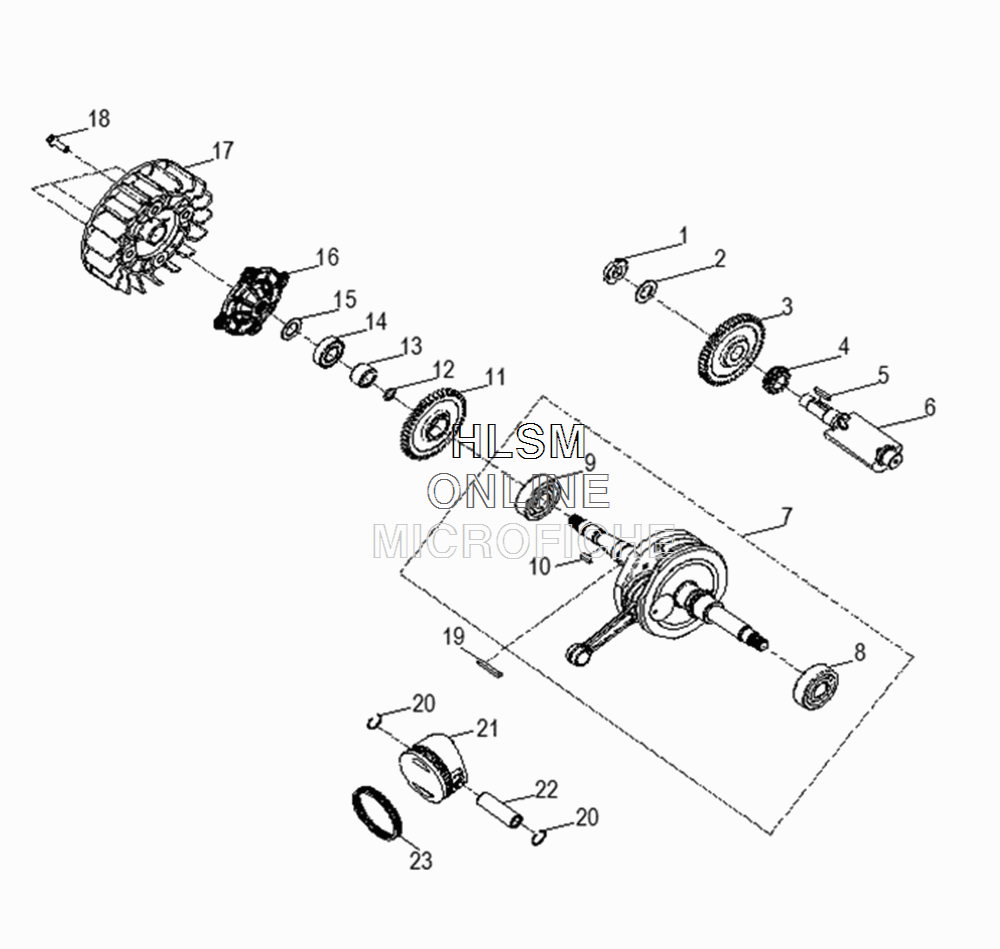

CRANKSHAFT W/ CYLINDER для Polaris RZR 170 EFI (CRUISER BLACK) [Z18YAV17B2/N2] - 2018 года выпуска
-
№АртикулНазвание
-
10452438 NUT, LOCKNUT, LOCK
-
20450264 WASHERWASHER
-
30454577 GEAR, BALANCE, DRIVENGEAR, BALANCE, DRIVEN
-
40452436 SPROCKET, OIL PUMP, DRIVESPROCKET, OIL PUMP, DRIVE
-
50452439 KEY, WOODRUFFKEY, WOODRUFF
-
60454576 SHAFT, BALANCESHAFT, BALANCE
-
70454579 ASM., CRANKSHAFT (INCL. 8-10)ASM., CRANKSHAFT (INCL. 8-10)
-
80455205 BEARINGBEARING
-
90455206 BEARINGBEARING
-
100452429 KEY, WOODRUFFKEY, WOODRUFF
-
110454578 GEAR, BALANCE, DRIVEGEAR, BALANCE, DRIVE
-
120454580 O-RINGO-RING
-
130454581 BUSHING, CRANKSHAFTBUSHING, CRANKSHAFT
-
140454582 BEARING, BALLBEARING, BALL
-
150454622 WASHERWASHER
-
160454583 MOUNT, FANMOUNT, FAN
-
170454584 FANFAN
-
180450066 BOLTBOLT
-
190454585 KEY, WOODRUFFKEY, WOODRUFF
-
200454586 C-CLIPC-CLIP
-
210454588 PISTONPISTON
-
220454587 PIN, PISTONPIN, PISTON
-
230454589 RING, SET, PISTONRING, SET, PISTON
