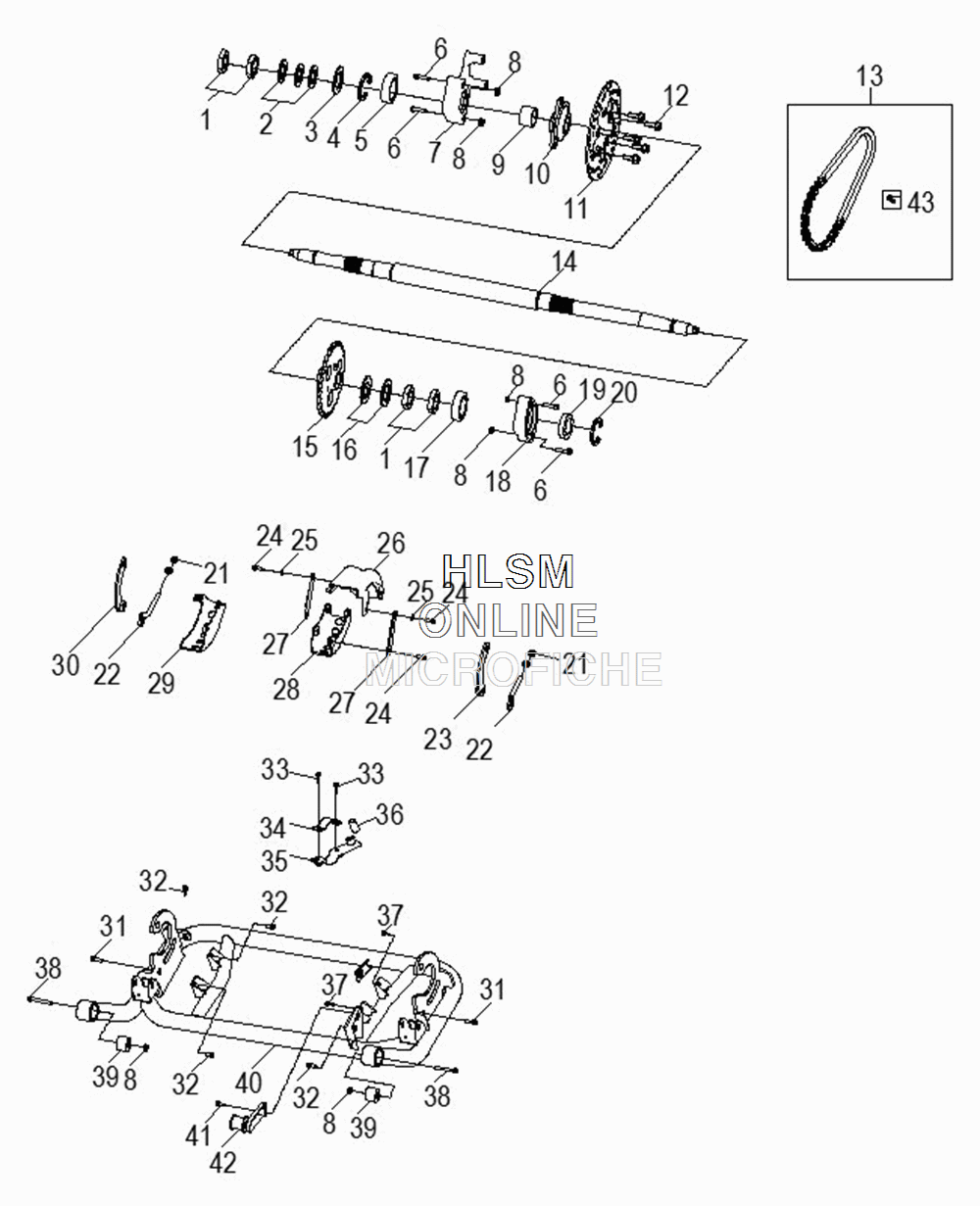

SWING ARM W/ REAR AXLE для Polaris RZR 170 EFI (CRUISER BLACK) [Z18YAV17B2/N2] - 2018 года выпуска
-
№АртикулНазвание
-
10454473 NUTNUT
-
20454474 WASHERWASHER
-
30454475 WASHERWASHER
-
40454476 CLIP, CIRCLIP, CIR
-
50454477 BEARING, BALLBEARING, BALL
-
60454478 BOLTBOLT
-
70454479 HOUSING, AXLE, REAR, RIGHT HANDHOUSING, AXLE, REAR, RIGHT HAND
-
80453706 NUT, FLANGENUT, FLANGE
-
90454300 SPACER, COLLAR, AXLESPACER, COLLAR, AXLE
-
100454481 MOUNT, BRAKE DISCMOUNT, BRAKE DISC
-
110454482 DISC, BRAKEDISC, BRAKE
-
120452904 BOLT, BRAKE DISCBOLT, BRAKE DISC
-
130454771 ASM., DRIVE CHAIN (INCL. 43)ASM., DRIVE CHAIN (INCL. 43)
-
140454660 AXLEAXLE
-
150455224 ASM-SPROCKET, DRIVEASM-SPROCKET, DRIVE
-
160454496 WASHERWASHER
-
170452715 BEARINGBEARING
-
180454494 HOUSING, AXLE, REAR, LEFT HANDHOUSING, AXLE, REAR, LEFT HAND
-
190452752 SEAL, OILSEAL, OIL
-
200452717 RETAINERRETAINER
-
210453818 NUTNUT
-
220453557 ADJUSTER, CHAINADJUSTER, CHAIN
-
240452030 BOLTBOLT
-
250452198 WASHER, FLATWASHER, FLAT
-
260454264 COVER, SPROCKET, REARCOVER, SPROCKET, REAR
-
270454506 BRACKET, CHAIN GUARD, RIGHT HANDBRACKET, CHAIN GUARD, RIGHT HAND
-
280454275 COVER, SPROCKETCOVER, SPROCKET
-
290454507 SHIELD, DISC, BRAKESHIELD, DISC, BRAKE
-
300454508 CLAMP, TUBE, AXLE HUB, RIGHT HANDCLAMP, TUBE, AXLE HUB, RIGHT HAND
-
310454448 BOLTBOLT
-
320453669 BOLTBOLT
-
330450298 BOLTBOLT
-
340454921 MOUNT, BUFFER, UPPERMOUNT, BUFFER, UPPER
-
350454922 MOUNT, BUFFER, LOWERMOUNT, BUFFER, LOWER
-
360454652 BUFFER, CHAINBUFFER, CHAIN
-
370454923 BOLTBOLT
-
380454509 BOLTBOLT
-
390454510 BUSHINGBUSHING
-
400454924-067 ARM, SWING, BLACKARM, SWING, BLACK
-
420454925 ASM., CHAIN TENSIONERASM., CHAIN TENSIONER
-
430454905 LINK, CHAIN, MASTERLINK, CHAIN, MASTER
