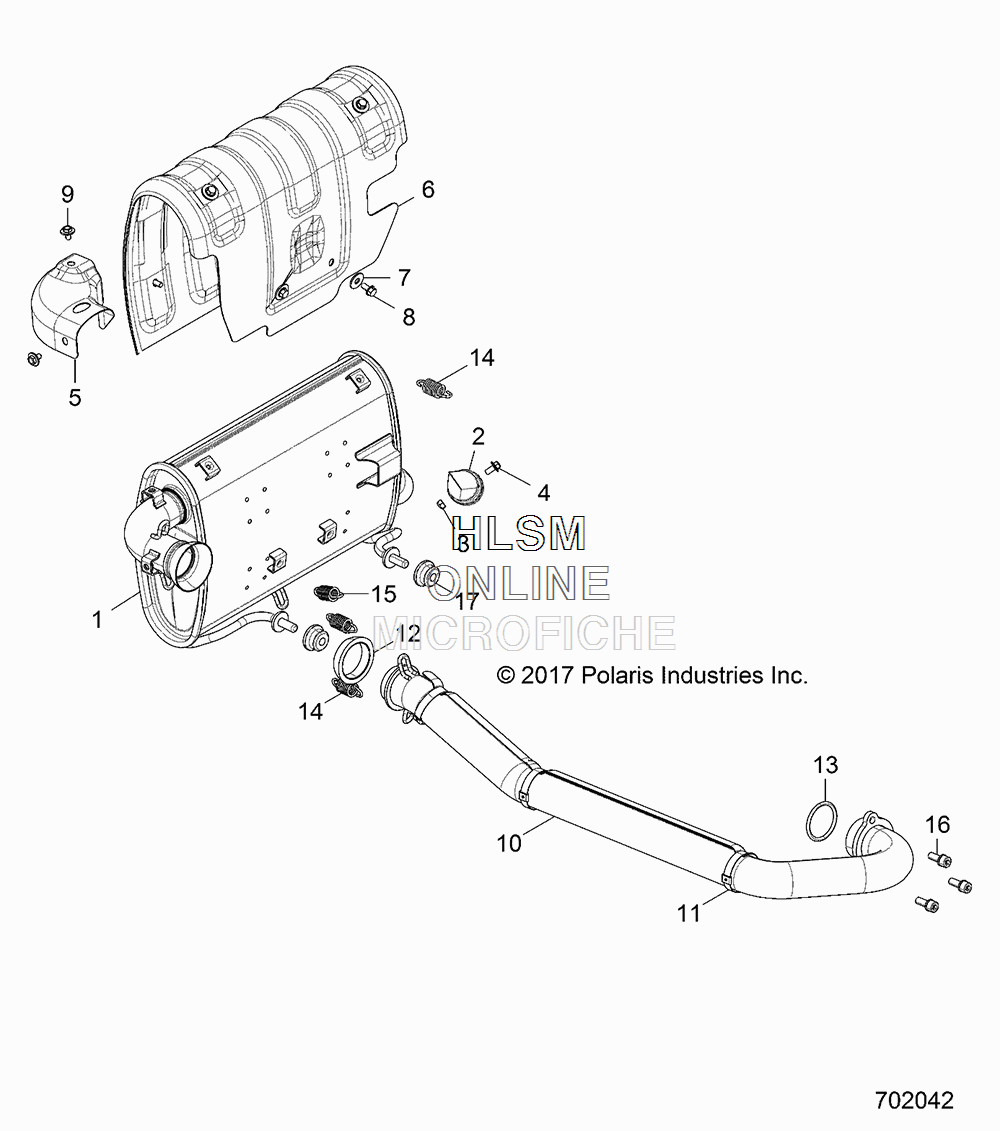

EXHAUST SYSTEM для Polaris RZR 570 EU (WHITE LIGHTNING) [Z18VHA57F2] - 2018 года выпуска
-
№АртикулНазвание
-
11263093 ASM-SILENCER (INCL. 2-5)ASM-SILENCER (INCL. 2-5)
-
21262239 ARRESTOR, SPARKARRESTOR, SPARK
-
37547120 NUTNUT
-
47517257 SCREWSCREW
-
55264461 SHIELD-HEAT, INLETSHIELD-HEAT, INLET
-
65258938 SHIELD-SILENCERSHIELD-SILENCER
-
77555935 WASHER-.28 X .81 X .06, ST-MWASHER-.28 X .81 X .06, ST-M
-
87518490 SCR-1/4-20X1/2, TFM HW-MSCR-1/4-20X1/2, TFM HW-M
-
97520291 SCR-HHSEMS-M6X1.0X10 A286, LOCKSCR-HHSEMS-M6X1.0X10 A286, LOCK
-
101262355 ASM., HEADPIPE, REAR (INCL. 11)ASM., HEADPIPE, REAR (INCL. 11)
-
117081156 CLAMP-HEAT SHIELD, EXHAUSTCLAMP-HEAT SHIELD, EXHAUST
-
123610181 SEAL, EXHAUST, SOCKETSEAL, EXHAUST, SOCKET
-
135253989 GASKET, EXHAUST SEALINGGASKET, EXHAUST SEALING
-
147041789 SPRING, EXHAUSTSPRING, EXHAUST
-
157041804 SPRING-EXHAUSTSPRING-EXHAUST
-
167518984 SCREWSCREW
-
175415785 ISOLATOR-EXHAUST, HANGERISOLATOR-EXHAUST, HANGER
