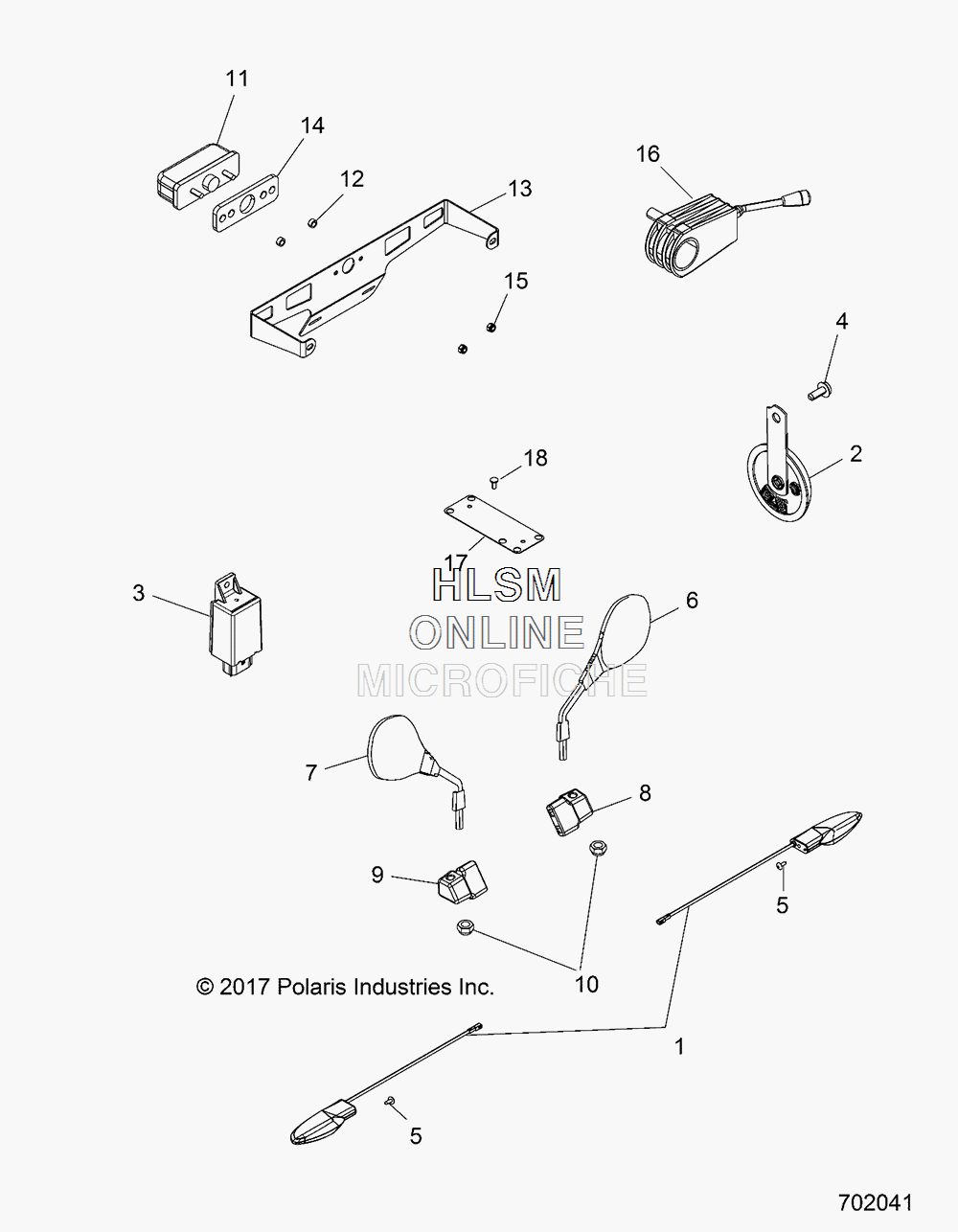

TURN SIGNALS- HORN- AND LICENSE PLATE LIGHT для Polaris RZR 570 EU (WHITE LIGHTNING) [Z18VHA57F2] - 2018 года выпуска
-
№АртикулНазвание
-
12411114-463 SIGNAL-TURN, BLACKSIGNAL-TURN, BLACK
-
24011579 HORN-DISCHORN-DISC
-
34015849 MODULE-FLASH, TURN, TRAILERMODULE-FLASH, TURN, TRAILER
-
47517386 SCR-1/4-20X5/8, TAP/R-YSCR-1/4-20X5/8, TAP/R-Y
-
57518546 SCR-M6X1.0X20MM, TX, PH, 8.8-BSCR-M6X1.0X20MM, TX, PH, 8.8-B
-
62633314 ASM-MIRROR, HNDLBR, LEFT HANDASM-MIRROR, HNDLBR, LEFT HAND
-
72633315 ASM-MIRROR, HNDLBR, RIGHT HANDASM-MIRROR, HNDLBR, RIGHT HAND
-
85632307-458 MOUNT-MIRROR, CAST, LEFT HAND, MATTE BLACKMOUNT-MIRROR, CAST, LEFT HAND, MATTE BLACK
-
95632308-458 MOUNT-MIRROR, CAST, RIGHT HAND, MATTE BLACKMOUNT-MIRROR, CAST, RIGHT HAND, MATTE BLACK
-
107546804 NUT-HEX, M8X1.25, NYLOCK-SSNUT-HEX, M8X1.25, NYLOCK-SS
-
112410629 LIGHT-LICENSE PLATE, BLACKLIGHT-LICENSE PLATE, BLACK
-
125134403 SPCR-LP LIGHT, 5.0X8.0X4.0, ALSPCR-LP LIGHT, 5.0X8.0X4.0, AL
-
135255596-458 BRKT-LICENSE PLATE, BLACKBRKT-LICENSE PLATE, BLACK
-
145812520 SPACER-LP LIGHT, BDSPACER-LP LIGHT, BD
-
157546601 NUT-M5X.8, HX NYL-YNUT-M5X.8, HX NYL-Y
-
164012704 SWITCH-BLOCK, TURN, LIGHTS, HORNSWITCH-BLOCK, TURN, LIGHTS, HORN
-
175263795 BRKT-FLASHER MODULE, 57O EUBRKT-FLASHER MODULE, 57O EU
-
187662090 RVT-POP, 3/16, .126-.250, ALUMRVT-POP, 3/16, .126-.250, ALUM
