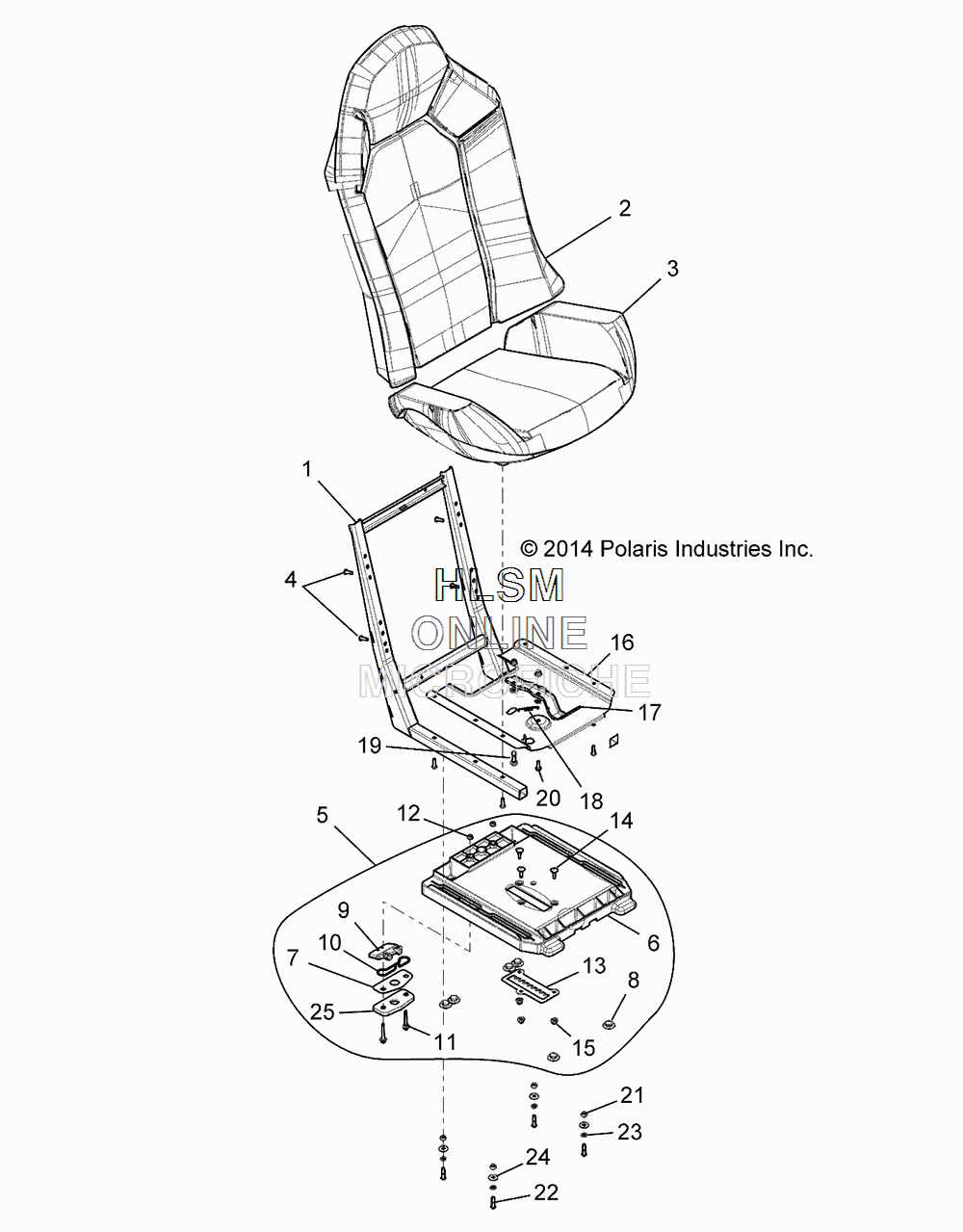

SEAT ASSY. W/ SLIDER для Polaris RZR S 900 EPS (GHOST GRAY) [Z18VBE87BU] - 2018 года выпуска
-
№АртикулНазвание
-
11021289 FRAME, SEATFRAME, SEAT
-
22686797 ASM-SEAT BACK, LIME S/BLACKASM-SEAT BACK, LIME S/BLACK
-
32686800 ASM-SEAT BTM, LIME S/BLACKASM-SEAT BTM, LIME S/BLACK
-
47515177 SCREWSCREW
-
52685704 ASM-BASE, SEAT SLIDER (INCL. 6-15, 25)ASM-BASE, SEAT SLIDER (INCL. 6-15, 25)
-
65450170 SEAT-BASESEAT-BASE
-
75258647 PLATE, SEAT LATCHPLATE, SEAT LATCH
-
85413441 GROMMET, SEAT BASEGROMMET, SEAT BASE
-
95437121 LEVER, LATCH, SEATLEVER, LATCH, SEAT
-
107081466 SPRING, LATCH, SEATSPRING, LATCH, SEAT
-
117517610 SCREWSCREW
-
127546703 NUT, NYLOKNUT, NYLOK
-
135257975 BRACKET, SEAT SLIDER ADJUSTMENT PLATEBRACKET, SEAT SLIDER ADJUSTMENT PLATE
-
147518994 BOLT, CARRIAGEBOLT, CARRIAGE
-
157547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
165261437 BRACKET, SEAT SLIDER MOUNTING PLATEBRACKET, SEAT SLIDER MOUNTING PLATE
-
175260733 BRACKET, SEAT SLIDER LEVERBRACKET, SEAT SLIDER LEVER
-
187044099 SPRINGSPRING
-
197518786 BOLT, SHOULDERBOLT, SHOULDER
-
207518897 BOLT, SHOULDERBOLT, SHOULDER
-
215340145 TUBE, SPACERTUBE, SPACER
-
227519296 SCREWSCREW
-
237552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247555859 WASHER, FLATWASHER, FLAT
-
255450510-070 LATCH, COVER PLATE, BLACKLATCH, COVER PLATE, BLACK
