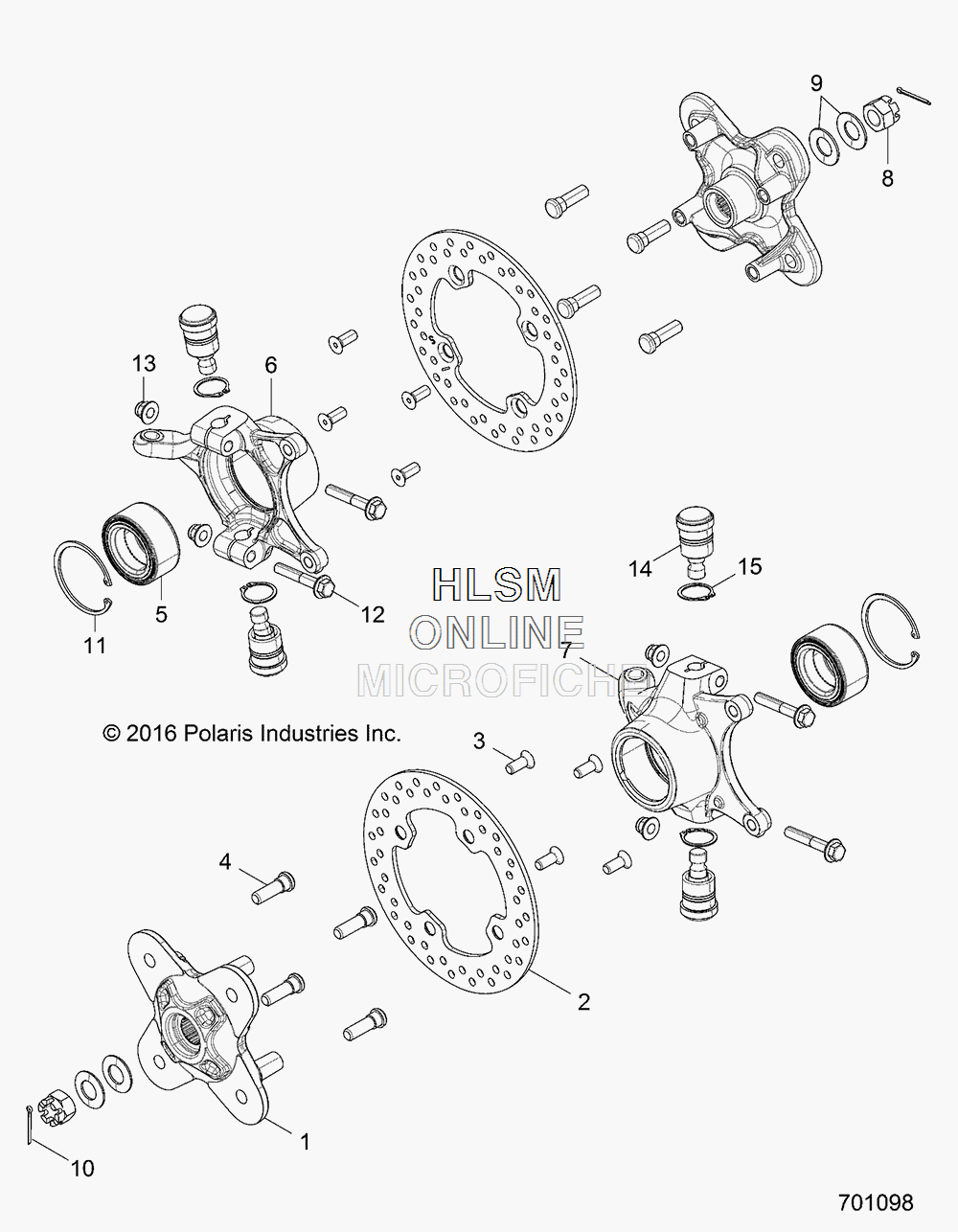

WHEEL - FRONT HUB W/ ROTORS для Polaris RZR S 900 EPS (GHOST GRAY) [Z18VBE87BU] - 2018 года выпуска`
-
№АртикулНазвание
-
15141366-458 HUB-WHEEL, MACH, BLACKHUB-WHEEL, MACH, BLACK
-
25263266 ROTOR, BRAKEROTOR, BRAKE
-
37518978 SCR-M10X1.5X20 8.8 TXCS FL ZODSCR-M10X1.5X20 8.8 TXCS FL ZOD
-
47519753 STUD-WHEEL, M12-1.5STUD-WHEEL, M12-1.5
-
53514924 BEARING-BALL, SEALED, 44X72X33.1BEARING-BALL, SEALED, 44X72X33.1
-
65139093 CARRIER-BEARING, WHEEL, LEFT HAND(MACH)CARRIER-BEARING, WHEEL, LEFT HAND(MACH)
-
75139094 CARRIER-BEARING, WHEEL, RIGHT HAND(MACH)CARRIER-BEARING, WHEEL, RIGHT HAND(MACH)
-
87547337 NUT-M18X1.5, CASTLE, ZINC/YELLOWNUT-M18X1.5, CASTLE, ZINC/YELLOW
-
97556987 WSHR-BLVL, 19X42X4.5-5.08WSHR-BLVL, 19X42X4.5-5.08
-
107661404 PIN-COTTER 1/8X1 1/2-YPIN-COTTER 1/8X1 1/2-Y
-
117710780 RING-RETAINING, 2.835, INTERNALRING-RETAINING, 2.835, INTERNAL
-
127519306 SCR-HXFL-M10X1.25X60 10.9 ZODSCR-HXFL-M10X1.25X60 10.9 ZOD
-
137547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
147081924 BALL, JOINT, 10MM STUDBALL, JOINT, 10MM STUD
-
157710533 RING, RETAINERRING, RETAINER
