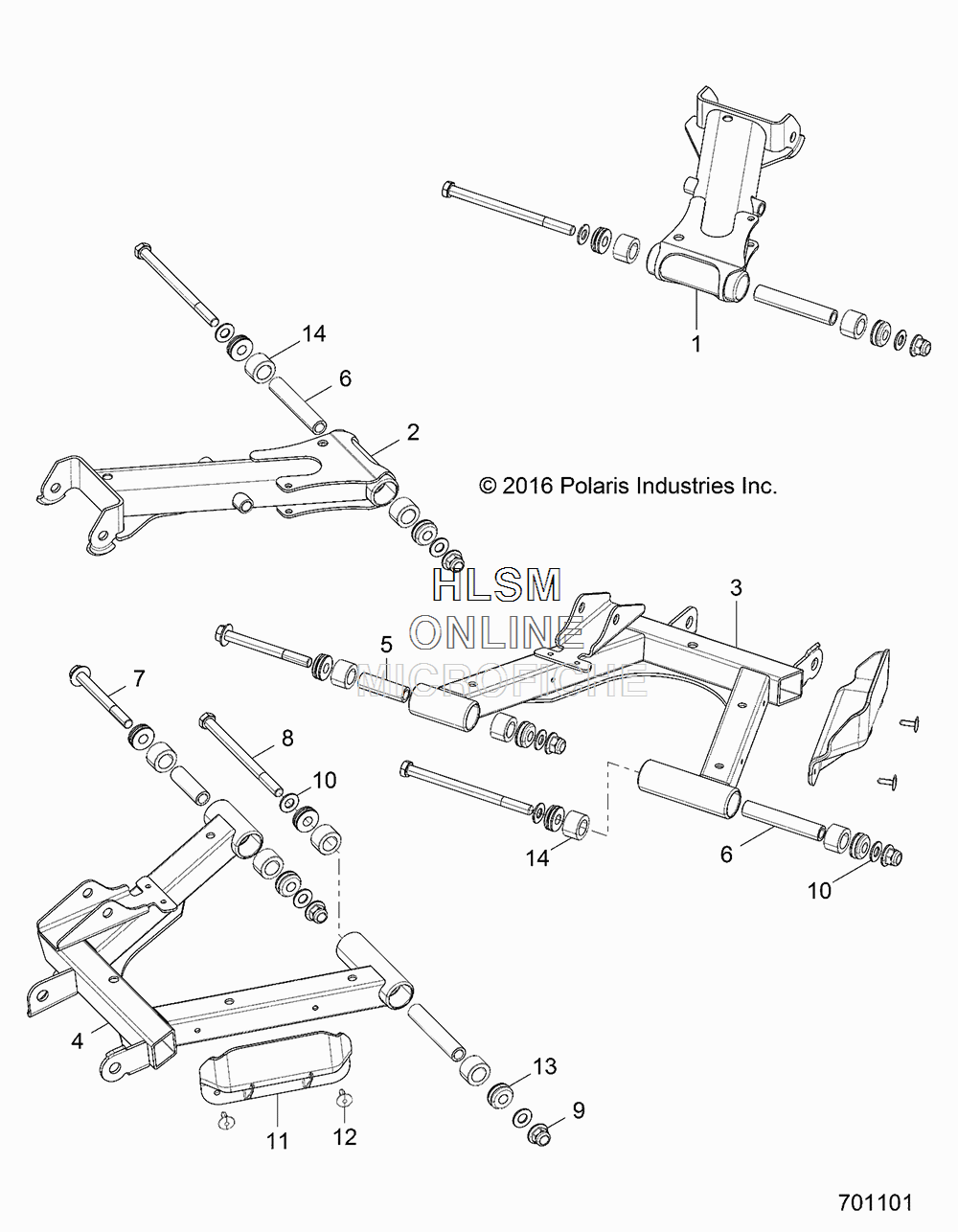

REAR CONTROL ARMS для Polaris RZR S4 900 EPS (GHOST GRAY) [Z18VCE87BU] - 2018 года выпуска
-
№АртикулНазвание
-
11021412-458 WELD-A-ARM, REAR, UPPER, LEFT HAND, 60, BLACKWELD-A-ARM, REAR, UPPER, LEFT HAND, 60, BLACK
-
21021413-458 WELD-A-ARM, REAR, UPPER, RIGHT HAND, 60, BLACKWELD-A-ARM, REAR, UPPER, RIGHT HAND, 60, BLACK
-
31021414-458 WELD-A-ARM, REAR, LOWER, LEFT HAND, 60, BLACKWELD-A-ARM, REAR, LOWER, LEFT HAND, 60, BLACK
-
41021415-458 WELD-A-ARM, REAR, LOWER, RIGHT HAND, 60, BLACKWELD-A-ARM, REAR, LOWER, RIGHT HAND, 60, BLACK
-
55139966 SHAFT-PIVOT, SHORT, M10SHAFT-PIVOT, SHORT, M10
-
65139967 SHAFT-PIVOT, LONG, M10SHAFT-PIVOT, LONG, M10
-
77519043 SCREW, HEX FLANGESCREW, HEX FLANGE
-
87519897 SCREWSCREW
-
97547333 NUTNUT
-
107556153 WASHERWASHER
-
115451336-070 SHIELD-CV, REAR, BLACKSHIELD-CV, REAR, BLACK
-
127621467 RIVETRIVET
-
131543611 ASM-PIVOT CAP, SEALED, M10ASM-PIVOT CAP, SEALED, M10
-
145452233 BUSHING-STANDARD, SUSP, M10BUSHING-STANDARD, SUSP, M10
