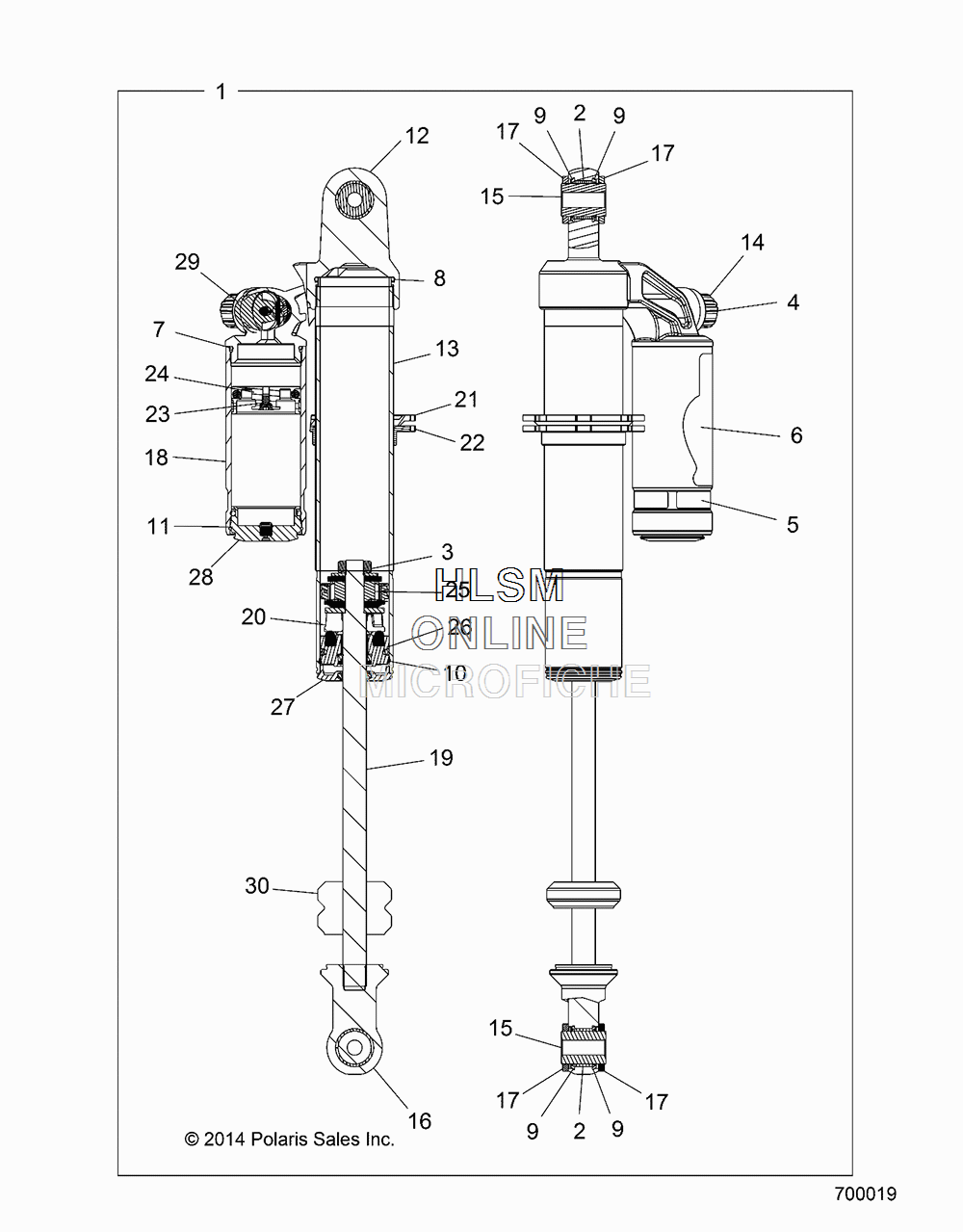

SUSPENSION - REAR SHOCK для Polaris RZR S4 900 EPS (GHOST GRAY) [Z18VCE87BU] - 2018 года выпуска
-
№АртикулНазвание
-
17043897 SHOCK, REAR, PIGGY BACK (INCL. ALL)SHOCK, REAR, PIGGY BACK (INCL. ALL)
-
17044258 SHOCK, REAR, PIGGY BACK (INCL. ALL)SHOCK, REAR, PIGGY BACK (INCL. ALL)
-
21501010 BUSHING, EYELETBUSHING, EYELET
-
31500871 NUT, CONTROL LOCKNUT, CONTROL LOCK
-
41501011 SCREWSCREW
-
51501012 DECAL, PERFORMANCE SERIESDECAL, PERFORMANCE SERIES
-
61501013 DECAL, RESERVOIRDECAL, RESERVOIR
-
71500623 O-RINGO-RING
-
81500510 O-RINGO-RING
-
91501014 SEAL, WEATHERSEAL, WEATHER
-
101500236 RING, RETAININGRING, RETAINING
-
111501015 RING, RETAININGRING, RETAINING
-
121501016 BODY, CAP, PIGGY BACK, LEFT HANDBODY, CAP, PIGGY BACK, LEFT HAND
-
121501017 BODY, CAP, PIGGY BACK, RIGHT HANDBODY, CAP, PIGGY BACK, RIGHT HAND
-
131501018 BODYBODY
-
141501019 KNOB, LOW SPEEDKNOB, LOW SPEED
-
151501087 SLEEVESLEEVE
-
161501089 EYELET, SHAFTEYELET, SHAFT
-
171501088 EYELET, SPACEREYELET, SPACER
-
181501023 RESEVOIR, 5 IN THDRESEVOIR, 5 IN THD
-
191501024 SHAFTSHAFT
-
201501025 SPACER, SHAFTSPACER, SHAFT
-
211500872 RING, PRELOADED, BACKRING, PRELOADED, BACK
-
221500873 RING, PRELOADRING, PRELOAD
-
231500161 SCREW, W/O-RINGSCREW, W/O-RING
-
241501026 ASM., PISTON, FLOATASM., PISTON, FLOAT
-
251500870 PISTONPISTON
-
261500940 ASM., BEARINGASM., BEARING
-
271500835 ASM., BEARING, CAPASM., BEARING, CAP
-
281501027 ASM., END CAPASM., END CAP
-
291501006 ASM., DAMPING, ADJUSTER LSCASM., DAMPING, ADJUSTER LSC
-
301501028 BUMPER, BLACKBUMPER, BLACK
