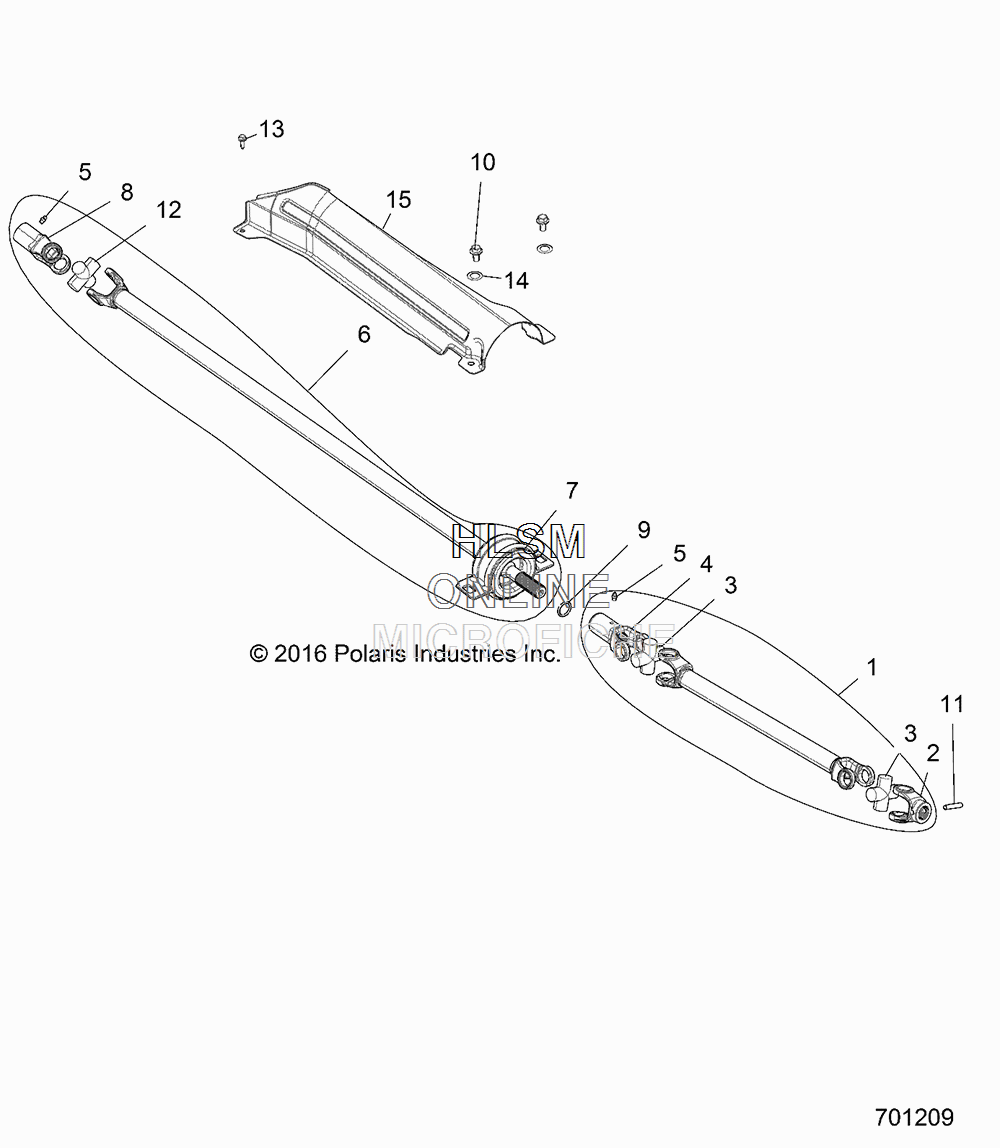

PROP SHAFT - FRONT для Polaris RZR XP 1000 TRACTOR (EU/ZUG) [Z18VDE99FK] - 2018 года выпуска
-
№АртикулНазвание
-
11333642 ASM-PROPSHAFT, FRONT (INCL. 2-5)ASM-PROPSHAFT, FRONT (INCL. 2-5)
-
57080424 FITTINGFITTING
-
61333424 ASM., PROPSHAFT, REAR (INCL. 7, 1 QTY OF 12, 1 QTY OF 5, 8)ASM., PROPSHAFT, REAR (INCL. 7, 1 QTY OF 12, 1 QTY OF 5, 8)
-
73515075 ASM., BEARING, FLEXASM., BEARING, FLEX
-
83235501 YOKE, SLIPYOKE, SLIP
-
95411965 O-RING-.875 ID X .125 DIAO-RING-.875 ID X .125 DIA
-
107518460 BOLT, W/PATCHBOLT, W/PATCH
-
117661913 PIN, SPRINGPIN, SPRING
-
123235500 U-JOINT, 1000 SERIESU-JOINT, 1000 SERIES
-
137518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BLSCR-M6X1.0X20, HXHD, FLG, TDFM, BL
-
147555852 WASHER-.438X1.375X.083, FL-BWASHER-.438X1.375X.083, FL-B
-
155261940-329 BRKT-TANK SUPPORT, INNER, BLACKBRKT-TANK SUPPORT, INNER, BLACK
