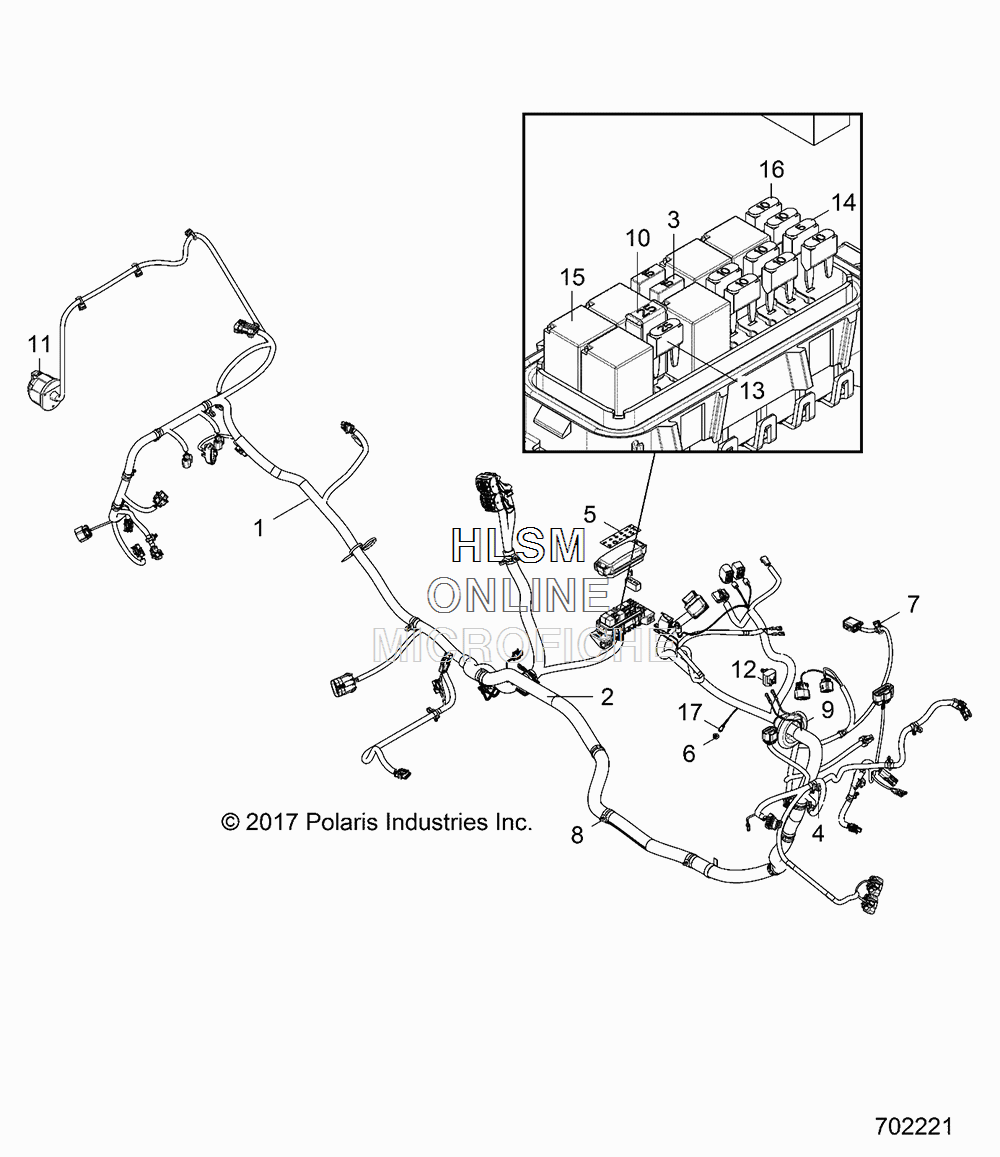

WIRE HARNESS для Polaris RZR XP 1000 TRACTOR (EU/ZUG) [Z18VDE99FK] - 2018 года выпуска
-
№АртикулНазвание
-
12414064 HARNESS-CHASSIS, EPS, RZN TR 64 (INCL ALL)HARNESS-CHASSIS, EPS, RZN TR 64 (INCL ALL)
-
22411035 DIODE-6AMP, 1/4, 3/16 TERMDIODE-6AMP, 1/4, 3/16 TERM
-
32410280 FUSE-MINI BLADE, 15 AMPFUSE-MINI BLADE, 15 AMP
-
47081916 CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)CLIP-DOUBLE CABLE TIE W/XMAS TREE 6.35MM HOLE (BK)
-
57184801 LABEL-FUSE BOX, TRLABEL-FUSE BOX, TR
-
67082020 CLIP-ROUTING, DIN BOXCLIP-ROUTING, DIN BOX
-
77081890 CLIP-EDGE, HARNESSCLIP-EDGE, HARNESS
-
87081496 CLIP-ROUTINGCLIP-ROUTING
-
95813954 GROMMET-65MM, BLACKGROMMET-65MM, BLACK
-
104015771 BREAKER-CIRCUIT, 25 AMPBREAKER-CIRCUIT, 25 AMP
-
114012558 CONNECTOR-7-WAY, EURO TRAILERCONNECTOR-7-WAY, EURO TRAILER
-
124012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
134011653 FUSE-25A, MINI BLADEFUSE-25A, MINI BLADE
-
144011652 FUSE-5A, MINI BLADEFUSE-5A, MINI BLADE
-
154011283 RELAY-SPST, SERIES 303, SEALED, 12V, 20ARELAY-SPST, SERIES 303, SEALED, 12V, 20A
-
162434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
172413217 LED-PANEL MNT, 12V, BLUELED-PANEL MNT, 12V, BLUE
