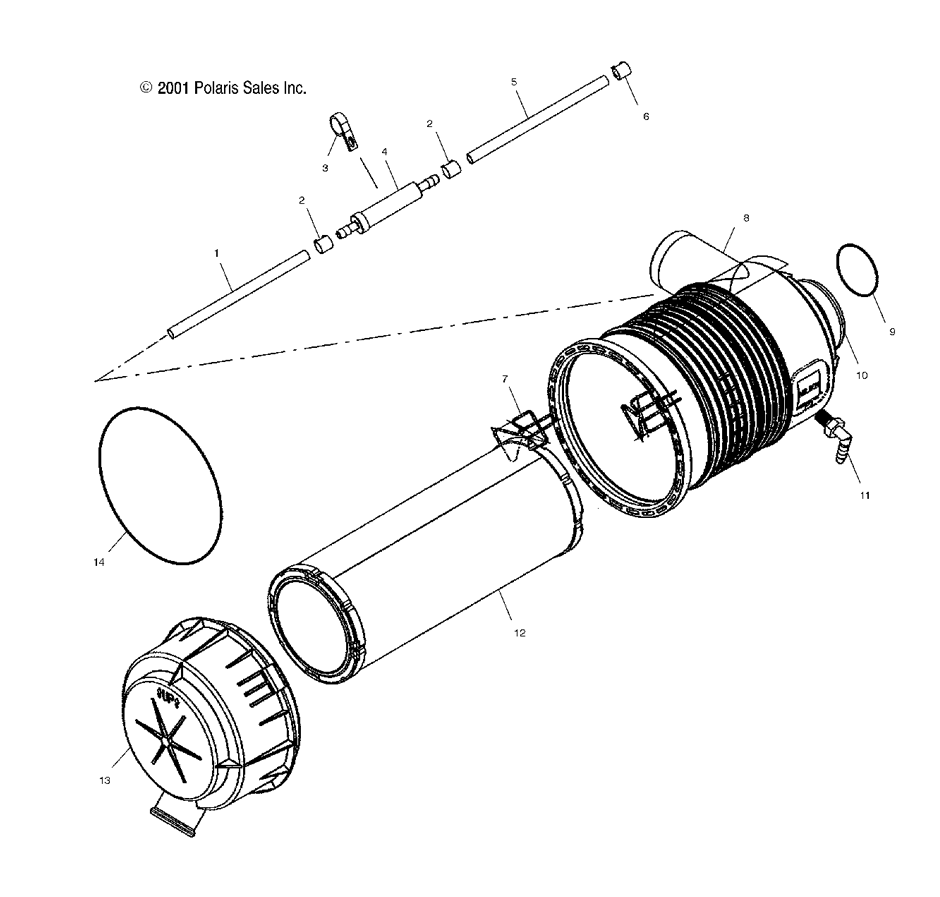

AIR BOX ASSY. для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска
-
№АртикулНазвание
-
18450073-100 HOSEHOSE
-
27080699 CLAMP,HOSECLAMP,HOSE
-
37080913 CLAMP-P,STL,1'' BDL DIA-BCLAMP-P,STL,1'' BDL DIA-B
-
42530029 FILTER,BREATHER,IN LINEFILTER,BREATHER,IN LINE
-
55411921 HOSE-BREATHER,NITRILEHOSE-BREATHER,NITRILE
-
67080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
77670132 CLIP-COVER,AIRBOXCLIP-COVER,AIRBOX
-
85434060 BOX-AIR INTAKEBOX-AIR INTAKE
-
95412015 BOX-AIR INTAKEBOX-AIR INTAKE
-
105434058 BOX-AIR INTAKEBOX-AIR INTAKE
-
117052164 FITTINGFITTING
-
127080981 FILTER-AIR INTAKEFILTER-AIR INTAKE
-
135434059 COVER-AIRBOXCOVER-AIRBOX
-
145812196 SEAL-AIR BOX COVERSEAL-AIR BOX COVER
