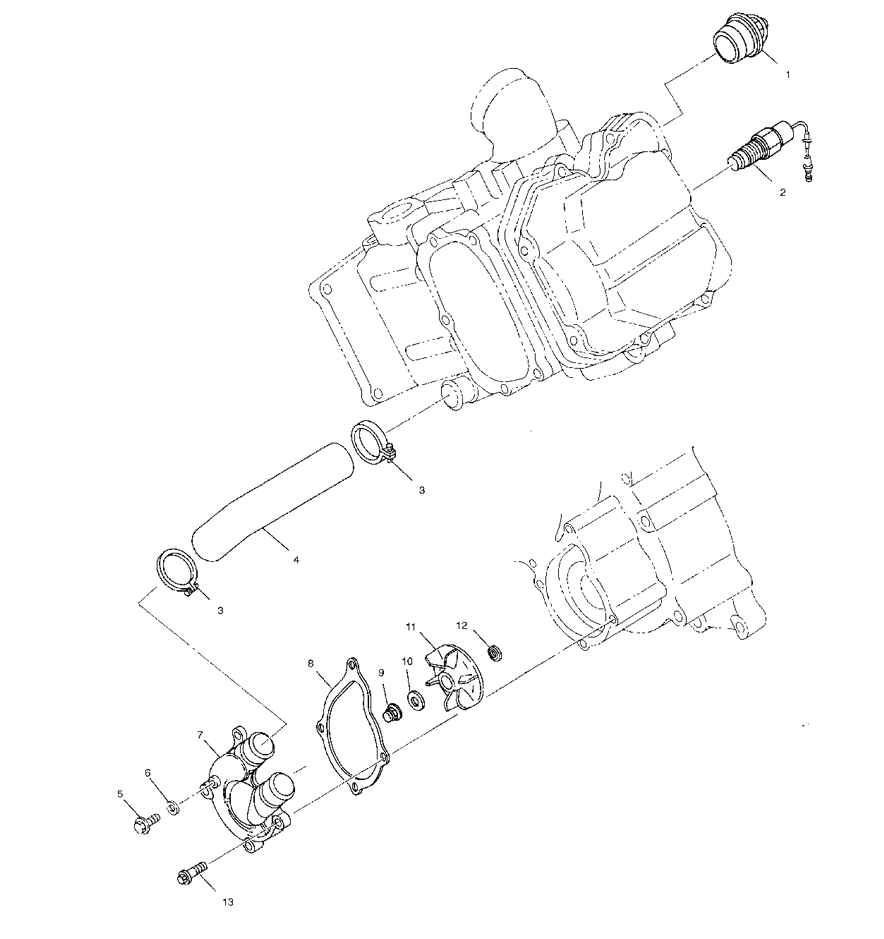

WATER PUMP для Polaris RANGER 6X6 SERIES 10 [A10RF50AB] - 2003 года выпуска
-
№АртикулНазвание
-
13084940 THERMOSTATTHERMOSTAT
-
23085352 SWITCH,THERMO.SWITCH,THERMO.
-
33084191 CLAMP-HOSECLAMP-HOSE
-
43085857 HOSE,MAINHOSE,MAIN
-
53085359 BOLT,FLANGEBOLT,FLANGE
-
63082758 WASHER,FLATWASHER,FLAT
-
73085351 COVER,WATER PUMPCOVER,WATER PUMP
-
83086840 GASKET,WATER-PUMPGASKET,WATER-PUMP
-
93085077 NUT,SELF-LOCKNUT,SELF-LOCK
-
103083138 WASHER,FLATWASHER,FLAT
-
113084935 IMPELLERIMPELLER
-
123084942 WASHER,SEALWASHER,SEAL
-
133084877 BOLT,FLANGEBOLT,FLANGE
