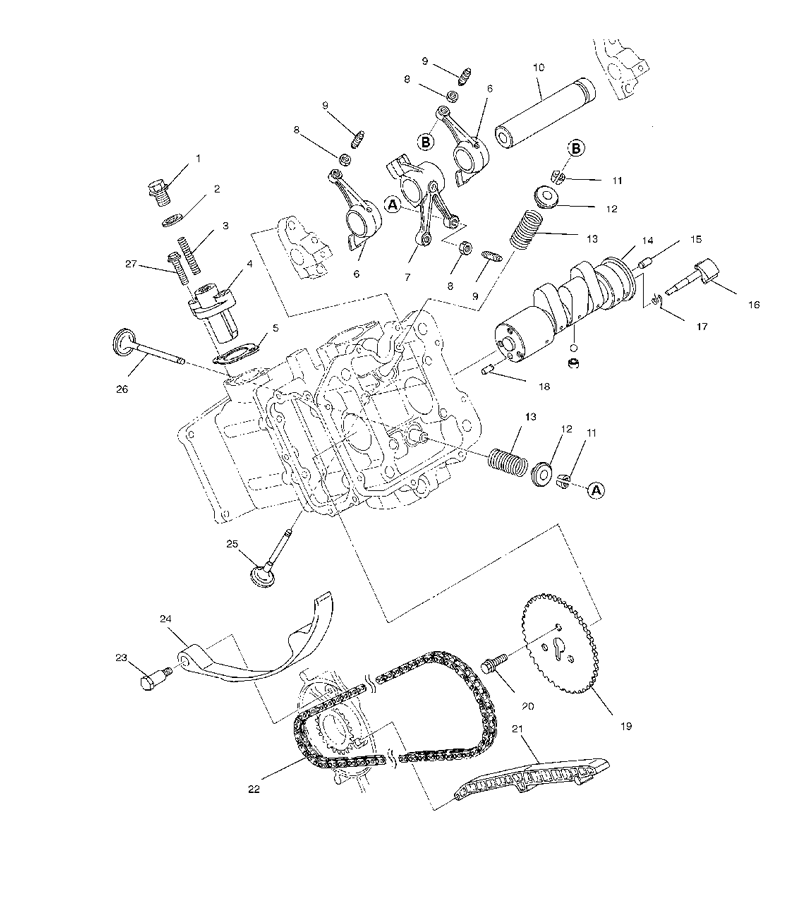

CAMSHAFT W/ VALVE ASSY. для Polaris RANGER 2X4 SERIES 11 [A11RB42AA] - 2004 года выпуска
-
№АртикулНазвание
-
13084845 PLUGPLUG
-
23084920 GASKET, PLUGGASKET, PLUG
-
33086839 SPRING-TENSIONERSPRING-TENSIONER
-
43086813 TENSIONER,ASM (INC 1-3)TENSIONER,ASM (INC 1-3)
-
53084922 GASKET,TENSIONERGASKET,TENSIONER
-
63084910 ROCKER ARM ASM,INTAKE (INC 8,9)ROCKER ARM ASM,INTAKE (INC 8,9)
-
73084913 ROCKER ARM ASM,EXHAUST (INC 8,9)ROCKER ARM ASM,EXHAUST (INC 8,9)
-
83084912 NUTNUT
-
93084911 SCREW, ADJUSTINGSCREW, ADJUSTING
-
103084909 SHAFT,ROCKERSHAFT,ROCKER
-
113084908 COLLET,VALVECOLLET,VALVE
-
123087203 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
133084906 SPRING,VALVESPRING,VALVE
-
143086212 ASM., CAMSHAFT (INC 15-18)ASM., CAMSHAFT (INC 15-18)
-
153086838 PIN,DOWELPIN,DOWEL
-
163085348 LEVER, RELEASELEVER, RELEASE
-
173085076 SPRING,RETURNSPRING,RETURN
-
183084899 PIN,DOWELPIN,DOWEL
-
193084914 SPROCKET 2SPROCKET 2
-
203081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
213084916 GUIDE,CHAINGUIDE,CHAIN
-
223084915 CHAIN, TIMINGCHAIN, TIMING
-
233084924 ASM.,BOLT,PIVOT,LEVERASM.,BOLT,PIVOT,LEVER
-
243084917 LEVERLEVER
-
253085349 VALVE,INTAKEVALVE,INTAKE
-
263085412 VALVE, EXHAUSTVALVE, EXHAUST
-
273084874 BOLT, FLANGEBOLT, FLANGE
