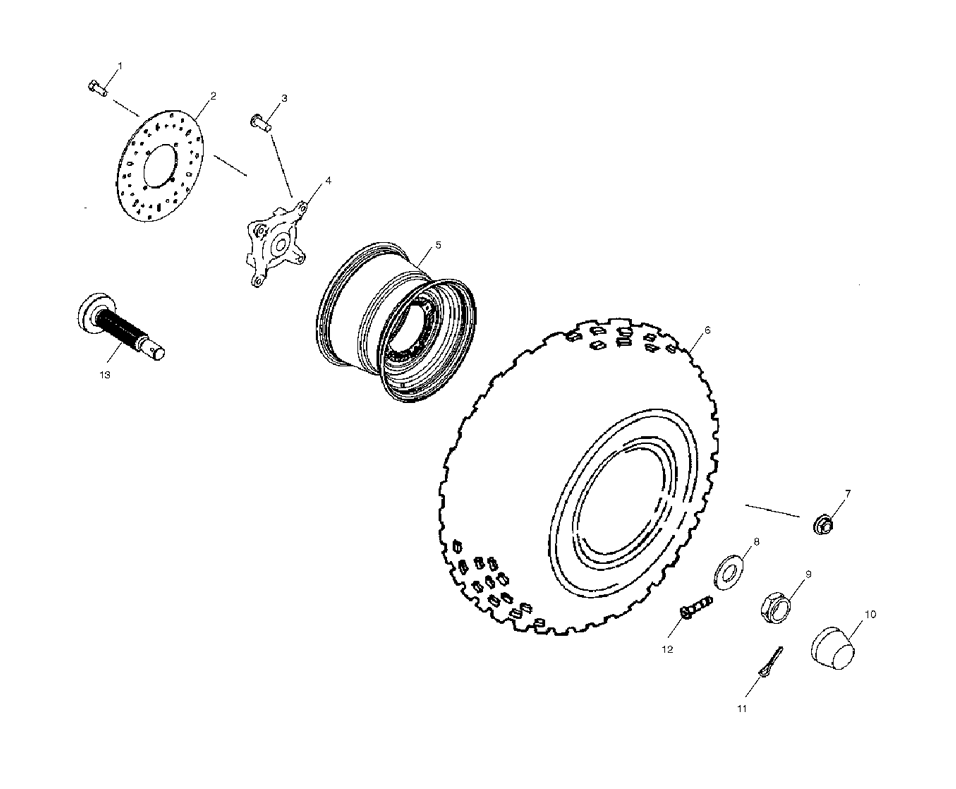

WHEEL - FRONT для Polaris RANGER 2X4 SERIES 11 [A11RB42AA] - 2004 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25244314 DISC,BRAKE,FRONTDISC,BRAKE,FRONT
-
37515523 STUD (IF BUILT BEFORE 10/07/02)STUD (IF BUILT BEFORE 10/07/02)
-
37515513 STUD (IF BUILT AFTER 10/07/02)STUD (IF BUILT AFTER 10/07/02)
-
45131935 HUB-WHEEL,4WD,MACHHUB-WHEEL,4WD,MACH
-
51520349-067 RIM,FRONT,12X6,10GA,BLKRIM,FRONT,12X6,10GA,BLK
-
65411397 TIRE,F. 25X10-12TIRE,F. 25X10-12
-
77542459 NUT, FLANGEDNUT, FLANGED
-
87556004 WASHERWASHER
-
97542810 NUT, SLOTTEDNUT, SLOTTED
-
105411164 HUB-DUST COVERHUB-DUST COVER
-
117661401 PIN,COTTERPIN,COTTER
-
121525017 VALVE, RIMVALVE, RIM
-
131821088 SPINDLE-FRONTSPINDLE-FRONT
