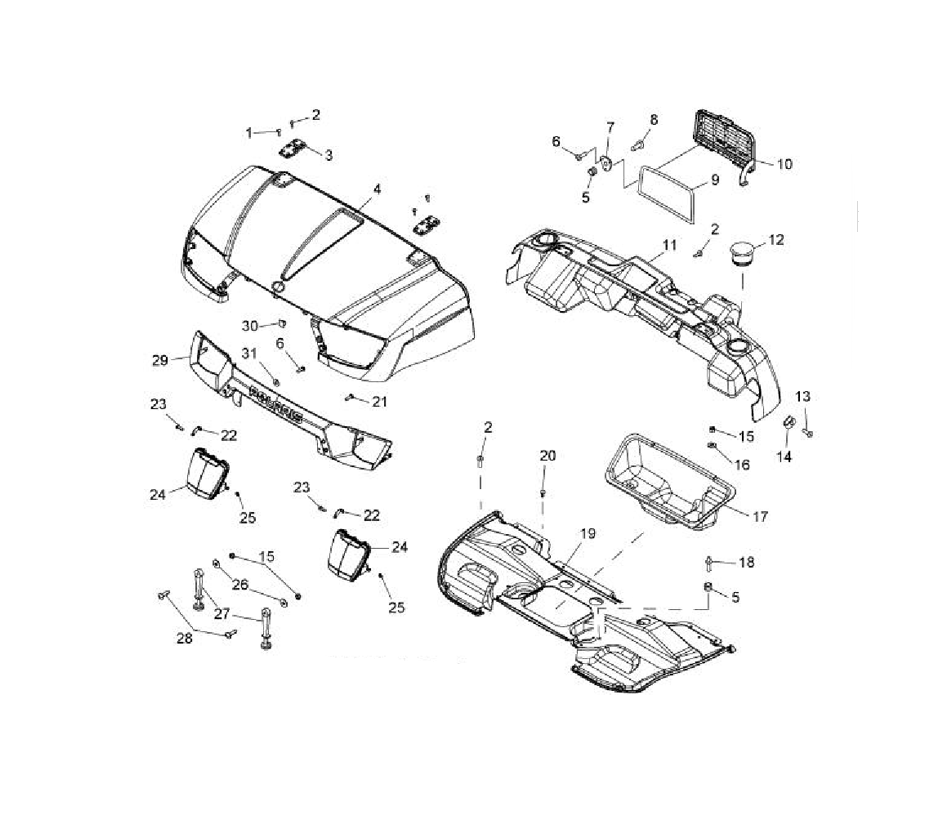

HOOD для Polaris RANGER 500 2X4 RED [R06RB50AA] - 2006 года выпуска
-
№АртикулНазвание
-
17518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
27517685 SCREWSCREW
-
35434057 HINGE, ASM.HINGE, ASM.
-
45435703-195 HOOD-GREENHOOD-GREEN
-
55412504 GROMMET-RUBBER, MOUNT,25''GROMMET-RUBBER, MOUNT,25''
-
67512026 SCREWSCREW
-
75910119 PLATE-CATCHPLATE-CATCH
-
85246693 PIN-CATCHPIN-CATCH
-
95521667 SEAL-GLOVEBOXSEAL-GLOVEBOX
-
105434719-195 COVER-GLOVEBOX, EB GREENCOVER-GLOVEBOX, EB GREEN
-
115435756-195 DASH-RANGER, 500, EB. GREENDASH-RANGER, 500, EB. GREEN
-
125434763 HOLDER-CUPHOLDER-CUP
-
137517561 SCREWSCREW
-
147670157 NUT-#10, U-TYPE,AB(.025.150)NUT-#10, U-TYPE,AB(.025.150)
-
157542122 NUT-NYLOKNUT-NYLOK
-
167558221 WASHERWASHER
-
175435922 BOX-STORAGEBOX-STORAGE
-
185020663 PINPIN
-
195435685 LINER-HOODLINER-HOOD
-
207670090 CLIP, PLASTIC DART,NYLONCLIP, PLASTIC DART,NYLON
-
217518238 SCR-10X5/8-HI/LO, PN-T25,TRX-MSCR-10X5/8-HI/LO, PN-T25,TRX-M
-
225248655 BRKT-HEADLIGHTBRKT-HEADLIGHT
-
237512084 SCREWSCREW
-
242410503 ASM-HEADLIGHTASM-HEADLIGHT
-
244011029 BULB-HEADLIGHT, 35/35 WATTBULB-HEADLIGHT, 35/35 WATT
-
255410163 O RINGO RING
-
267555859 WASHER, FLATWASHER, FLAT
-
275410370 STRAP, HOOD LATCHSTRAP, HOOD LATCH
-
287517230 SCREWSCREW
-
295435728-070 GRILLE-HOOD, BLACKGRILLE-HOOD, BLACK
-
307670134 CLIP-WIRE, ADHESIVE BACK,1/2''CLIP-WIRE, ADHESIVE BACK,1/2''
-
317558201 WASHER, FLATWASHER, FLAT
