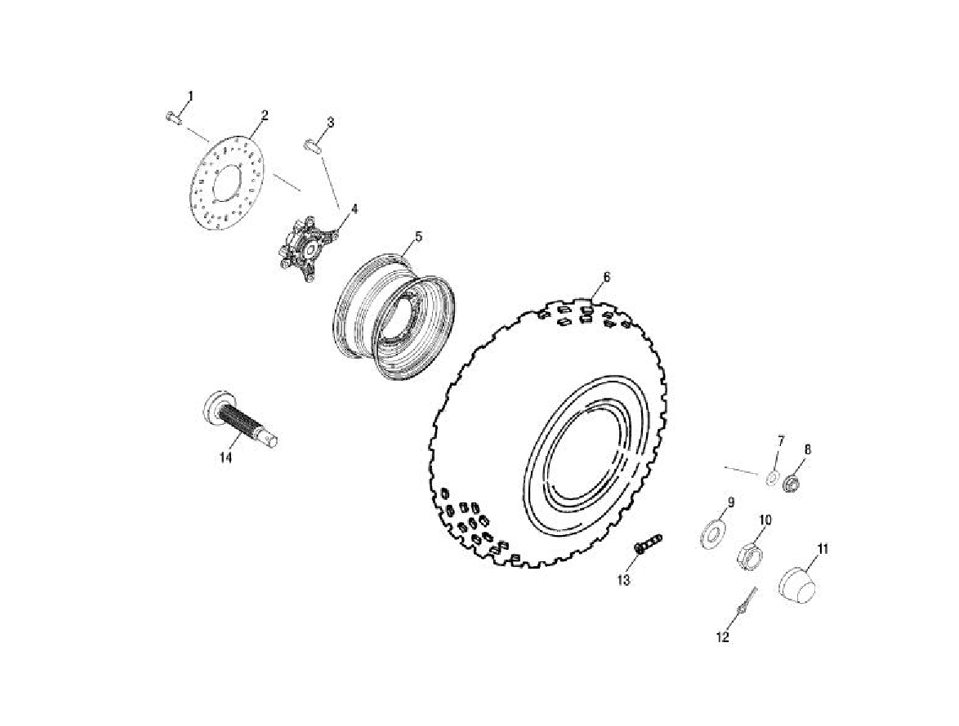

WHEEL - FRONT для Polaris RANGER 500 2X4 RED [R06RB50AA] - 2006 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25244314 DISC, BRAKE,FRONTDISC, BRAKE,FRONT
-
37515513 STUDSTUD
-
45131935 HUB-WHEEL, 4WD,MACHHUB-WHEEL, 4WD,MACH
-
51520796-067 RIM, FRONT,12X6,10GA, BLACKRIM, FRONT,12X6,10GA, BLACK
-
65411397 TIRE, F. 25X10-12TIRE, F. 25X10-12
-
77556242 WASHER-.385X.88X.075, FL-Y THRWASHER-.385X.88X.075, FL-Y THR
-
87542459 NUT, FLANGEDNUT, FLANGED
-
97556004 WASHERWASHER
-
107542810 NUT, SLOTTEDNUT, SLOTTED
-
115411164 HUB-DUST COVERHUB-DUST COVER
-
127661402 PIN, COTTERPIN, COTTER
-
131525017 VALVE, RIMVALVE, RIM
-
141821088 SPINDLE-FRONT (2X4)SPINDLE-FRONT (2X4)
Все узлы модели:
- AIR BOX ASSY.
- BOX ASSY.
- BOX MOUNTING
- BRAKE - FOOT
- BRAKE - PARK
- BRAKE CALIPER - FRONT
- BRAKE CALIPER - REAR
- BRAKE LINES W/ MASTER CYLINDER
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CHASSIS AND BODY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DRIVE SHAFT - REAR (LEFT/RIGHT)
- ELECTRICAL/BATTERY
- ENGINE AND CLUTCH AIR INTAKE
- EXHAUST SYSTEM
- FLYWHEEL COVER
- FRAME W/ CAB
- FUEL TANK
- GEAR SELECTOR
- GEARCASE
- GEARCASE - INTERNAL COMPONENTS
- GEARCASE - OUTPUT SHAFT
- GEARCASE - REAR
- HOOD
- MAGNETO
- MOLDINGS
- MOUNTING - ENGINE
- MOUNTING - REAR GEARCASE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK
- PARK BRAKE PEDAL
- PROP SHAFT - REAR
- SEAT W/ BASE
- STABILIZER BAR - REAR
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- TAILGATE
- THROTTLE
- TOOL KIT
- WATER PUMP
- • WHEEL - FRONT
- WHEEL - REAR
