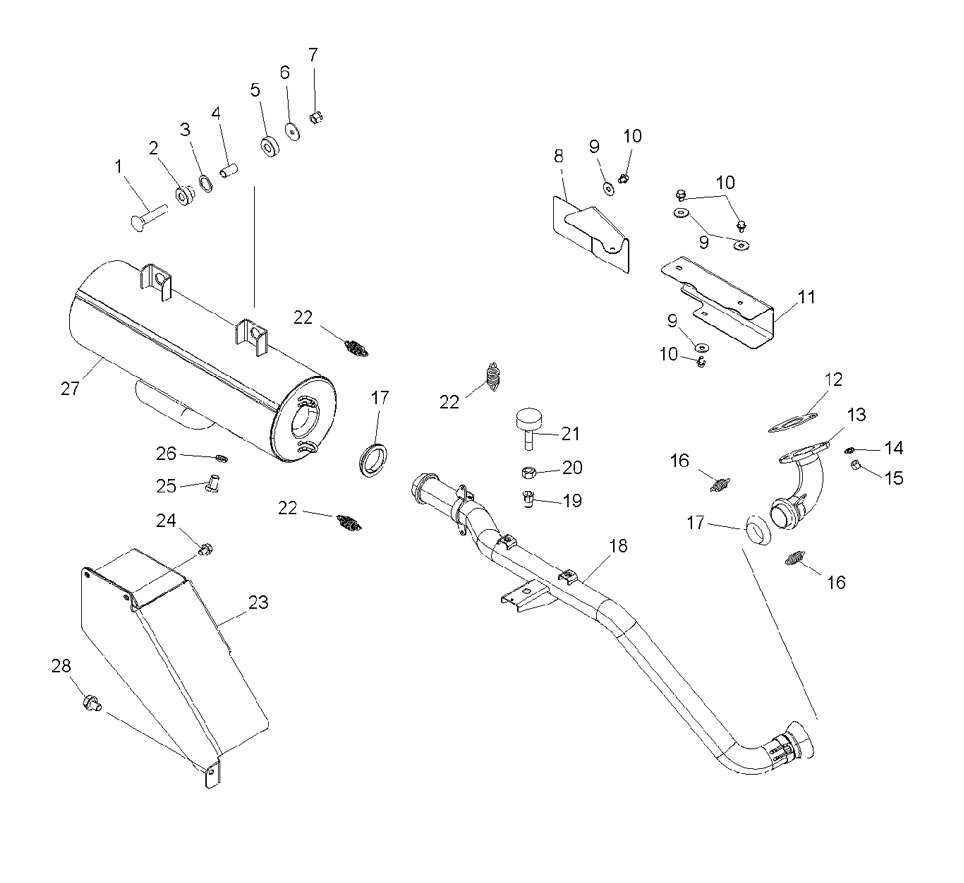

EXHAUST SYSTEM для Polaris RANGER 500 2X4 RED [R07RB50AA] - 2007 года выпуска
-
№АртикулНазвание
-
17515316 BOLTBOLT
-
25412508 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
37555863 WASHERWASHER
-
45010192 BUSHINGBUSHING
-
55410436 WASHER,RUBBERWASHER,RUBBER
-
67555716 WASHERWASHER
-
77542324 NUT,NYLOKNUT,NYLOK
-
85248786 SHIELD-HEAT,EXHAUST,SIDESHIELD-HEAT,EXHAUST,SIDE
-
97555935 WASHERWASHER
-
107515197 SCREWSCREW
-
115246455 SHIELD-HEAT,EXHAUST,TOPSHIELD-HEAT,EXHAUST,TOP
-
123085075 ASM.,GASKET(EXHAUST)ASM.,GASKET(EXHAUST)
-
131261688-029 WELD-MANIFOLD 1.625, BLACKWELD-MANIFOLD 1.625, BLACK
-
143080530 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
153080285 NUTNUT
-
167041804 SPRINGSPRING
-
175243518 SEAL,EXHAUSTSEAL,EXHAUST
-
181261450-029 TUBE,EXHAUST, BLACKTUBE,EXHAUST, BLACK
-
197547101 NUTSERT-5/16-18(.027-.150),HXYNUTSERT-5/16-18(.027-.150),HXY
-
207542301 NUT HEXNUT HEX
-
213021522 MOUNT-TORQUE STOPMOUNT-TORQUE STOP
-
227041687 SPRINGSPRING
-
235248491 SHIELD-HEAT,TANKSHIELD-HEAT,TANK
-
247517386 SCREWSCREW
-
257512666 BOLTBOLT
-
267556230 WASHER-CLEAN OUT .51X.75X.09WASHER-CLEAN OUT .51X.75X.09
-
271261298-029 SILENCER, BLACKSILENCER, BLACK
-
287515399 SCREWSCREW
