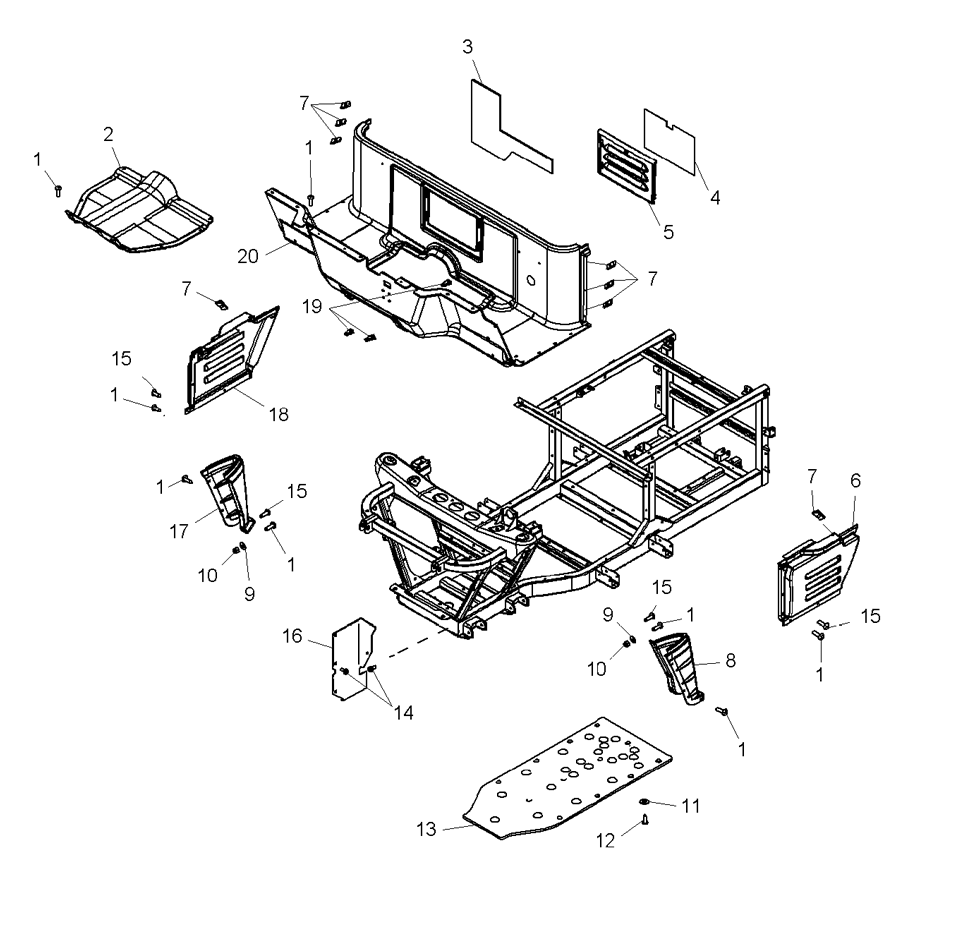

MOLDINGS для Polaris RANGER 500 2X4 RED [R07RB50AA] - 2007 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
25435261 COVER-DRIVE SHAFT,FLOORBOARD [IF BUILT BEFORE 8/01/06]COVER-DRIVE SHAFT,FLOORBOARD [IF BUILT BEFORE 8/01/06]
-
25436402 COVER-DRIVE SHAFT,FLOOR [IF BUILT AFTER 8/01/06]COVER-DRIVE SHAFT,FLOOR [IF BUILT AFTER 8/01/06]
-
35812695 FOIL-HEAT SHIELD,FLOORFOIL-HEAT SHIELD,FLOOR
-
45812694 FOIL-HEAT SHIELDFOIL-HEAT SHIELD
-
52632972 FLOOR ASM,DOG HOUSE COVER [INCL. 4]FLOOR ASM,DOG HOUSE COVER [INCL. 4]
-
65435647-070 FENDER-REAR, LEFT HAND, BLACKFENDER-REAR, LEFT HAND, BLACK
-
77670057 NUT, SPEED [IF BUILT AFTER 8/01/06]NUT, SPEED [IF BUILT AFTER 8/01/06]
-
77670057 NUT, SPEED (IF BUILT AFTER 8/01/06)NUT, SPEED (IF BUILT AFTER 8/01/06)
-
85435886-070 FENDER-FRONT, LEFT HAND, BLACKFENDER-FRONT, LEFT HAND, BLACK
-
97555859 WASHER, FLAT [IF BUILT BEFORE 8/01/06]WASHER, FLAT [IF BUILT BEFORE 8/01/06]
-
107542122 NUT-NYLOK [IF BUILT BEFORE 8/01/06]NUT-NYLOK [IF BUILT BEFORE 8/01/06]
-
117556065 WASHER-WASHER-
-
127517386 SCREWSCREW
-
135812704 PLATE-SKID,4X4PLATE-SKID,4X4
-
147512084 SCREWSCREW
-
157518158 SCR-#14X1 HI/LO-PH-PN TRX-M [IF BUILT AFTER 8/01/06]SCR-#14X1 HI/LO-PH-PN TRX-M [IF BUILT AFTER 8/01/06]
-
165436534 PANEL-WHEEL WELL, LEFT HANDPANEL-WHEEL WELL, LEFT HAND
-
165436535 PANEL-WHEEL WELL, RIGHT HANDPANEL-WHEEL WELL, RIGHT HAND
-
175435887-070 FENDER-FRONT, RIGHT HAND, BLACKFENDER-FRONT, RIGHT HAND, BLACK
-
185435648-070 FENDER-REAR, RIGHT HAND, BLACKFENDER-REAR, RIGHT HAND, BLACK
-
197670145 NUT-1/4-20,U-TYPE(1.56-.190)NUT-1/4-20,U-TYPE(1.56-.190)
-
202633365 ASM-FLOOR,MAIN,RANGER [INCL. 3,19 AND FOIL] [IF BUILT BEFORE 8/01/06]ASM-FLOOR,MAIN,RANGER [INCL. 3,19 AND FOIL] [IF BUILT BEFORE 8/01/06]
-
202633434 ASM-FLOOR,MAIN,RANGER [INCL. 3,19 AND FOIL] [IF BUILT AFTER 8/01/06]ASM-FLOOR,MAIN,RANGER [INCL. 3,19 AND FOIL] [IF BUILT AFTER 8/01/06]
-
205436681 FRONT COVER [IF BUILT BEFORE 8/01/06]FRONT COVER [IF BUILT BEFORE 8/01/06]
-
205436816 FRONT COVER [IF BUILT AFTER 8/01/06]FRONT COVER [IF BUILT AFTER 8/01/06]
