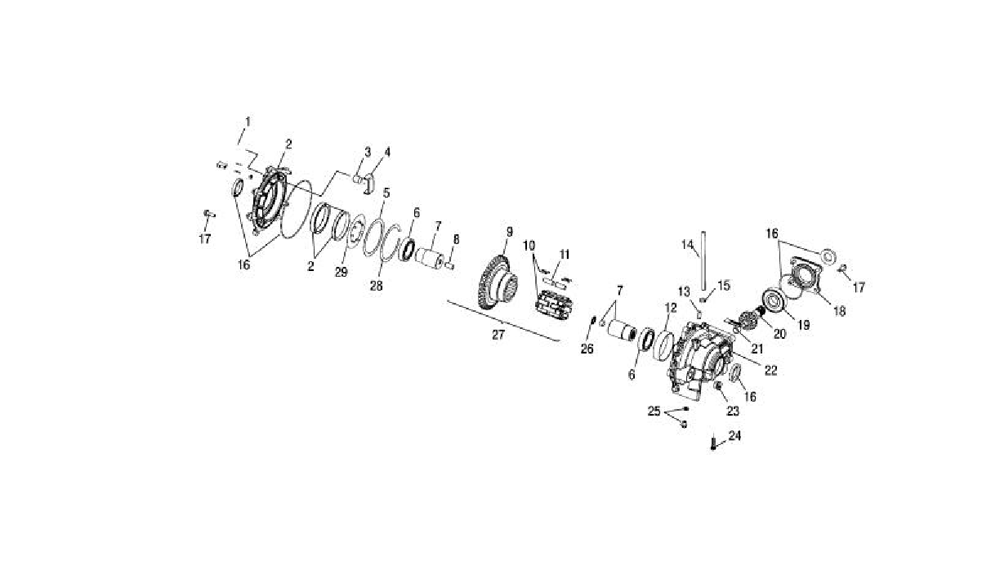

GEARCASE - FRONT для Polaris RANGER 500 EFI 4X4 RED [R07RH50AR] - 2007 года выпуска
-
№АртикулНазвание
-
-1332428 ASM-GEARCASE,FRONT,BEARINGLESSASM-GEARCASE,FRONT,BEARINGLESS
-
-3233955 KIT-BOLTKIT-BOLT
-
13234163 SCREW-SETSCREW-SET
-
23234159 ASM-COVER PLATE (INCL. OUTPUT COVER, INSERT AND COIL)ASM-COVER PLATE (INCL. OUTPUT COVER, INSERT AND COIL)
-
33234375 BUTTON-THRUSTBUTTON-THRUST
-
43234165 PLATE-THRUSTPLATE-THRUST
-
53234161 PLATE-ARMATURE,SHIMPLATE-ARMATURE,SHIM
-
63233926 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
73233953 ASM-RACE/OUTPUT HUB (INCL. 26)ASM-RACE/OUTPUT HUB (INCL. 26)
-
83233928 PIN-DOWEL,1/2''DIA X 1''PIN-DOWEL,1/2''DIA X 1''
-
93234376 CLUTCH-HOUSING/RING GEARCLUTCH-HOUSING/RING GEAR
-
103234377 ASM-ROLL CAGE AND ARM PLATE (INCL. 29, SPRING AND ROLL CAGE)ASM-ROLL CAGE AND ARM PLATE (INCL. 29, SPRING AND ROLL CAGE)
-
113233957 KIT-ROLLERKIT-ROLLER
-
123234378 COULD NOT FINDCOULD NOT FIND
-
133234379 FITTING-VENTFITTING-VENT
-
148450003-1525 LINE,FUEL (1/4 ID 1525 CM.)LINE,FUEL (1/4 ID 1525 CM.)
-
157080307 CLAMP,HOSECLAMP,HOSE
-
163233956 KIT-SEAL,GEARCASE-FRONT (INCL. O-RINGS AND SEALS)KIT-SEAL,GEARCASE-FRONT (INCL. O-RINGS AND SEALS)
-
173233918 COULD NOT FINDCOULD NOT FIND
-
183233947 COVER-INPUT,MACHCOVER-INPUT,MACH
-
193234112 BEARING-DEEP GROVE ROLLER BALLBEARING-DEEP GROVE ROLLER BALL
-
203233944 SHAFT-PINION,11T,6.75DP,MACHSHAFT-PINION,11T,6.75DP,MACH
-
233233942 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
247518364 BOLT-3/8-16X7/8 HEX FLANGE GR5BOLT-3/8-16X7/8 HEX FLANGE GR5
-
253233951 ASM-DRAIN PLUG (INCL. PLUG AND WASHER)ASM-DRAIN PLUG (INCL. PLUG AND WASHER)
-
263233929 BEARING-NEEDLE ROLLER THRUSTBEARING-NEEDLE ROLLER THRUST
-
273234380 ASM-CLUTCH (INCL. 9-11)ASM-CLUTCH (INCL. 9-11)
-
283234162 RING-RETAINING,INTERNALRING-RETAINING,INTERNAL
-
293234160 ARMATURE PLATEARMATURE PLATE
