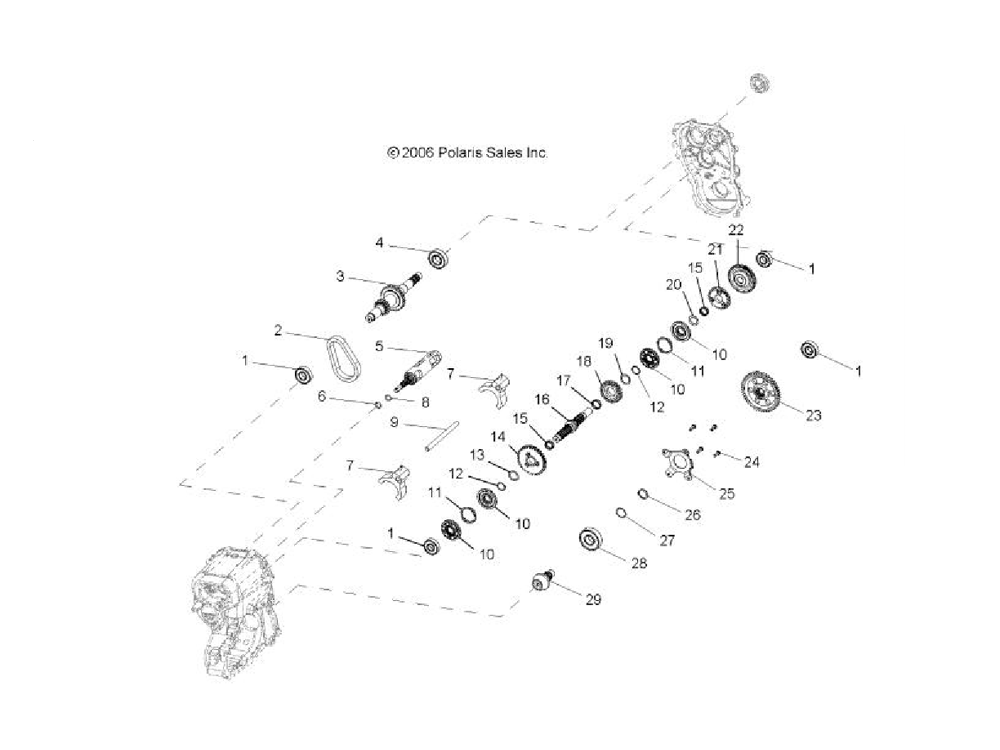

TRANSMISSION - INTERNAL для Polaris RANGER 500 EFI 4X4 RED [R07RH50AR] - 2007 года выпуска
-
№АртикулНазвание
-
-1332351 GEARCASE ASM, MAIN 4X4, 6X6GEARCASE ASM, MAIN 4X4, 6X6
-
13233018 BEARINGBEARING
-
23233036 CHAIN,SILENT,34PCHAIN,SILENT,34P
-
33233889 SUBASM-INPUT SHAFTSUBASM-INPUT SHAFT
-
43233019 BEARINGBEARING
-
53234212 DRUM,SHIFT,SHAFTDRUM,SHIFT,SHAFT
-
63233836 O-RINGO-RING
-
73234220 SUBASSY-SHIFT FOR W/PARKSUBASSY-SHIFT FOR W/PARK
-
83233840 O-RINGO-RING
-
93233860 RAIL-SHIFT SHAFT,C VERSIONRAIL-SHIFT SHAFT,C VERSION
-
103233875 DOG-ENGAGEMENT,6 FACEDOG-ENGAGEMENT,6 FACE
-
113234144 SPRING-WAVE 1.35 ID X .353SPRING-WAVE 1.35 ID X .353
-
123233850 RING-RETAININGRING-RETAINING
-
133233851 WASHERWASHER
-
143233852 GEAR-33T,6 FACE ENGAGEMENTGEAR-33T,6 FACE ENGAGEMENT
-
153233718 BEARING,NDL,SPLIT CAGEBEARING,NDL,SPLIT CAGE
-
163233892 SHAFT-REVERSESHAFT-REVERSE
-
173233103 BEARING, NEEDLEBEARING, NEEDLE
-
183233893 SPROCKET-24T,6 FACESPROCKET-24T,6 FACE
-
193233894 WASHERWASHER
-
203233855 WASHERWASHER
-
213233856 GEAR-30T,6 FACEGEAR-30T,6 FACE
-
223234138 GEAR-HELICAL,MID OUTPUT,47TGEAR-HELICAL,MID OUTPUT,47T
-
233234139 GEAR-HELICAL,MID OUTPUT,60TGEAR-HELICAL,MID OUTPUT,60T
-
243234086 SCREW-TORX TRUSS HDSCREW-TORX TRUSS HD
-
253234122 COVER-BEARINGCOVER-BEARING
-
263233106 RING, SNAPRING, SNAP
-
273233357 SPACERSPACER
-
283233607 BEARING,BALLBEARING,BALL
-
293230001 SUBASM-LAPPED BEVEL,GEAR SET (INCL. REF. 6 FROM TRANSMISSION - OUTPUT SHAFT)SUBASM-LAPPED BEVEL,GEAR SET (INCL. REF. 6 FROM TRANSMISSION - OUTPUT SHAFT)
