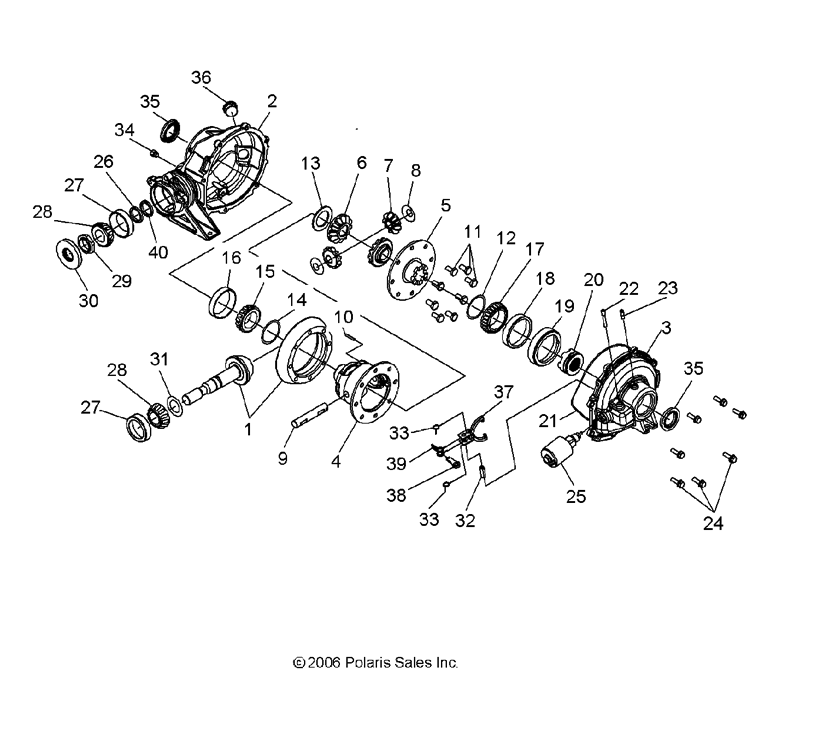

GEARCASE - REAR для Polaris RANGER 500 EFI 4X4 EB GREEN [R08RH50AF] - 2008 года выпуска
-
№АртикулНазвание
-
-2875333 KIT-DIFFERENTIAL,SHIM (INCL. 12,14)KIT-DIFFERENTIAL,SHIM (INCL. 12,14)
-
-2203511 KIT-HOUSING ASM. (INCL. 1,2,11,23,26-31,35,40)KIT-HOUSING ASM. (INCL. 1,2,11,23,26-31,35,40)
-
-1332505 ASM-GEARCASE,REAR,DIFFASM-GEARCASE,REAR,DIFF
-
11332356 ASM-HYPOID GEARASM-HYPOID GEAR
-
22203498 HOUSING-CARRIERHOUSING-CARRIER
-
32203499 COVER-CARRIERCOVER-CARRIER
-
45134901 CASE-HALF,DIFFCASE-HALF,DIFF
-
55134906 COVER-HALF,DIFF CASECOVER-HALF,DIFF CASE
-
65134904 GEAR-SIDE,DIFFGEAR-SIDE,DIFF
-
75134903 GEAR-PINION,MATE,DIFFGEAR-PINION,MATE,DIFF
-
87556347 WASHER-THRUST,PINIONWASHER-THRUST,PINION
-
95134902 PIN-CROSS,DIFFPIN-CROSS,DIFF
-
107661164 PIN-ROLL,DIFFPIN-ROLL,DIFF
-
117518173 BOLT-HEX 41221BOLT-HEX 41221
-
137556346 WASHER-THRST,SIDE,GEARWASHER-THRST,SIDE,GEAR
-
153514434 BEARING-CONE,DIFFBEARING-CONE,DIFF
-
163514433 BEARING-DIFFBEARING-DIFF
-
172203500 ROLLER-BEARINGROLLER-BEARING
-
182203501 CUP-BEARINGCUP-BEARING
-
192203502 COLLAR-BEARING ASM.COLLAR-BEARING ASM.
-
205134907 GEAR-CLUTCHGEAR-CLUTCH
-
215412338 O-RING-HOUSING HALVESO-RING-HOUSING HALVES
-
222203503 PIN-LOCK ASM.PIN-LOCK ASM.
-
237052334 VENT-TUBEVENT-TUBE
-
247518172 BOLT-HEX,FLANGEDBOLT-HEX,FLANGED
-
252410368 SOLENOID-DIFF.LOCKSOLENOID-DIFF.LOCK
-
262203505 KIT-SPACERKIT-SPACER
-
273514431 BEARING-CUP,PINIONBEARING-CUP,PINION
-
283514432 BEARING-CONE,PINIONBEARING-CONE,PINION
-
297547243 NUT-PINIONNUT-PINION
-
303610102 SEAL-OIL,PINIONSEAL-OIL,PINION
-
322203507 BUSHING-LOCK,PINBUSHING-LOCK,PIN
-
337042210 SPRING-RETURN,SHIFTSPRING-RETURN,SHIFT
-
345133731 PLUG-DRAINPLUG-DRAIN
-
353610117 SEAL-OIL,SHAFTSEAL-OIL,SHAFT
-
365133736 PLUG-FILL/CHECKPLUG-FILL/CHECK
-
375133759 YOKE-SHIFTYOKE-SHIFT
-
385133760 LEVER-SHIFTLEVER-SHIFT
-
397042209 SPRING-LEVER,SHIFTSPRING-LEVER,SHIFT
-
402203510 SPACER-PINIONSPACER-PINION
