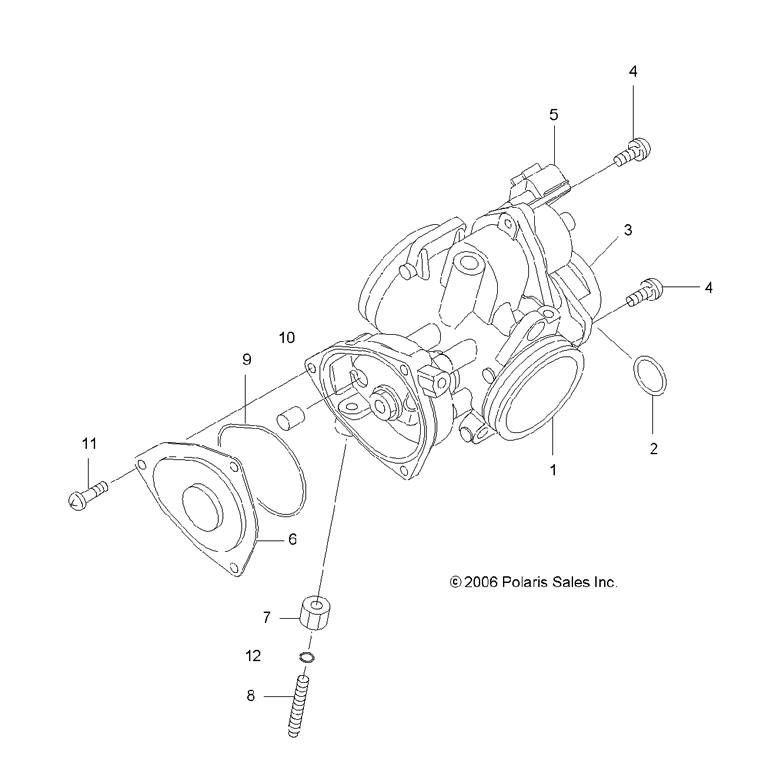

THROTTLE BODY для Polaris RANGER 500 EFI 4X4 EB GREEN [R08RH50AF] - 2008 года выпуска
-
№АртикулНазвание
-
13131684 ASM-THROTTLE BODYASM-THROTTLE BODY
-
23131682 O-RINGO-RING
-
33140173 SENSOR-THROTTLE POSITIONSENSOR-THROTTLE POSITION
-
43131628 SCREWSCREW
-
53131629 MOTOR-ISC STEPPINGMOTOR-ISC STEPPING
-
63131685 COVERCOVER
-
73131644 NUTNUT
-
83131645 SCREW-ADJUSTSCREW-ADJUST
-
93131646 O-RING-TB,MIKUNIO-RING-TB,MIKUNI
-
103130543 GUIDE,CABLEGUIDE,CABLE
-
113131647 SCREWSCREW
-
123131501 O-RINGO-RING
