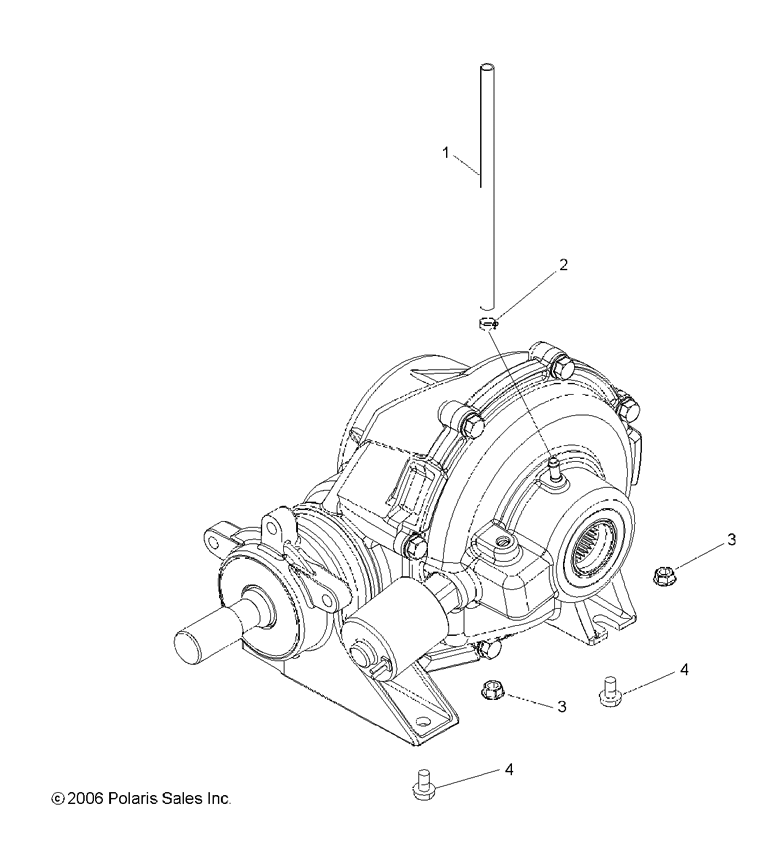

MOUNTING - REAR GEARCASE для Polaris RANGER 500 EFI 4X4 S.RED [R08RH50AR] - 2008 года выпуска
-
№АртикулНазвание
-
-1332505 ASM-GEARCASE,REAR,DIFFASM-GEARCASE,REAR,DIFF
-
18450003-1525 LINE,FUEL,1/4 ID(1525 CM.)LINE,FUEL,1/4 ID(1525 CM.)
-
27080307 CLAMP,HOSECLAMP,HOSE
-
37547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
47518834 SCR-3/8-24X1.0,HXWH,GR5-YSCR-3/8-24X1.0,HXWH,GR5-Y
