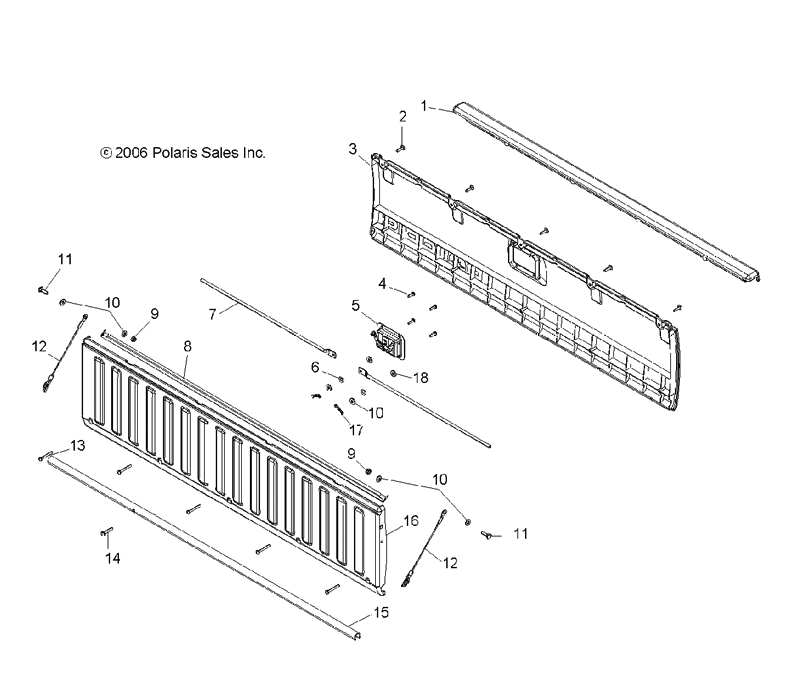

TAILGATE ASM для Polaris RANGER 500 EFI 4X4 S.RED [R08RH50AR] - 2008 года выпуска
-
№АртикулНазвание
-
1202755-070 PANELPANEL
-
15435548-070 CAP-TAILGATE, BLACKCAP-TAILGATE, BLACK
-
27518158 SCR-#14X1 HI/LO-PH-PN TRX-MSCR-#14X1 HI/LO-PH-PN TRX-M
-
35435550-070 PANEL-TAILGATE,OUTER, BLACKPANEL-TAILGATE,OUTER, BLACK
-
47517790 SCR,#10X3/4 HI/LOSCR,#10X3/4 HI/LO
-
57081380 LATCH-PADDLE,TAILGATELATCH-PADDLE,TAILGATE
-
67556358 WASHER-WAVEWASHER-WAVE
-
75134468 RODROD
-
85249473 BRKT-TAILGATEBRKT-TAILGATE
-
97542122 NUT-NYLOKNUT-NYLOK
-
107558301 WASHER, FLATWASHER, FLAT
-
117518376 BOLTBOLT
-
127081215 CABLE-TAILGATECABLE-TAILGATE
-
137518377 SCREWSCREW
-
147517916 SCREWSCREW
-
155134469 TUBE-TAILGATETUBE-TAILGATE
-
165435549-070 PANEL-TAILGATE,INNER, BLACKPANEL-TAILGATE,INNER, BLACK
-
177661644 PIN,HITCHPIN,HITCH
-
187555748 WASHERWASHER
