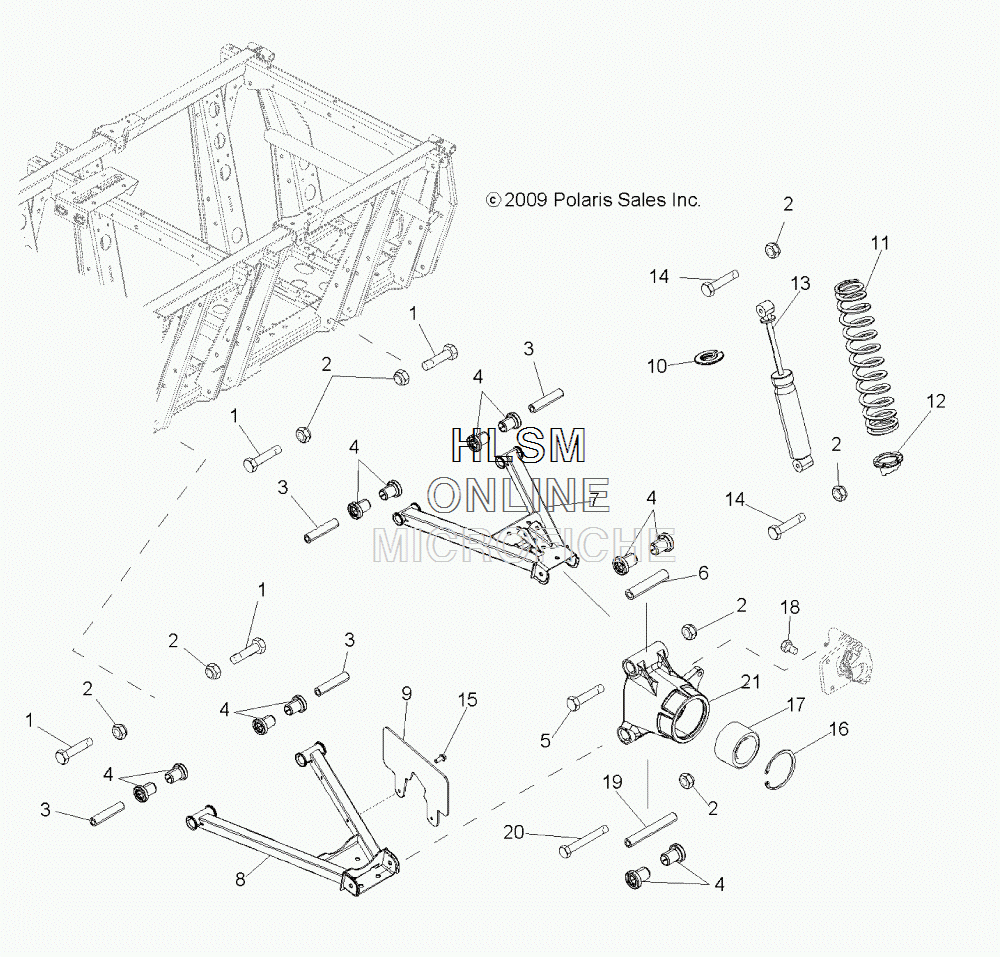

A-ARMS- MID DRIVE AND REAR DRIVE для Polaris RANGER 6X6 800 EFI - SAGEBRUSH GREEN METALLIC [R11HR76AG] - 2011 года выпуска
-
№АртикулНазвание
-
17518560 BOLT-M10X1.25X95, HXFLG-OLIVE DBOLT-M10X1.25X95, HXFLG-OLIVE D
-
27547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
35335448 TUBE-PIVOT, 73.96MMTUBE-PIVOT, 73.96MM
-
45434548 BUSHING, A-ARM, SHORTBUSHING, A-ARM, SHORT
-
57518566 BOLT-M10X1.25X115, HXFLG-OLIVEDBOLT-M10X1.25X115, HXFLG-OLIVED
-
65136580 SHAFT, A-ARM, UPPER, REARSHAFT, A-ARM, UPPER, REAR
-
71017349-067 ARM, CONTROL, UPPER, REAR (BLACK)ARM, CONTROL, UPPER, REAR (BLACK)
-
81017351-067 ARM., CONTROL, LOWER, REAR (BLACK)ARM., CONTROL, LOWER, REAR (BLACK)
-
95438639-070 SHIELD, CV, REAR (BLACK)SHIELD, CV, REAR (BLACK)
-
105251753 RETAINER, SPRINGRETAINER, SPRING
-
117043692-067 SPRING-240#/IN, 12.75 LG (BLACK)SPRING-240#/IN, 12.75 LG (BLACK)
-
125253768 CAM, ADJUSTING SPRINGCAM, ADJUSTING SPRING
-
137043556 SHOCK, REARSHOCK, REAR
-
147518563 SPRING-240#/IN, 12.75 LG (BLACK)SPRING-240#/IN, 12.75 LG (BLACK)
-
157512084 SCREWSCREW
-
167710440 RING, RETAININGRING, RETAINING
-
173585502 BEARING, CARRIER, WHEEL (BUILT 10/30/09 AND BEFORE)BEARING, CARRIER, WHEEL (BUILT 10/30/09 AND BEFORE)
-
173514635 BEARING-WHEEL, 40X74X40MM (BUILT 10/31/09 AND AFTER)BEARING-WHEEL, 40X74X40MM (BUILT 10/31/09 AND AFTER)
-
187518558 BOLT-M10X1.25X20, HXFLG-OLV D (REAR CALIPER ATTACH)BOLT-M10X1.25X20, HXFLG-OLV D (REAR CALIPER ATTACH)
-
195136581 SHAFT, A-ARM, LOWER, REARSHAFT, A-ARM, LOWER, REAR
-
207518562 BOLT-M10X1.25X140, HXFLG-OLV DBOLT-M10X1.25X140, HXFLG-OLV D
-
215136914 CARRIER, BEARING, WHEEL (LEFT)CARRIER, BEARING, WHEEL (LEFT)
-
215136915 CARRIER, BEARING, WHEEL (RIGHT)CARRIER, BEARING, WHEEL (RIGHT)
