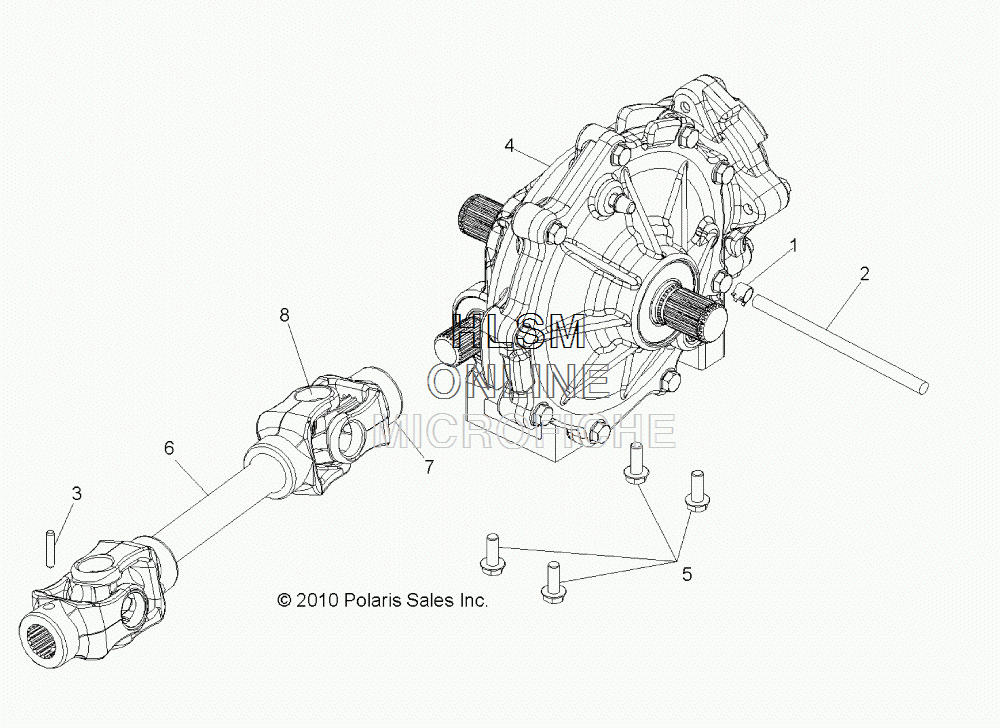

MID GEARCASE MOUNTING для Polaris RANGER 6X6 800 EFI - SAGEBRUSH GREEN METALLIC [R11HR76AG] - 2011 года выпуска
-
№АртикулНазвание
-
17080307 CLAMP, HOSECLAMP, HOSE
-
28450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
37661913 PIN, SPRINGPIN, SPRING
-
41332796 ASM., MID GEARCASE 6X6ASM., MID GEARCASE 6X6
-
57518364 BOLT-3/8-16X7/8 HEX FLANGE GR5BOLT-3/8-16X7/8 HEX FLANGE GR5
-
61332756 ASM., PROP SHAFT, MIDASM., PROP SHAFT, MID
-
71350039 YOKE, REAR PROP SHAFTYOKE, REAR PROP SHAFT
-
82202015 KIT, CROSS AND BEARING, NONGREASEKIT, CROSS AND BEARING, NONGREASE
