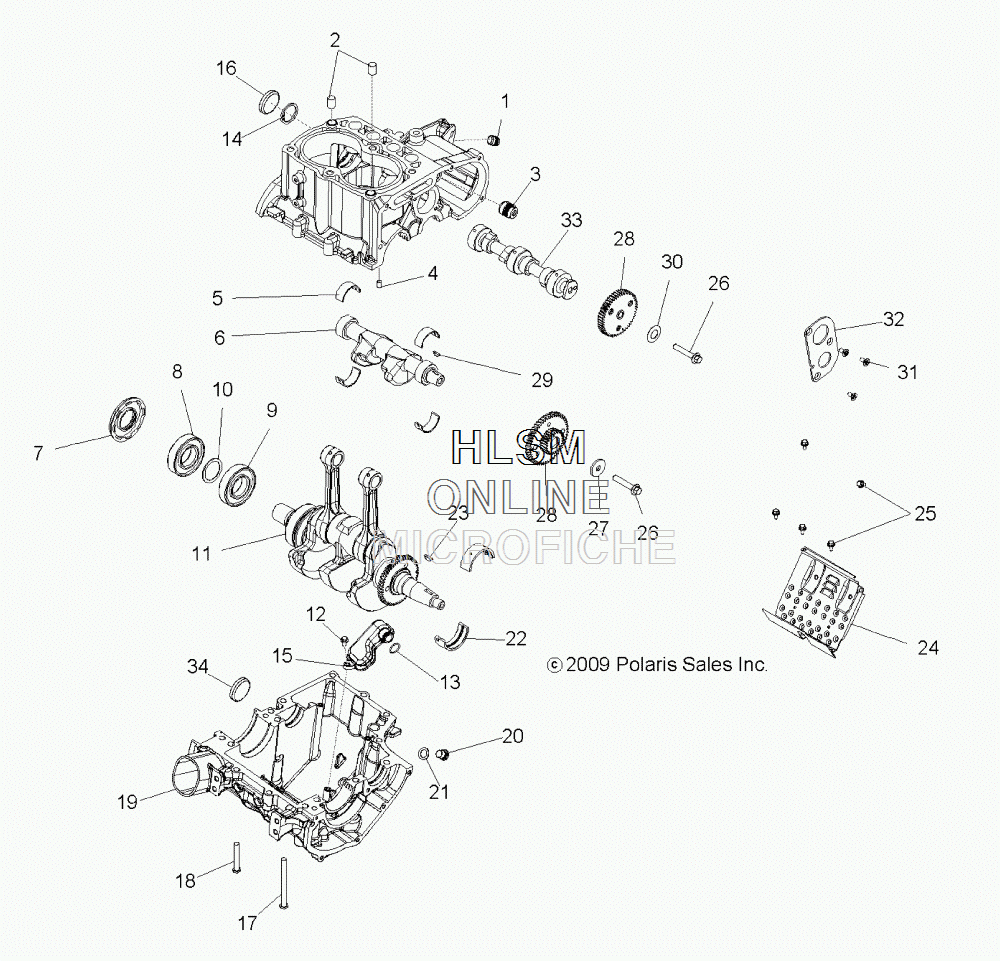

CRANKCASE AND CRANKSHAFT для Polaris RANGER RZR EPS INTL - BRIGHT PEARL WHITE [R11VM76FX] - 2011 года выпуска
-
№АртикулНазвание
-
17051531 PLUG, EXPANSION, 9MM, 500PSIPLUG, EXPANSION, 9MM, 500PSI
-
27661175 DOWEL-HOL, M16X12, 0600089DOWEL-HOL, M16X12, 0600089
-
37052288 PLUG-EXPANSION, 13MM, 500 PSIPLUG-EXPANSION, 13MM, 500 PSI
-
47663001 PIN, DOWELPIN, DOWEL
-
55132753 BEARING, BALANCE SHAFT JOURNALBEARING, BALANCE SHAFT JOURNAL
-
65134837 SHAFT, BALANCE (BUILT 9/05/10 AND BEFORE)SHAFT, BALANCE (BUILT 9/05/10 AND BEFORE)
-
65137337 SHAFT, BALANCE (BUILT 9/06/10 AND AFTER)SHAFT, BALANCE (BUILT 9/06/10 AND AFTER)
-
75412676 SEAL-FLANGE 35X72X7 REPSEAL-FLANGE 35X72X7 REP
-
83514361 BEARING, BALLBEARING, BALL
-
93514318 BEARING, BALLBEARING, BALL
-
107556194 BUSHING-35X44X3.00 MM-B (10)BUSHING-35X44X3.00 MM-B (10)
-
112203068 KIT, CRANKSHAFT (INCL. 8-11, 22)KIT, CRANKSHAFT (INCL. 8-11, 22)
-
127516603 BOLTBOLT
-
135413013 O-RING, 0.551X0.070O-RING, 0.551X0.070
-
147710512 RING-RETAINING, 1 5/8 (10)RING-RETAINING, 1 5/8 (10)
-
151204082 ASM., OIL PICKUP (INCL. 13)ASM., OIL PICKUP (INCL. 13)
-
163060004 PLUG, EXPANSIONPLUG, EXPANSION
-
177517792 SCREW-M8X1.25X90 HX/FL-YSCREW-M8X1.25X90 HX/FL-Y
-
187517793 SCREW-M8X1.25X50 HX/FL-YSCREW-M8X1.25X50 HX/FL-Y
-
192204399 KIT, CRANKCASE (INCL. 1-5, 12-18, 20-22, 24, 25, 34, FROMKIT, CRANKCASE (INCL. 1-5, 12-18, 20-22, 24, 25, 34, FROM
-
207052306 PLUG, SOCKET, M12X1.5 DIN 908APLUG, SOCKET, M12X1.5 DIN 908A
-
215812232 WASHER-19X12X1.3-COPPER (10)WASHER-19X12X1.3-COPPER (10)
-
223585704 BEARING, MAIN JOURNALBEARING, MAIN JOURNAL
-
237721117 KEY, WOODRUFFKEY, WOODRUFF
-
245253617 PLATE, BAFFLEPLATE, BAFFLE
-
257518045 SCREW-M5X.80X8-HX/FL-Y/DSCREW-M5X.80X8-HX/FL-Y/D
-
267517865 SCREW, M8X1.25X45 HX/FL-DSCREW, M8X1.25X45 HX/FL-D
-
277555982 WASHER, RETAINING, 8.5X28X3WASHER, RETAINING, 8.5X28X3
-
282203106 KIT, GEAR SETKIT, GEAR SET
-
297721131 KEY, WOODRUFFKEY, WOODRUFF
-
307556183 WASHER-SPRING, 1.1X.559X.0315WASHER-SPRING, 1.1X.559X.0315
-
317517598 SCREWSCREW
-
325244286 PLATE, THRUSTPLATE, THRUST
-
333022287 CAMSHAFT, PHASE SENSING, HO (BUILT 9/05/10 AND BEFORE)CAMSHAFT, PHASE SENSING, HO (BUILT 9/05/10 AND BEFORE)
-
332204396 KIT, CAMSHAFT (INCL. CAM AND LIFTERS) (BUILT 9/06/10 AND AFTER)KIT, CAMSHAFT (INCL. CAM AND LIFTERS) (BUILT 9/06/10 AND AFTER)
-
347051530 PLUG, EXPANSION, 19MMPLUG, EXPANSION, 19MM
