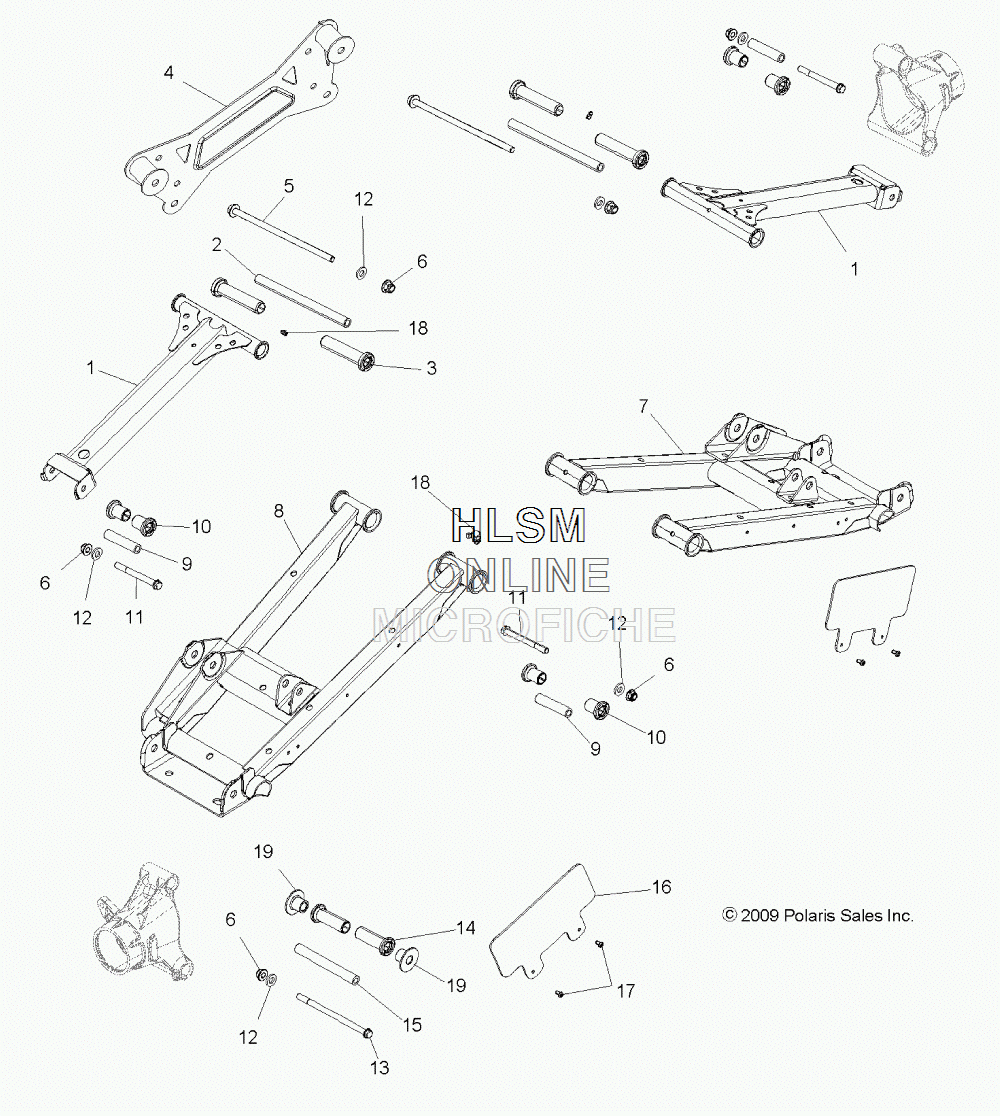

REAR CONTROL ARMS для Polaris RANGER RZR EPS INTL - BRIGHT PEARL WHITE [R11VM76FX] - 2011 года выпуска
-
№АртикулНазвание
-
11017579-458 ARM, CONTROL, UPPER, LT, REAR (MATTE BLACK)ARM, CONTROL, UPPER, LT, REAR (MATTE BLACK)
-
25136468 TUBE-PIVOT, 210.27MMTUBE-PIVOT, 210.27MM
-
35436973 BUSHING-A-ARM, LONG, 102.36MMBUSHING-A-ARM, LONG, 102.36MM
-
41016583-458 BRACE, SUSPENSION, REAR (MATTE BLACK)BRACE, SUSPENSION, REAR (MATTE BLACK)
-
57519086 SCREW-HXFL-M10X1.25X235 10.9 ZODSCREW-HXFL-M10X1.25X235 10.9 ZOD
-
67547333 NUT-M10X1.25, FLG, NYLOC-OLIVE DNUT-M10X1.25, FLG, NYLOC-OLIVE D
-
71017581-458 ARM, CONTROL LOWER, LT, REAR (MATTE BLACK) (LEFT)ARM, CONTROL LOWER, LT, REAR (MATTE BLACK) (LEFT)
-
81017582-458 ARM, CONTROL LOWER, LT, REAR (MATTE BLACK) (RIGHT)ARM, CONTROL LOWER, LT, REAR (MATTE BLACK) (RIGHT)
-
95136100 TUBE-PIVOT, 70.99MM, 10.33IDTUBE-PIVOT, 70.99MM, 10.33ID
-
105436832 BUSHING-CONTROL ARM, 1.285BUSHING-CONTROL ARM, 1.285
-
117519043 SCREW-HXFL-M10X1.25X95 10.9 ZODSCREW-HXFL-M10X1.25X95 10.9 ZOD
-
127556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
137519042 SCREW-HXFL-M10X1.25X165 10.9 ZODSCREW-HXFL-M10X1.25X165 10.9 ZOD
-
145437229 BUSHING, CONTROL ARMBUSHING, CONTROL ARM
-
155136101 TUBE-PIVOT, 107.26MM, 10.33IDTUBE-PIVOT, 107.26MM, 10.33ID
-
165438639-070 SHIELD, CV, REAR (BLACK)SHIELD, CV, REAR (BLACK)
-
177512084 SCREWSCREW
-
187080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
195136102 BUSHING-PIVOT, WEAR, 10.33 DBUSHING-PIVOT, WEAR, 10.33 D
