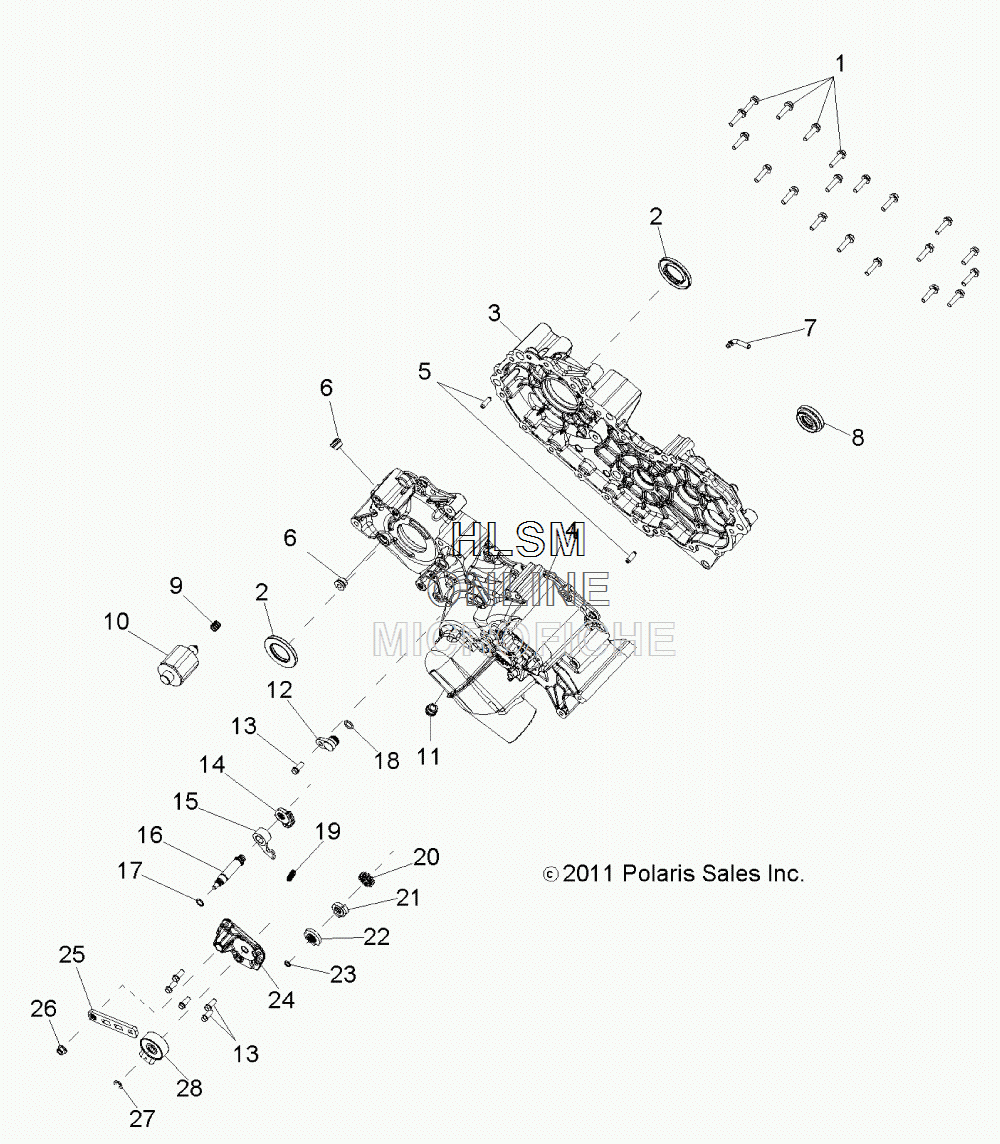

MAIN GEARCASE для Polaris RANGER 4X4 400 [R14RH45AA] - SAGE BRUSH GREEN - 2014 года выпуска
-
№АртикулНазвание
-
-1332981 ASM., MAIN GEARCASE (INCL. ALL)ASM., MAIN GEARCASE (INCL. ALL)
-
13234114 SCREWSCREW
-
23234300 SEAL, TRIPLE LIPSEAL, TRIPLE LIP
-
33235344 COVER, LEFT HANDCOVER, LEFT HAND
-
43235343 CASE, RIGHT HANDCASE, RIGHT HAND
-
53234244 PIN, DOWELPIN, DOWEL
-
63233794 PLUG, HEXPLUG, HEX
-
73234230 TUBE, VENTTUBE, VENT
-
83234851 SEALSEAL
-
93234277 SPRING, COMPRESSIONSPRING, COMPRESSION
-
103234298 SOLENOIDSOLENOID
-
113234529 PLUG, MAGNETICPLUG, MAGNETIC
-
123234938 PLUG, SENSORPLUG, SENSOR
-
133234247 SCREWSCREW
-
143233832 GEAR, SECTOR, 31TGEAR, SECTOR, 31T
-
153233829 PAWL, DETENTPAWL, DETENT
-
163233831 SHAFT, SHIFTSHAFT, SHIFT
-
173233869 O-RINGO-RING
-
183234302 O-RINGO-RING
-
193233830 SPRING, COMPRESSIONSPRING, COMPRESSION
-
203233839 GEAR, SECTOR, 16TGEAR, SECTOR, 16T
-
213234081 DISC, LOCKOUTDISC, LOCKOUT
-
223235045 STAR, DETENTSTAR, DETENT
-
233233076 O-RINGO-RING
-
243234188 COVER, SECTOR GEAR W/PINSCOVER, SECTOR GEAR W/PINS
-
253234950 BELLCRANK, SHIFT, DRUMBELLCRANK, SHIFT, DRUM
-
263233961 NUT, LOCKNUT, LOCK
-
273233834 RING, RETAININGRING, RETAINING
-
283233835 SWITCH, ROTARYSWITCH, ROTARY
