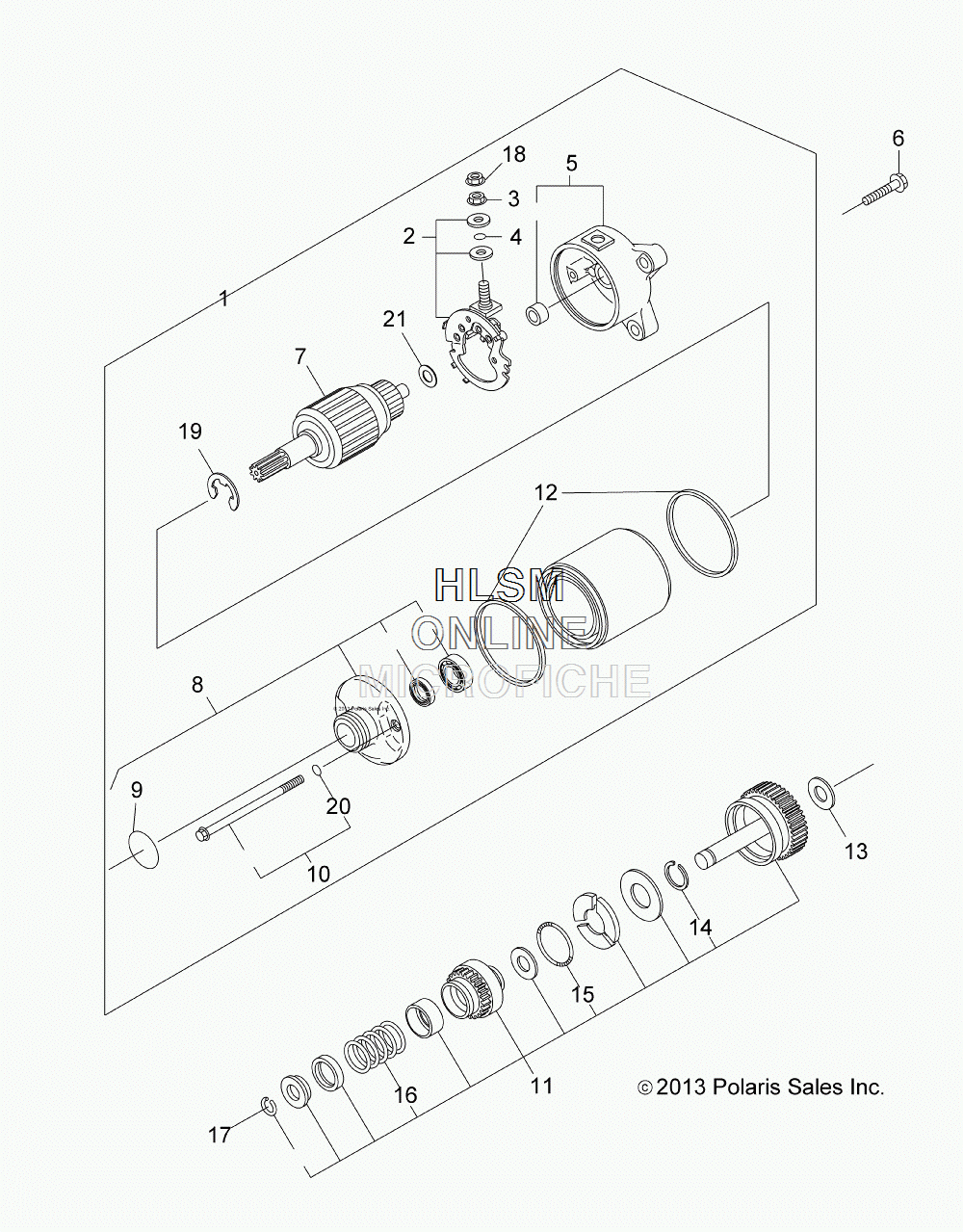

STARTING MOTOR для Polaris RANGER 4X4 400 [R14RH45AA] - SAGE BRUSH GREEN - 2014 года выпуска
-
№АртикулНазвание
-
13090188 MOTOR, STARTERMOTOR, STARTER
-
23090376 BRUSH, CARBON SETBRUSH, CARBON SET
-
33090373 NUT, FLANGENUT, FLANGE
-
43090371 O-RINGO-RING
-
53090374 ASM., BRACKET, REARASM., BRACKET, REAR
-
63084874 BOLT, FLANGEBOLT, FLANGE
-
73090375 ASM., ARMATUREASM., ARMATURE
-
83090368 ASM., FRONT BRACKET (INCL. 9)ASM., FRONT BRACKET (INCL. 9)
-
93090367 O-RINGO-RING
-
103090372 ASM., BOLT SET (INCL. 4)ASM., BOLT SET (INCL. 4)
-
113090327 ASM., GEAR SHAFT (INCL. 14-17)ASM., GEAR SHAFT (INCL. 14-17)
-
123090369 RING, SQUARERING, SQUARE
-
133240134 WASHERWASHER
-
143084412 CLIPCLIP
-
153084411 SPRING, WEIGHTSPRING, WEIGHT
-
163084410 SPRING, RETURNSPRING, RETURN
-
173084409 CLIPCLIP
-
183083856 NUT, FLANGENUT, FLANGE
-
213090370 WASHERWASHER
