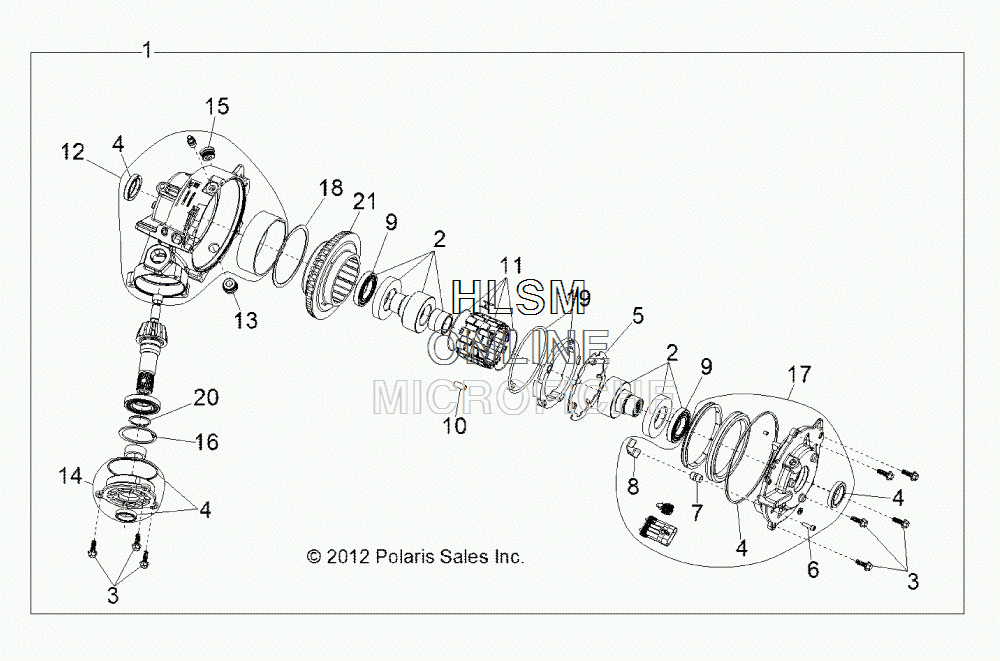

FRONT GEARCASE INTERNALS для Polaris RANGER 800 CREW [R14WH76AA] - SAGE BRUSH GREEN - 2014 года выпуска
-
№АртикулНазвание
-
11333066 ASM., FRONT GEARCASEASM., FRONT GEARCASE
-
23234936 KIT, OUTPUT HUBKIT, OUTPUT HUB
-
33234405 KIT, BOLTKIT, BOLT
-
43235330 KIT, SEAL REPAIRKIT, SEAL REPAIR
-
53234407 PLATE, ARMATUREPLATE, ARMATURE
-
63234408 SET, SCREWSET, SCREW
-
73234594 ASM., THRUST BUTTONASM., THRUST BUTTON
-
83235183 PLATE, THRUSTPLATE, THRUST
-
93234390 BEARINGBEARING
-
103234393 KIT, ROLLKIT, ROLL
-
113235261 ASM., ROLL CAGEASM., ROLL CAGE
-
123235430 ASM., GEARCASEASM., GEARCASE
-
133234412 ASM., DRAIN PLUG, MAGNETICASM., DRAIN PLUG, MAGNETIC
-
143235337 COVER, INPUTCOVER, INPUT
-
153234414 PLUG, OIL FILLPLUG, OIL FILL
-
163234416 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
173235162 ASM., OUTPUT COVERASM., OUTPUT COVER
-
183234437 SPACER, RENG GEARSPACER, RENG GEAR
-
193234908 KIT, SPRINGKIT, SPRING
-
203235177 RING, RETAININGRING, RETAINING
-
213235188 ASM., RING AND PINION GEARASM., RING AND PINION GEAR
