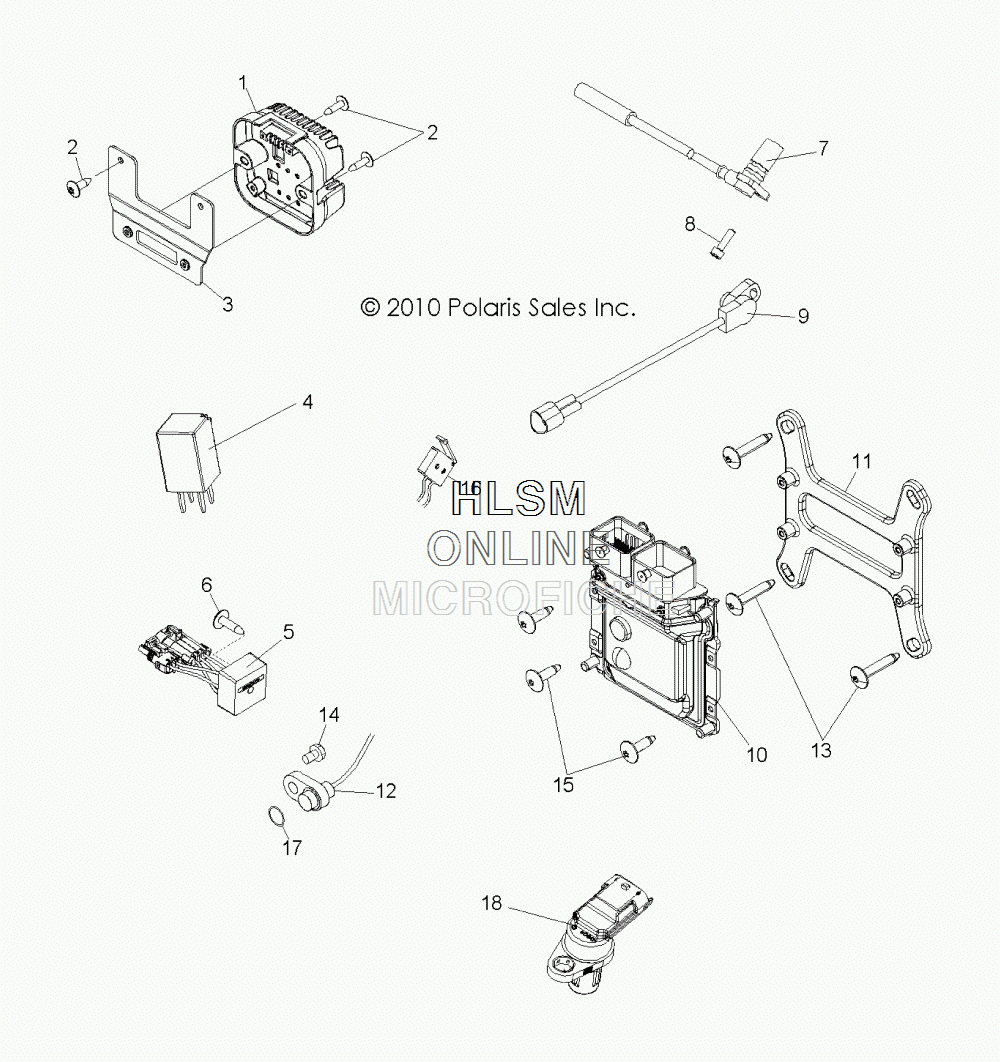

REGULATOR- RELAYS- SENSORS AND ECU для Polaris RANGER 800 CREW [R14WH76AA] - SAGE BRUSH GREEN - 2014 года выпуска
-
№АртикулНазвание
-
14012941 REGULATORREGULATOR
-
27517685 SCREWSCREW
-
35254622-329 BRACKET, MOUNT, REGULATOR, BLACKBRACKET, MOUNT, REGULATOR, BLACK
-
44011283 RELAY, SEALEDRELAY, SEALED
-
54012829 RELAY, SOLID STATE (DIFFERENTIAL CONTROL)RELAY, SOLID STATE (DIFFERENTIAL CONTROL)
-
67518375 SCREWSCREW
-
72410720 SENSOR, CRANK POSITIONSENSOR, CRANK POSITION
-
87519224 SCREWSCREW
-
93131705 ASM., SENSOR, TPSASM., SENSOR, TPS
-
104012838 ECUECU
-
115438369-070 MOUNT, MID, ECU, BLACKMOUNT, MID, ECU, BLACK
-
124012167 SENSOR, SPEED (INCLUDED W/MAIN GEARCASE)SENSOR, SPEED (INCLUDED W/MAIN GEARCASE)
-
137519290 SCREWSCREW
-
143234247 SCREWSCREW
-
157512026 SCREWSCREW
-
161911443 SWITCH, PARK BRAKE, SERVICESWITCH, PARK BRAKE, SERVICE
-
173234302 O-RING (INCLUDED W/MAIN GEARCASE)O-RING (INCLUDED W/MAIN GEARCASE)
-
182410835 SENSOR, PHASESENSOR, PHASE
-
187519329 SCREWSCREW
