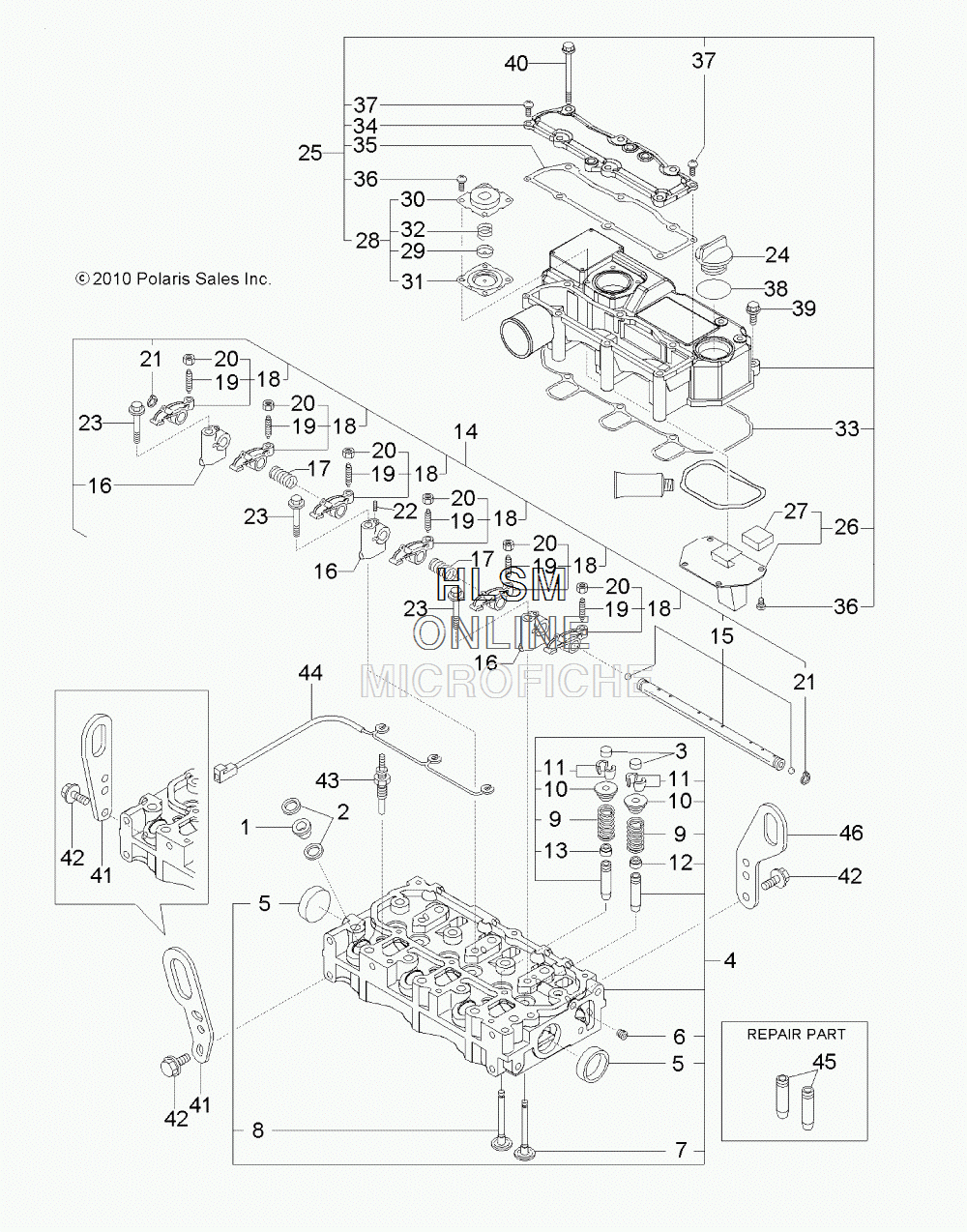

CYLINDER HEAD AND BONNET для Polaris RANGER 900 DIESEL [R14TH90DG] - SAGE BRUSH METALLIC - 2014 года выпуска
-
№АртикулНазвание
-
13070039 PROTECTOR, NOZZLEPROTECTOR, NOZZLE
-
23070040 GASKET, NOZZLEGASKET, NOZZLE
-
33070041 CAP, VALVECAP, VALVE
-
43070042 ASM., CYLINDER HEAD (INCL. 15-22)ASM., CYLINDER HEAD (INCL. 15-22)
-
53070043 PLUGPLUG
-
63070011 PLUGPLUG
-
73070044 VALVE, INTAKEVALVE, INTAKE
-
83070045 VALVE, EXHAUST (INCL. 19,20)VALVE, EXHAUST (INCL. 19,20)
-
93070046 SPRING, VALVESPRING, VALVE
-
103070047 RETAINER, SPRINGRETAINER, SPRING
-
113070048 COTTERCOTTER
-
123070049 SEAL, VALVE STEMSEAL, VALVE STEM
-
133070050 SEAL, VALVE STEMSEAL, VALVE STEM
-
143070051 ASM., ARM SUPPORTASM., ARM SUPPORT
-
153070052 ASM., ROCKER SHAFT (INCL. 26-37)ASM., ROCKER SHAFT (INCL. 26-37)
-
163070053 SHAFT, ROCKER ARM (QTY. 1 OF 27)SHAFT, ROCKER ARM (QTY. 1 OF 27)
-
173070054 SPRING, SHAFTSPRING, SHAFT
-
183070055 ASM., ROCKER ARM (INCL. 29-32)ASM., ROCKER ARM (INCL. 29-32)
-
193070056 SCREW, VALVE ADJUSTSCREW, VALVE ADJUST
-
203070057 NUTNUT
-
213070058 CIRCLIPCIRCLIP
-
223070059 SCREWSCREW
-
233070060 BOLTBOLT
-
243070061 COVER, FILLERCOVER, FILLER
-
253070062 ASM., HEAD, BONNET (INCL. 26-37)ASM., HEAD, BONNET (INCL. 26-37)
-
263070063 PLATE, BAFFLE (QTY. 1 OF 27)PLATE, BAFFLE (QTY. 1 OF 27)
-
273070064 BAFFLE, BREATHERBAFFLE, BREATHER
-
283070066 ASM., DIAPHRAGM (INCL. 29-32)ASM., DIAPHRAGM (INCL. 29-32)
-
293070067 PLATE, CENTERPLATE, CENTER
-
303070068 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
313070069 DIAPHRAGMDIAPHRAGM
-
323070070 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
333070071 GASKET, BONNETGASKET, BONNET
-
343070072 COVER, BONNETCOVER, BONNET
-
353070073 GASKET, BONNET COVERGASKET, BONNET COVER
-
363070074 SCREWSCREW
-
373070076 SCREWSCREW
-
383070077 O-RINGO-RING
-
393070078 BOLTBOLT
-
403070079 BOLTBOLT
-
413070372 LIFTER, ENGINE, REARLIFTER, ENGINE, REAR
-
423070080 BOLTBOLT
-
433070081 PLUG, GLOWPLUG, GLOW
-
443070082 CONNECTOR, GLOW PLUGCONNECTOR, GLOW PLUG
-
453070083 GUIDE, VALVEGUIDE, VALVE
-
463070373 LIFTER, ENGINE, FRONTLIFTER, ENGINE, FRONT
