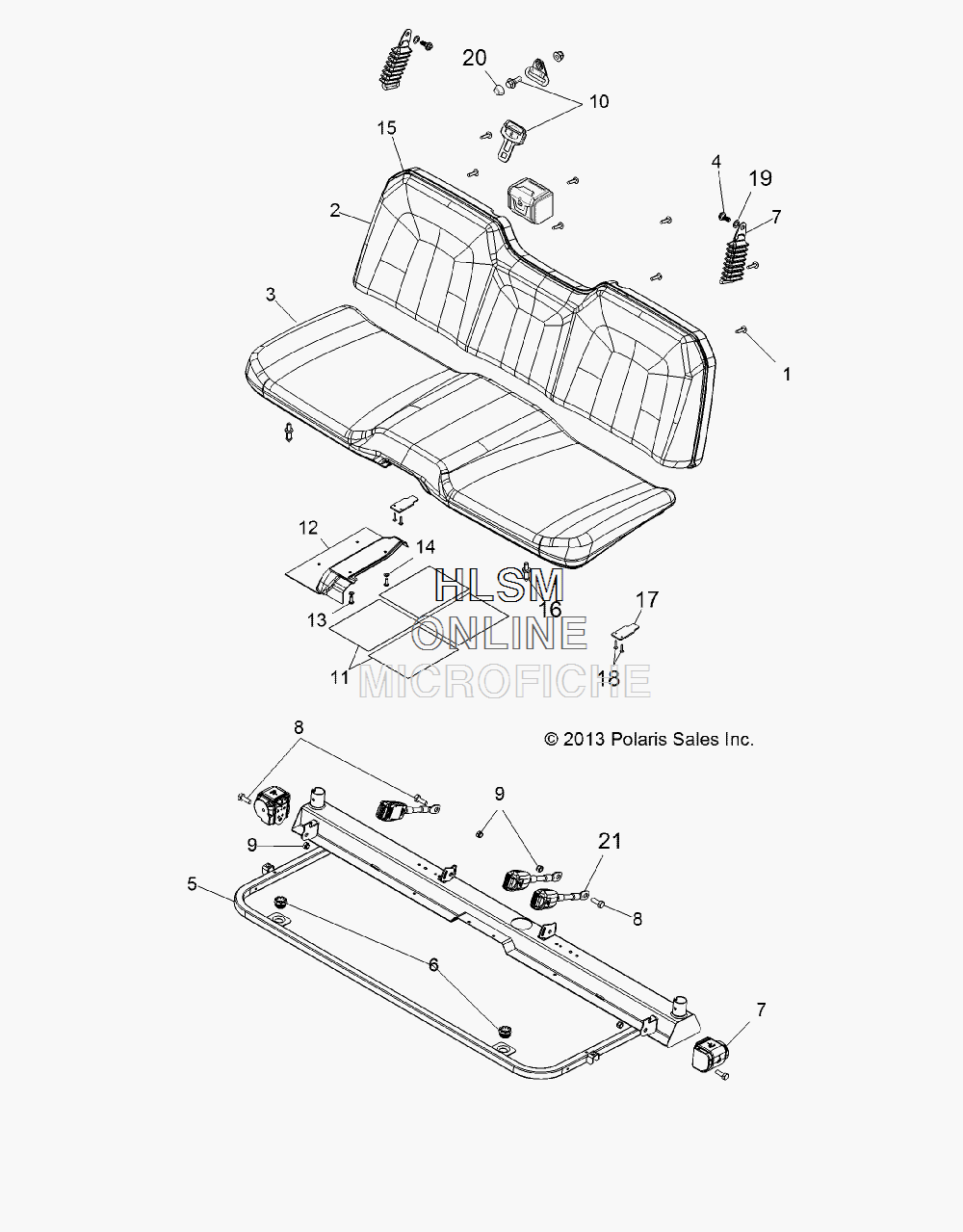

SEAT AND BASE для Polaris RANGER 900 DIESEL [R14TH90DG] - SAGE BRUSH METALLIC - 2014 года выпуска
-
№АртикулНазвание
-
17519274 SCREWSCREW
-
22684885-070 ASM., SEAT, BACK, BLACKASM., SEAT, BACK, BLACK
-
32684884-070 ASM., SEAT, BOTTOM, BLACK (INCL. 11,16-18)ASM., SEAT, BOTTOM, BLACK (INCL. 11,16-18)
-
47519255 BOLT, SHOULDERBOLT, SHOULDER
-
51019938-458 BASE, CAB/SEAT, MATTE BLACKBASE, CAB/SEAT, MATTE BLACK
-
65412507 GROMMETGROMMET
-
72635049 ASM., SEAT BELT, 3 POINTASM., SEAT BELT, 3 POINT
-
87519730 SCREWSCREW
-
97547441 NUT, NYLONNUT, NYLON
-
102635051 ASM., SEAT BELT, 3 POINT, CENTERASM., SEAT BELT, 3 POINT, CENTER
-
115812295 FOIL, SEATFOIL, SEAT
-
125813738 SHIELD, SEAT BASESHIELD, SEAT BASE
-
137555859 WASHER, FLATWASHER, FLAT
-
147519290 SCREWSCREW
-
155450902-070 COVER, SEAT BACK, BLACKCOVER, SEAT BACK, BLACK
-
165632536 PIN, SEAT LATCHPIN, SEAT LATCH
-
175437903 TAB, MOUNT, SEATTAB, MOUNT, SEAT
-
187621479 RIVETRIVET
-
195813829 WASHER, SEATBELT, RUBBERWASHER, SEATBELT, RUBBER
-
205450708 CAP, BOLT HEADCAP, BOLT HEAD
-
212635104 BUCKLE, SEAT BELT, CABLEBUCKLE, SEAT BELT, CABLE
