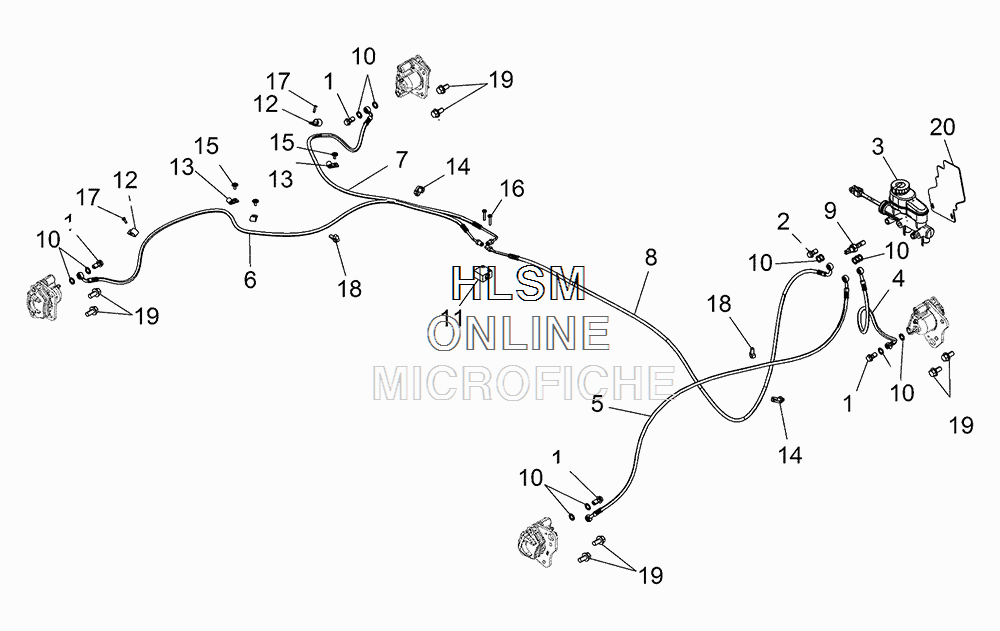

MASTER CYLINDER AND BRAKE LINES для Polaris RANGER 570 (POLARIS PURSUIT CAMO) [RMA57A9] - 2016 года выпуска
-
№АртикулНазвание
-
11910499 BOLT, BANJOBOLT, BANJO
-
21910958 BOLT, BANJOBOLT, BANJO
-
31911515 ASM., MASTER CYLINDERASM., MASTER CYLINDER
-
41912283 LINE, BRAKE, FRONT LEFT, 22.25LINE, BRAKE, FRONT LEFT, 22.25
-
51912284 LINE, BRAKE, FRONT, RIGHT, 36 INCHLINE, BRAKE, FRONT, RIGHT, 36 INCH
-
61912104 LINE, BRAKE, REAR, RIGHT, 52 INCHLINE, BRAKE, REAR, RIGHT, 52 INCH
-
71912105 LINE, BRAKE, REAR, LEFT, 39 INCHLINE, BRAKE, REAR, LEFT, 39 INCH
-
81912285 LINE, BRAKELINE, BRAKE
-
94014262 SWITCH, BRAKE, DOUBLE, SEALEDSWITCH, BRAKE, DOUBLE, SEALED
-
105413212 SEALSEAL
-
117052293 FITTING, TEE, BRAKEFITTING, TEE, BRAKE
-
127080499 CLAMP, CABLECLAMP, CABLE
-
137080683 CLAMP, HOSECLAMP, HOSE
-
147081496 CLIP, ROUTINGCLIP, ROUTING
-
157512084 SCREWSCREW
-
167518552 SCREWSCREW
-
177621323 RIVETRIVET
-
187670102 CLIPCLIP
-
197518558 BOLT, FLANGEBOLT, FLANGE
-
205258202 SHIELD, MASTER CYLINDERSHIELD, MASTER CYLINDER
