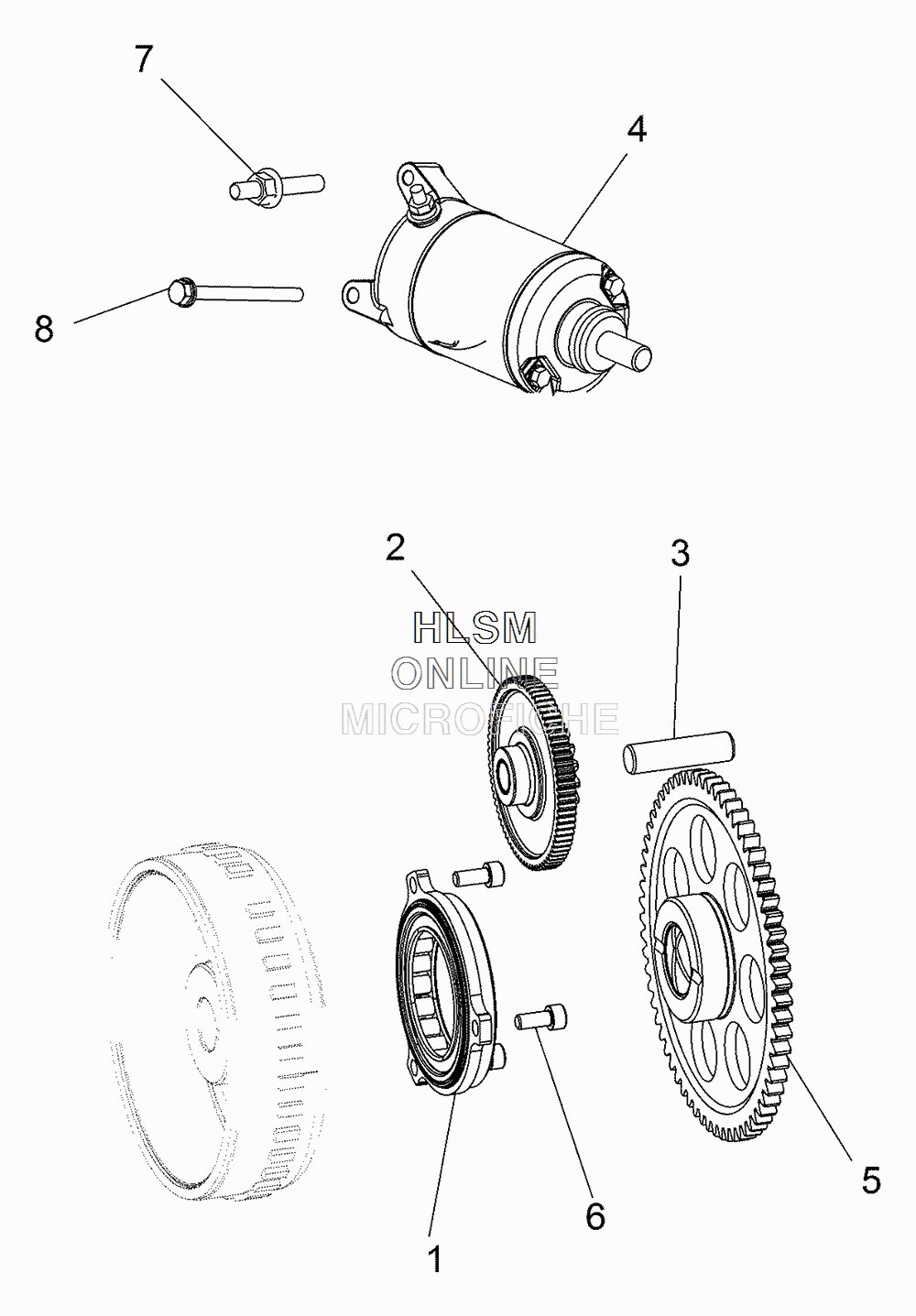

STARTER DRIVE для Polaris RANGER 570 (POLARIS PURSUIT CAMO) [RMA57A9] - 2016 года выпуска
-
№АртикулНазвание
-
11204884 ASM., SPRAG CLUTCH, HUB, STARTERASM., SPRAG CLUTCH, HUB, STARTER
-
21204683 ASM., GEAR, STARTERASM., GEAR, STARTER
-
33022500 PIN, SOLID, STARTER TORQUE LIMIT GEARPIN, SOLID, STARTER TORQUE LIMIT GEAR
-
44014909 STARTER, 1 CYLINDERSTARTER, 1 CYLINDER
-
56230561 GEAR, FREEWHEEL, 1 WAY CLUTCHGEAR, FREEWHEEL, 1 WAY CLUTCH
-
67517431 SCREWSCREW
-
77519237 STUD, DOUBLE, END M6STUD, DOUBLE, END M6
-
87518755 SCREWSCREW
