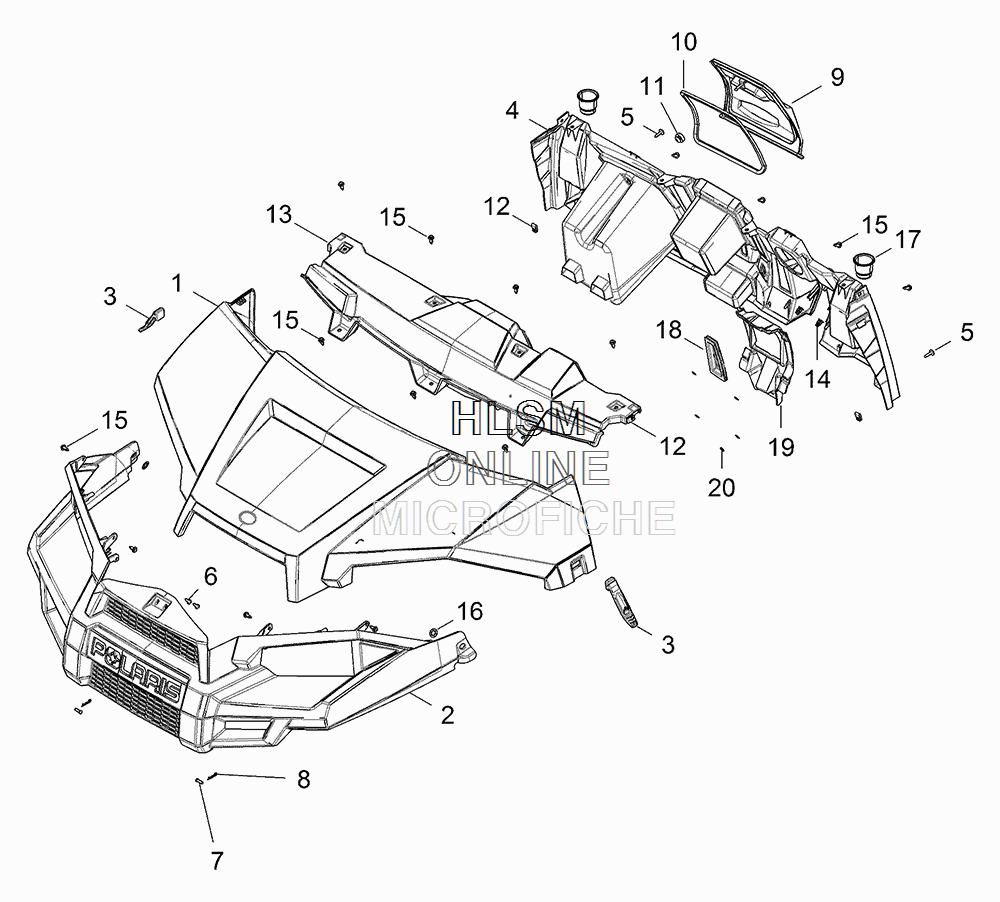

DASH AND GLOVEBOX для Polaris RANGER 570 (SOLAR RED) [RMA57A4] - 2016 года выпуска
-
№АртикулНазвание
-
15451006-342 HOOD-BASIC,SOLAR RED (A4)HOOD-BASIC,SOLAR RED (A4)
-
25451005-070 FASCIA, FRONT, BLACKFASCIA, FRONT, BLACK
-
35415295 STRAP, HOOD RETAINERSTRAP, HOOD RETAINER
-
45451129-070 DASH, PANEL, LOWER, CPI, BLACKDASH, PANEL, LOWER, CPI, BLACK
-
57519650 SCREWSCREW
-
67519045 SCREWSCREW
-
77661843 PIN, CLEVISPIN, CLEVIS
-
87662139 PIN, HITCHPIN, HITCH
-
95451007-070 COVER, GLOVE BOX, BLACKCOVER, GLOVE BOX, BLACK
-
105522052 SEAL, GLOVE BOXSEAL, GLOVE BOX
-
115412504 GROMMET, RUBBER, MOUNTGROMMET, RUBBER, MOUNT
-
127547674 NUTNUT
-
135451009-070 DASH, PANEL, UPPER, BLACKDASH, PANEL, UPPER, BLACK
-
147519806 CLIP, DASH, TRIM, METALCLIP, DASH, TRIM, METAL
-
157661855 RIVETRIVET
-
167710820 NUT, 7/16 PUSHNUTNUT, 7/16 PUSHNUT
-
175436836 HOLDER, CUPHOLDER, CUP
-
185414249 GROMMET, SHIFT LEVERGROMMET, SHIFT LEVER
-
195415087 GROMMET, STEERINGGROMMET, STEERING
-
207670154 RETAINER, BOLTRETAINER, BOLT
