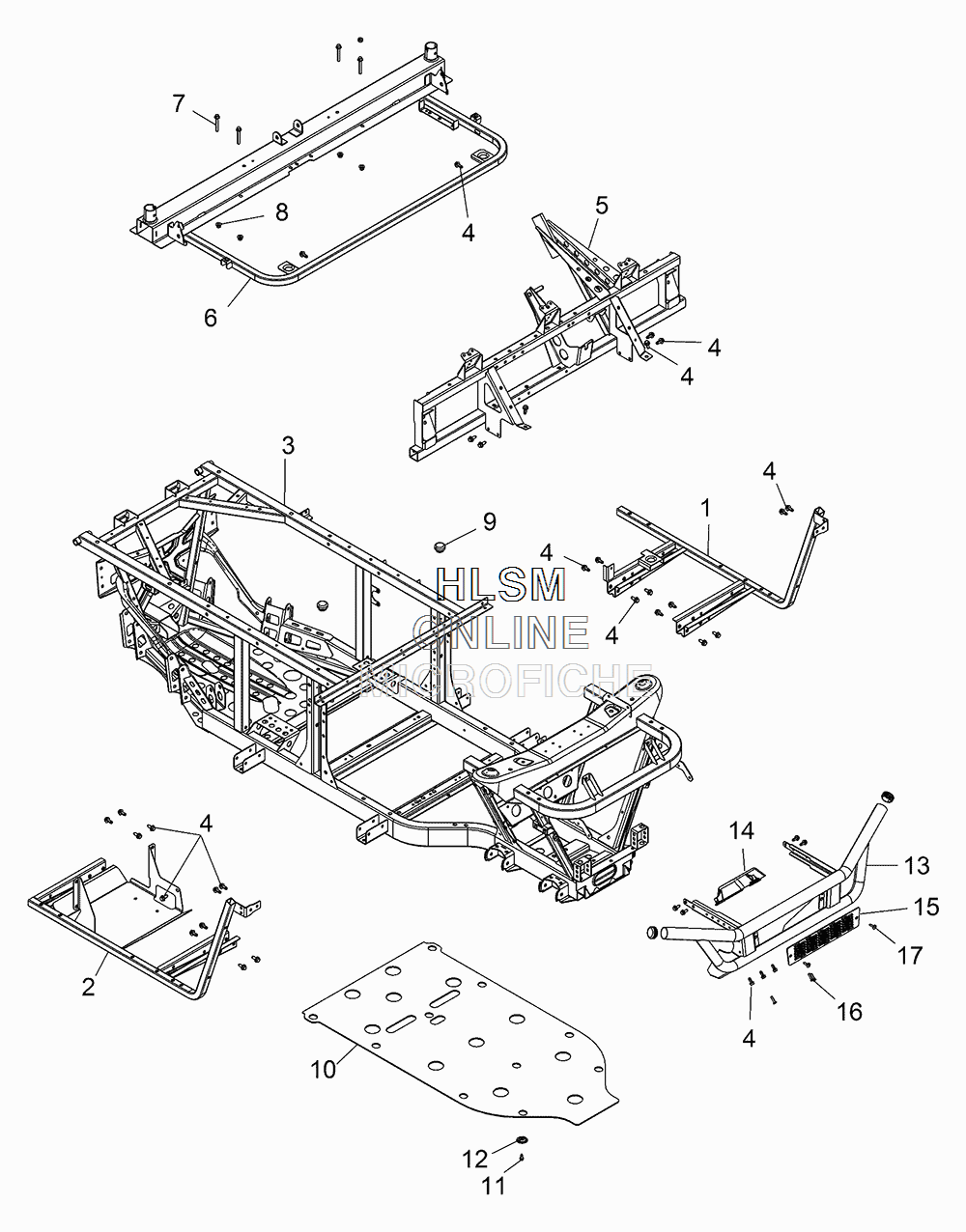

FRAME-MAIN W/ SKID PLATE для Polaris RANGER 570 (SOLAR RED) [RMA57A4] - 2016 года выпуска
-
№АртикулНазвание
-
11020159-329 SUPPORT, FLOOR, LH, BLACKSUPPORT, FLOOR, LH, BLACK
-
21020160-329 SUPPORT, FLOOR, RH, BLACKSUPPORT, FLOOR, RH, BLACK
-
31021394-458 FRAME, MAIN, MATTE BLACKFRAME, MAIN, MATTE BLACK
-
47518555 BOLTBOLT
-
51020151-329 SUPPORT, CAB, FRONT, BLACKSUPPORT, CAB, FRONT, BLACK
-
61021330-458 WELD-SEAT BASE,CAB SUP,EU,MBLACKWELD-SEAT BASE,CAB SUP,EU,MBLACK
-
77517281 SCREWSCREW
-
87547332 NUTNUT
-
95411435 BUMPER, RUBBERBUMPER, RUBBER
-
105450136 PLATE, SKIDPLATE, SKID
-
117517386 SCREWSCREW
-
127556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
131020136-458 BUMPER, MATTE BLACKBUMPER, MATTE BLACK
-
145438181-070 BRACKET, BUMPER, GUARD, BLACKBRACKET, BUMPER, GUARD, BLACK
-
155438240-070 SCREEN, BUMPER, UPPER, BLACKSCREEN, BUMPER, UPPER, BLACK
-
167518158 SCREWSCREW
-
177519650 SCREWSCREW
-
5434191 CAP-BUMPERCAP-BUMPER
