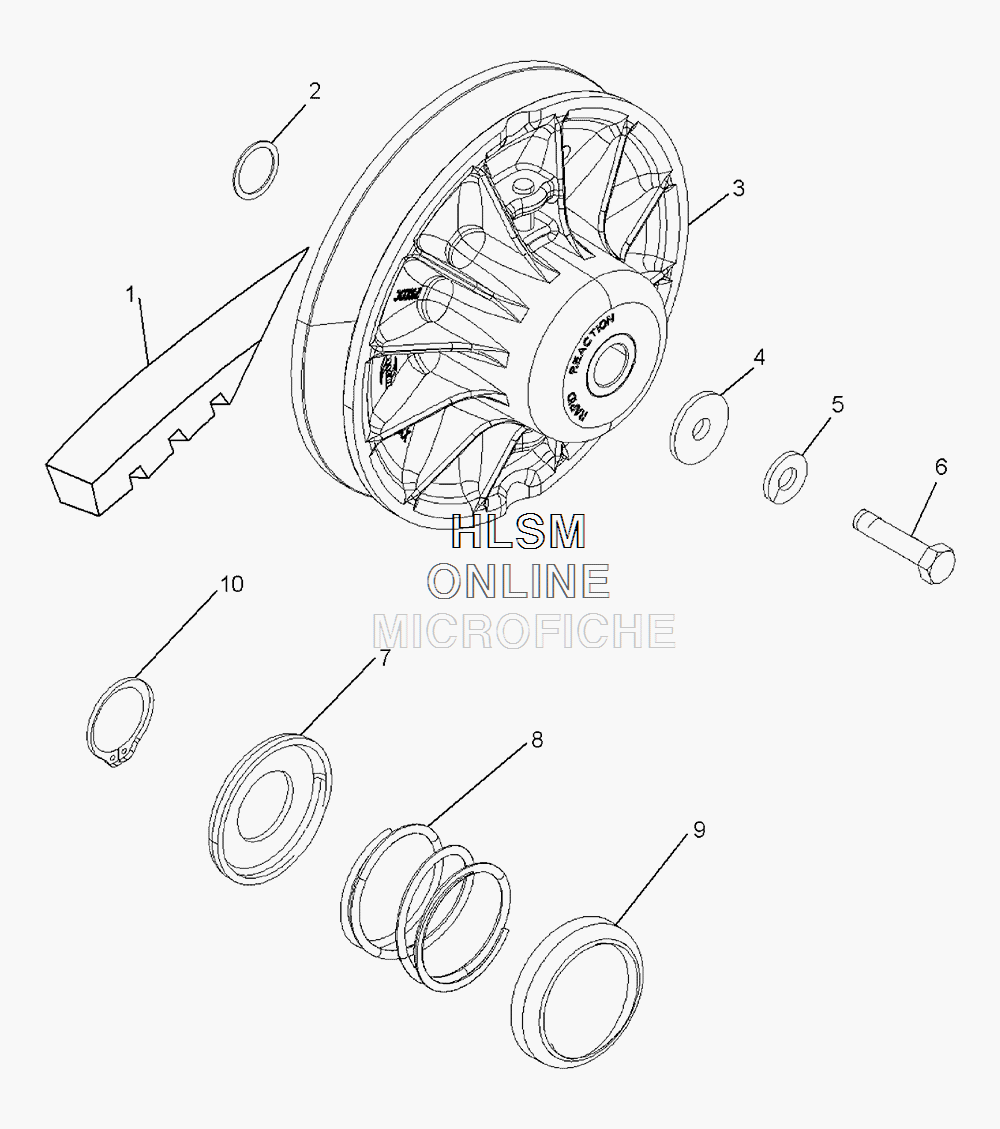

CLUTCH- SECONDARY для Polaris RANGER 6X6 (SAGE GREEN) [R16RAA76AA] - 2016 года выпуска
-
№АртикулНазвание
-
13211162 BELT, DRIVEBELT, DRIVE
-
27556120 BUSHING (.03 INCH)BUSHING (.03 INCH)
-
27556454 WASHER (.06 INCH)WASHER (.06 INCH)
-
31322848 ASM., DRIVEN CLUTCH (INCL. 7-10)ASM., DRIVEN CLUTCH (INCL. 7-10)
-
45220646 WASHER, DOMEDWASHER, DOMED
-
57552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
67515382 BOLTBOLT
-
77710563 RETAINER, SPRING, OUTERRETAINER, SPRING, OUTER
-
87043167 SPRING, COMPRESSION, BLACK/ALMONDSPRING, COMPRESSION, BLACK/ALMOND
-
93234616 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
107710522 RING, RETAININGRING, RETAINING
Все узлы модели:
- AIR INTAKE
- AIR INTAKE SYSTEM W/CLUTCH
- BATTERY W/BRACKET
- BOX ASM.
- BOX SUPPORT W/SHOCK
- CAB FRAME
- CLUTCH COVER
- CLUTCH- PRIMARY
- • CLUTCH- SECONDARY
- CONTROL ARMS - FRONT
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD W/ VALVES
- DASH INSTRUMENTS AND CONTROLS
- DECALS - WARNING
- ENGINE
- ENGINE MOUNTS
- EXHAUST MANIFOLD
- FLOOR AND FENDERS
- FRAME AND FRONT BUMPER
- FRONT CALIPER
- FRONT DRIVE SHAFT
- FRONT GEARCASE
- FRONT GEARCASE INTERNALS
- FRONT PROP SHAFT
- FRONT SHOCK
- FUEL INJECTOR
- FUEL TANK ASM.
- GEAR SELECTOR W/DIFFERENTIAL LOCK
- GLOVE BOX STORAGE
- HEADLIGHTS- TAILLIGHTS AND BULBS
- HOOD LATCH
- HOOD- BUMPER- FENDER- WINCH COVER
- IGNITION SYSTEM
- MAIN GEARCASE
- MAIN GEARCASE INTERNAL
- MAIN GEARCASE OUTPUT SHAFT
- MASTER CYLINDER AND BRAKE LINES
- MASTER CYLINDER MOUNTING AND PEDAL
- MID DRIVESHAFT (6X6)
- MID GEARCASE MOUNTING
- MID GEARGASE (6X6)
- OIL FILTER W/ DIPSTICK
- OIL PUMP AND WATER PUMP
- PARK BRAKE HANDLE ASM.
- PISTON AND CYLINDER
- REAR CALIPER
- REAR CONTROL ARMS
- REAR DRIVE SHAFT
- REAR GEARCASE
- REAR GEARCASE MOUNTING
- REAR PROP SHAFT
- REAR STABILIZER BAR
- REAR WHEEL
- REGULATOR- RELAYS- SENSORS AND ECU
- SEAT AND BASE
- SIDE NETS
- STARTING MOTOR
- STATOR AND FLYWHEEL
- STEERING ASM.
- STORAGE BOX- REAR
- TAILGATE ASM.
- THERMOSTAT
- THROTTLE AND VALVE COVER
- THROTTLE PEDAL W/CABLE
- TOOL KIT AND OWNERS MANUALS
- WHEELS - FRONT
- WIRE HARNESSES
