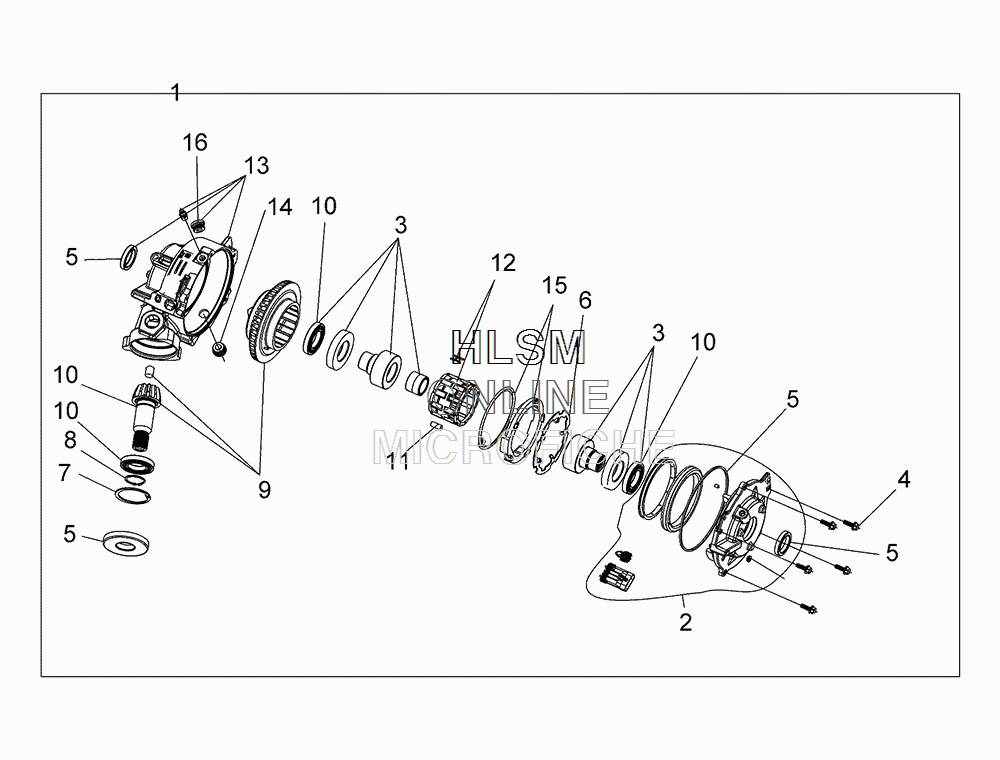

FRONT GEARCASE INTERNALS для Polaris RANGER 6X6 (SAGE GREEN) [R16RAA76AA] - 2016 года выпуска
-
№АртикулНазвание
-
11333393 ASM., FRONT GEARCASE (INCL. ALL)ASM., FRONT GEARCASE (INCL. ALL)
-
23235162 ASM., COVER, OUTPUT (INCL. CONNECTOR ASM., OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING)ASM., COVER, OUTPUT (INCL. CONNECTOR ASM., OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING)
-
33234936 KIT, OUTPUT HUB (INCL. HUB ASM, FEMALE, HUB ASM. MALE)KIT, OUTPUT HUB (INCL. HUB ASM, FEMALE, HUB ASM. MALE)
-
43235469 KIT, BOLT (INCL. SCREWS)KIT, BOLT (INCL. SCREWS)
-
53235470 KIT, SEAL REPAIR (INCL. ALL SEALS)KIT, SEAL REPAIR (INCL. ALL SEALS)
-
63235485 PLATE, ARMATURE (NOT FOR SALE)PLATE, ARMATURE (NOT FOR SALE)
-
93235188 ASM., RING AND PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)ASM., RING AND PINION GEAR (INCL. RING GEAR SUB ASM., PINION GEAR, DOWEL PIN)
-
103234390 BEARINGBEARING
-
113235624 KIT, ROLL (INCL. COMPLETE SET OF ROLLERS)KIT, ROLL (INCL. COMPLETE SET OF ROLLERS)
-
123235625 ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)ASM., ROLL CAGE (INCL. CAGE AND COMPLETE SET OF CLIPS)
-
133235728 ASM., GEARCASE (INCL. GEARCASE, BUSHING, GEARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)ASM., GEARCASE (INCL. GEARCASE, BUSHING, GEARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL)
-
143234412 ASM., DRAIN PLUG, MAGNETICASM., DRAIN PLUG, MAGNETIC
-
153235712 KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)KIT, SPRING (INCL. SPRING RETAINER, TORSION SPRING)
-
163234414 PLUG, OIL FILLPLUG, OIL FILL
-
163234416 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
173235162 ASM., OUTPUT COVER (NOT SHOWN)ASM., OUTPUT COVER (NOT SHOWN)
-
183234437 SPACER, RING GEAR (NOT SHOWN)SPACER, RING GEAR (NOT SHOWN)
