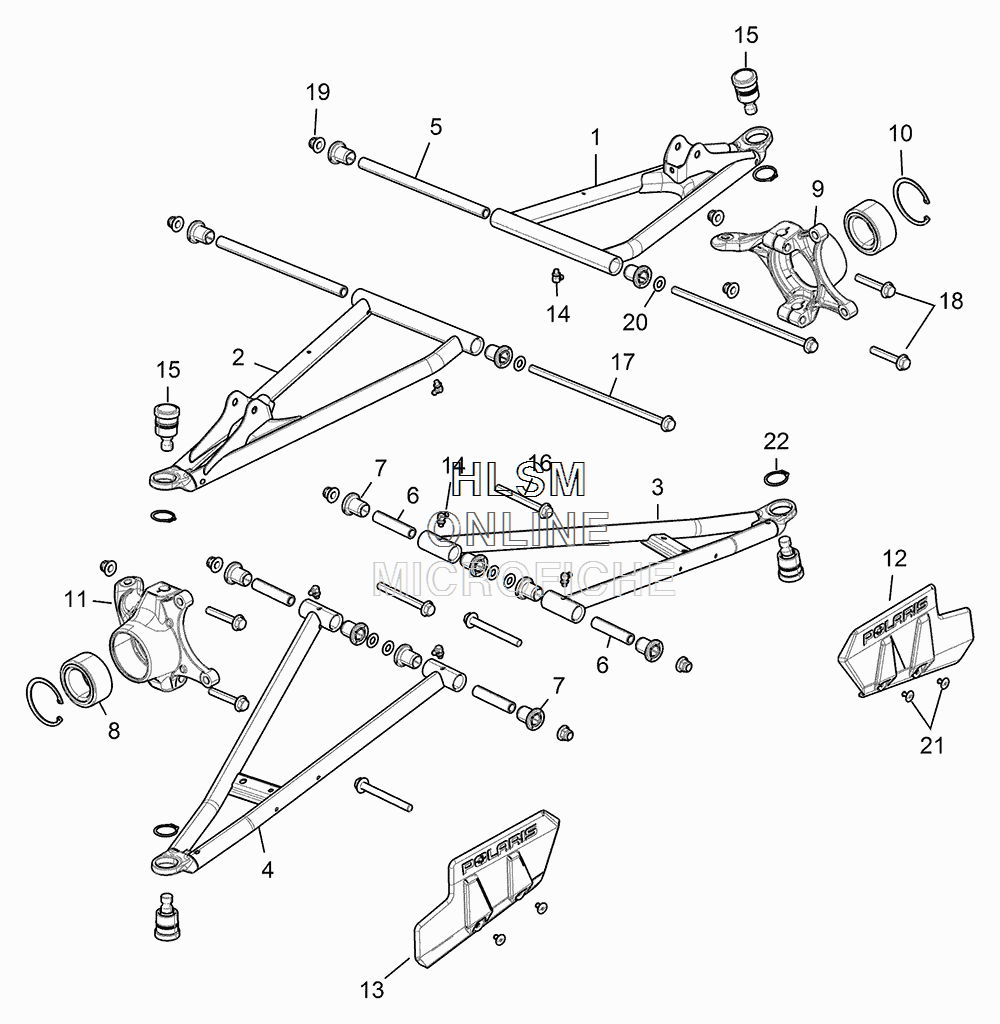

CONTROL ARMS - FRONT для Polaris RANGER CREW 900-5 EPS (TITANIUM MATTE METALLIC) [R16RUE87AM] - 2016 года выпуска
-
№АртикулНазвание
-
11020887-133 A-ARM, FRONT, UPPER (LEFT HAND) (WHITE) - (E87AM)A-ARM, FRONT, UPPER (LEFT HAND) (WHITE) - (E87AM)
-
21020888-133 A-ARM, FRONT, UPPER (RIGHT HAND) (WHITE) - (E87AM)A-ARM, FRONT, UPPER (RIGHT HAND) (WHITE) - (E87AM)
-
31019668-133 A-ARM, FRONT, LOWER (LEFT HAND) (WHITE) - (E87AM)A-ARM, FRONT, LOWER (LEFT HAND) (WHITE) - (E87AM)
-
41019669-133 A-ARM, FRONT, LOWER (RIGHT HAND) (WHITE) - (E87AM)A-ARM, FRONT, LOWER (RIGHT HAND) (WHITE) - (E87AM)
-
55138791 SHAFT, PIVOT,250.28MM,15.88ODSHAFT, PIVOT,250.28MM,15.88OD
-
65138797 SHAFT, PIVOT,70.99MM,15.88ODSHAFT, PIVOT,70.99MM,15.88OD
-
75439874 BUSHING, STANDARDBUSHING, STANDARD
-
83514699 BEARING, BALL, SEALEDBEARING, BALL, SEALED
-
95139976 CARRIER, BEARING, FRONT (LEFT HAND)CARRIER, BEARING, FRONT (LEFT HAND)
-
107710780 RING, RETAINING, INTERNALRING, RETAINING, INTERNAL
-
115139977 CARRIER, BEARING, FRONT (RIGHT HAND)CARRIER, BEARING, FRONT (RIGHT HAND)
-
125437544-070 SHIELD, CV, FRONT (LEFT HAND) (BLACK)SHIELD, CV, FRONT (LEFT HAND) (BLACK)
-
135437545-070 SHIELD, CV, FRONT (RIGHT HAND) (BLACK)SHIELD, CV, FRONT (RIGHT HAND) (BLACK)
-
147080510 FITTING, ZERK,90 DEGFITTING, ZERK,90 DEG
-
157081991 JOINT, BALLJOINT, BALL
-
167519043 SCREWSCREW
-
177519087 SCREWSCREW
-
187519306 SCREWSCREW
-
197547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
207556153 WASHERWASHER
-
217621472 RIVETRIVET
-
227710533 RING, RETAINER, EXTERNALRING, RETAINER, EXTERNAL
