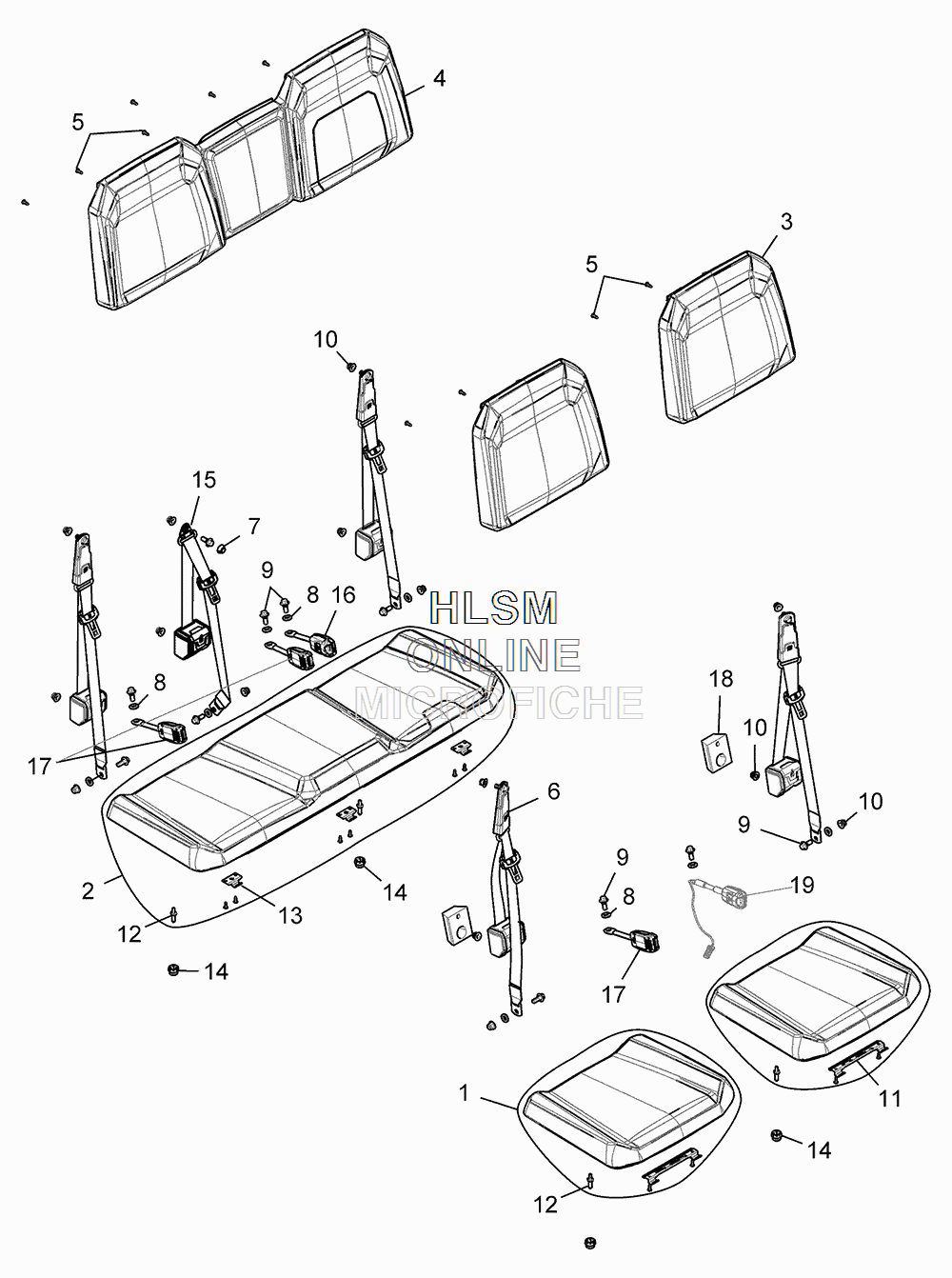

SEAT для Polaris RANGER CREW 900-5 EPS (TITANIUM MATTE METALLIC) [R16RUE87AM] - 2016 года выпуска
-
№АртикулНазвание
-
12684966-070 ASM., SEAT, BOTTOM, 40 (BLACK) (INCL. QTY 4 OF 5, QTY 2 OF 12,11)ASM., SEAT, BOTTOM, 40 (BLACK) (INCL. QTY 4 OF 5, QTY 2 OF 12,11)
-
22685651-070 ASM., SEAT, 3 PASS, BOTTOM (BLACK) (INCL QTY 6 OF 5, QTY 2 OF 12,13)ASM., SEAT, 3 PASS, BOTTOM (BLACK) (INCL QTY 6 OF 5, QTY 2 OF 12,13)
-
32684968-070 ASM., SEAT, BACK, 40 (BLACK)ASM., SEAT, BACK, 40 (BLACK)
-
42685653-070 ASM., SEAT, BACK (BLACK)ASM., SEAT, BACK (BLACK)
-
57519045 SCREWSCREW
-
62635118 ASM., SEAT BELT, 3PTASM., SEAT BELT, 3PT
-
75450708 CAP, BOLT HEADCAP, BOLT HEAD
-
85813829 WASHER, SEATBELT, RUBBERWASHER, SEATBELT, RUBBER
-
97519770 SCREWSCREW
-
107547441 NUTNUT
-
115259065 BRACKET, SEAT HINGE, DOUBLEBRACKET, SEAT HINGE, DOUBLE
-
125910404 PIN, SEAT LATCHPIN, SEAT LATCH
-
135256836 BRACKET, SEAT HINGEBRACKET, SEAT HINGE
-
145439179 GROMMETGROMMET
-
152635052 ASM., SEAT BELT, 3PT, CENTERASM., SEAT BELT, 3PT, CENTER
-
162635223 BUCKLE, SEATBELT, DRIVERBUCKLE, SEATBELT, DRIVER
-
172635235 BUCKLE, SEATBELT, PASSENGERBUCKLE, SEATBELT, PASSENGER
-
185814036 PAD, REAR, SEAT BASEPAD, REAR, SEAT BASE
-
192635609 BUCKLE, SEATBELT, 90, SWITCHBUCKLE, SEATBELT, 90, SWITCH
