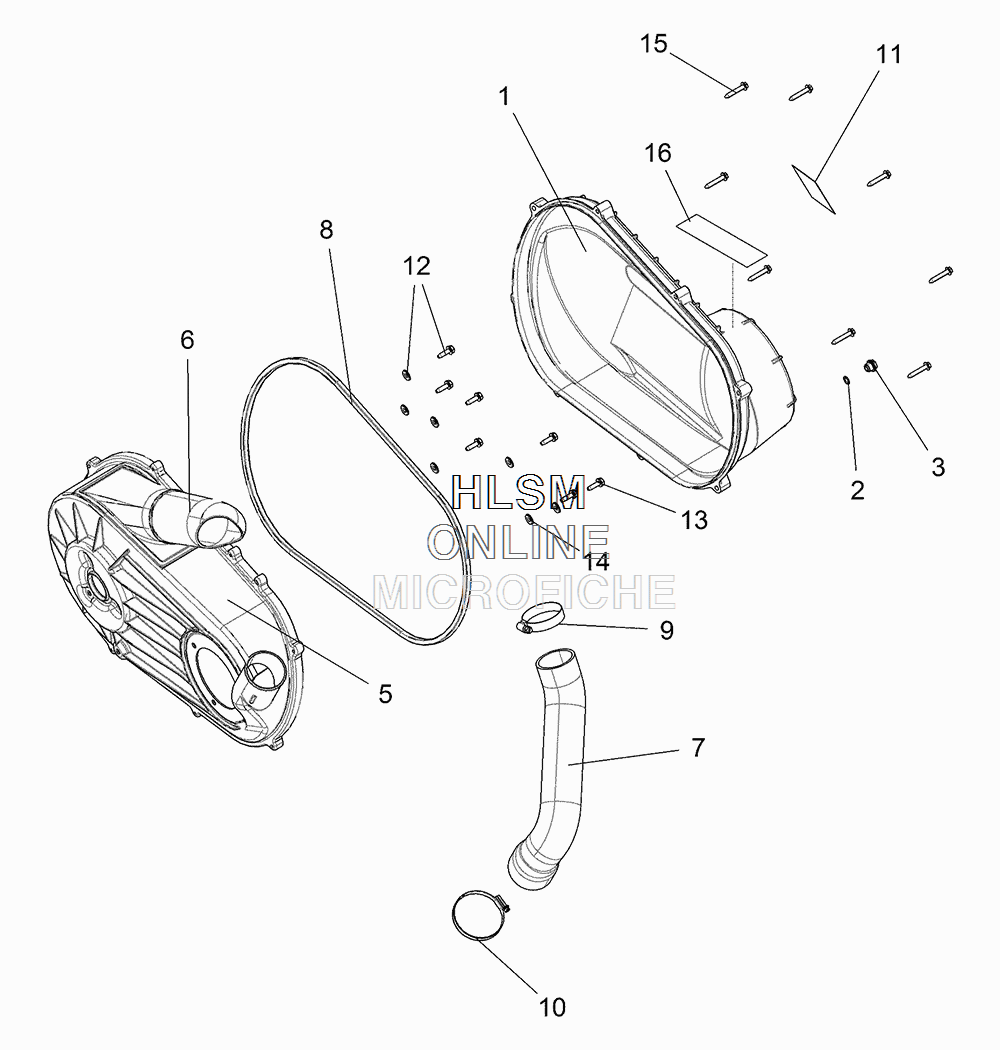

CLUTCH COVER AND DUCTING для Polaris RANGER ETX (WHITE LIGHTNING) [RMA32A2] - 2016 года выпуска
-
№АртикулНазвание
-
12634179 ASM., COVER, CLUTCH, OUTER (INCL. 2,3)ASM., COVER, CLUTCH, OUTER (INCL. 2,3)
-
25410542 O-RINGO-RING
-
35434264 PLUG, DRAINPLUG, DRAIN
-
42634864 ASM., COVER, CLUTCH, INNER (INCL. 5,6)ASM., COVER, CLUTCH, INNER (INCL. 5,6)
-
55450165 COVER, CLUTCH, INNERCOVER, CLUTCH, INNER
-
65450181 DUCT, OUTLETDUCT, OUTLET
-
75415010 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
85521831 SEAL, OUTER, CLUTCH COVERSEAL, OUTER, CLUTCH COVER
-
97080451 CLAMP, HOSECLAMP, HOSE
-
107080707 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
117177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
127519278 ASM., BOLT/WASHER (INCL. 13,14)ASM., BOLT/WASHER (INCL. 13,14)
-
137519279 SCREWSCREW
-
147555748 WASHER, RUBBER BACKWASHER, RUBBER BACK
-
157519330 SCREWSCREW
-
167175488 DECAL-WARN,CLUTCH COVERDECAL-WARN,CLUTCH COVER
